Reference Manual for the ADSL Firewall Router DG834
Virtual Private Networking (Advanced Feature) 7-33
202-10005-05, June 2005

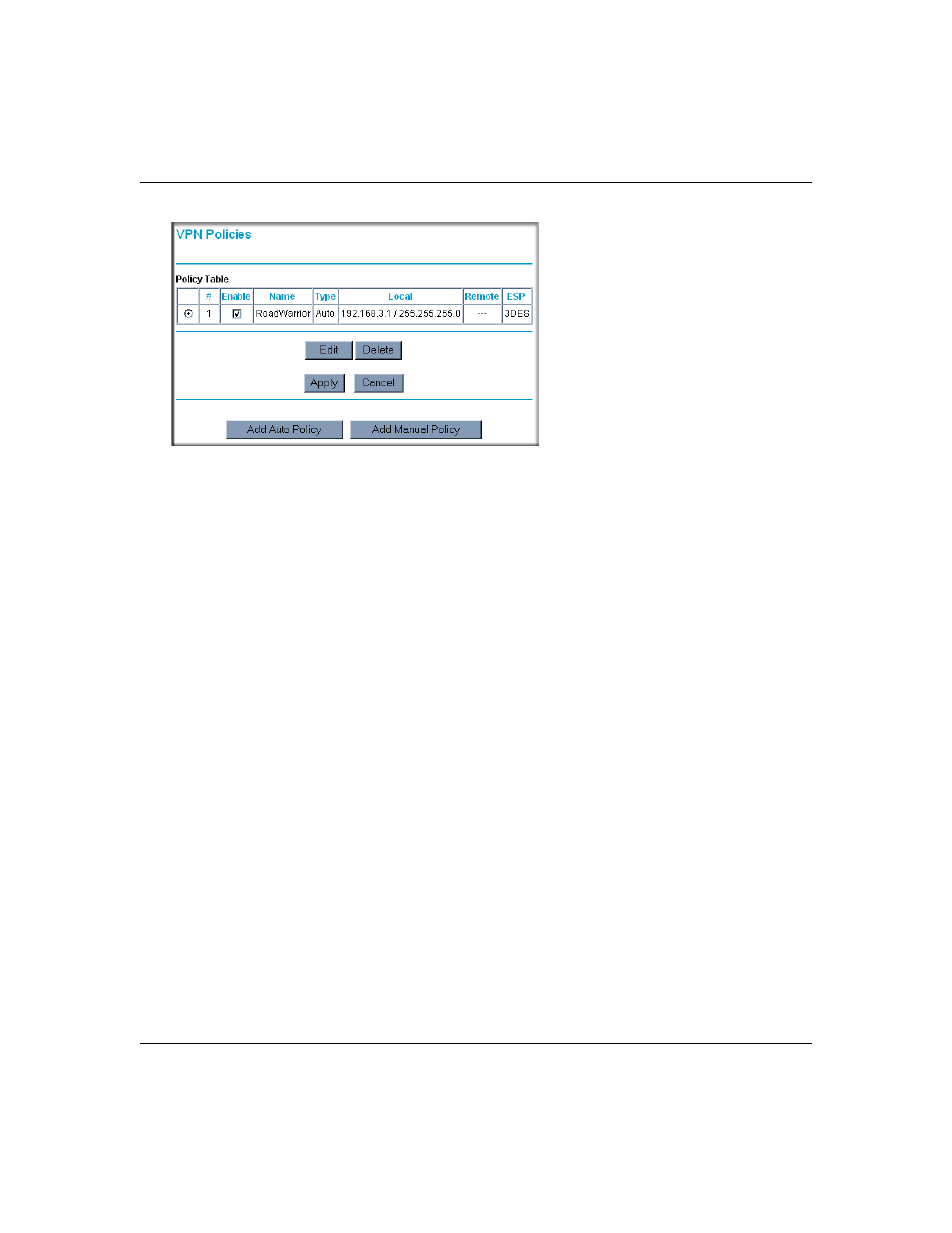

Figure 7-37: VPN Policies
3. Clear the Enable check box for the VPN tunnel you want to deactivate and click Apply. (To
reactivate the tunnel, check the Enable box and click Apply.)
Using the VPN Status Page to Deactivate a VPN Tunnel
To use the VPN Status page to deactivate a VPN tunnel, perform the following steps:
1. Log in to the Router.
2. Open the DG834 management interface and click on VPN Status to get the VPN Status/Log
screen (
Figure 7-38 ).
