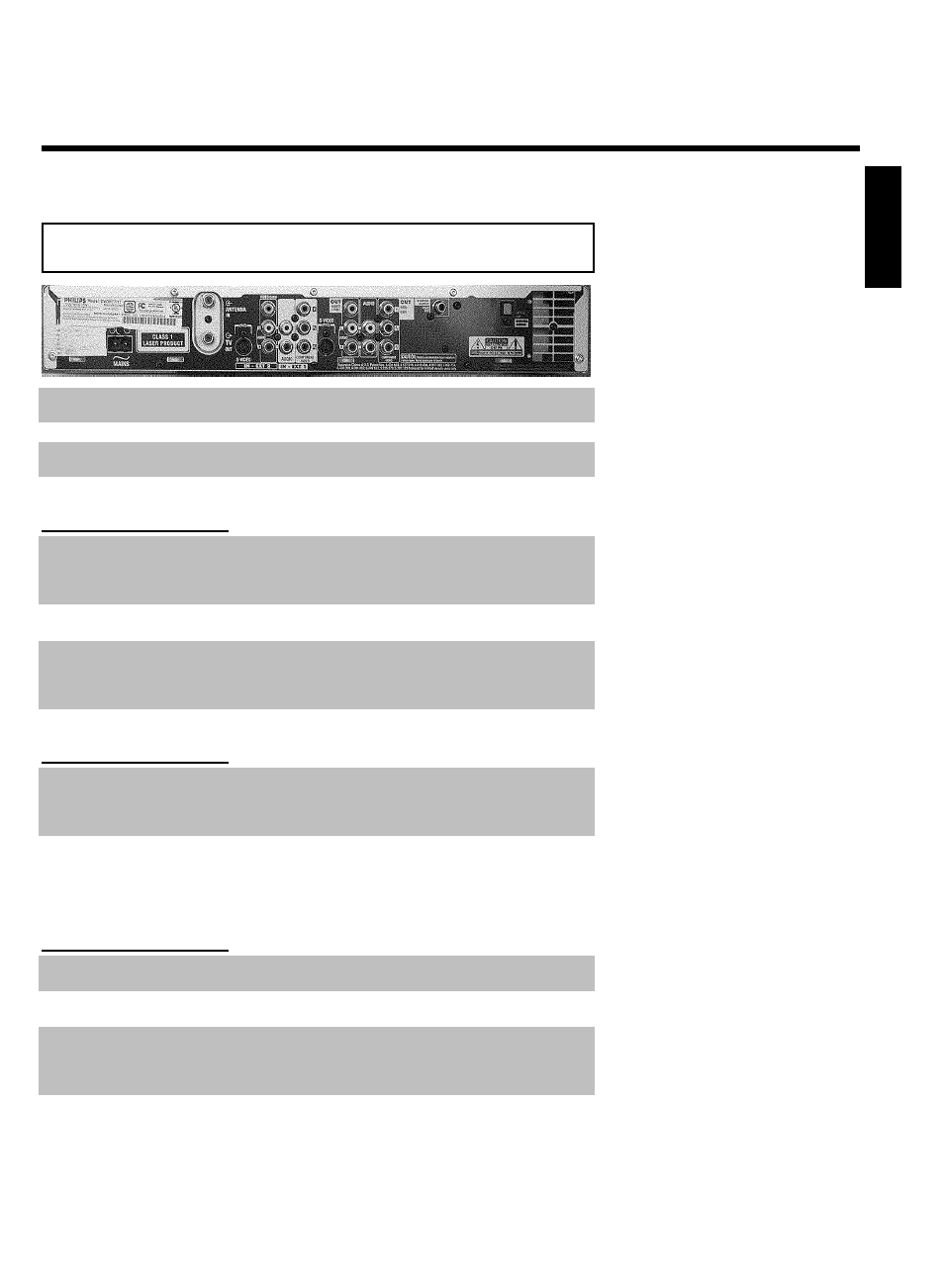

Back ofthe Recorder
4MAINS Power plug: Connection to the power outlet (110V/60Hz)
ANTENNA IN Antenna input: Connect your antenna or Cable TV signal here
TV OUT Antenna output: Connection to the TV
Input jacks (IN EXT2)
S-VIDEO IN S Video input: Connection for an additional device (channel number
'EXT2'). Switching between jack S-VIDEO IN and Video in is done
automatically.
Video in Video input (yellow jack): Connection for an additional device
(channel number 'EXT2')
IN AUDIO L/R Analog audio input (red/white jack) underneath jack Video in .
Audio for jack Video in : Connection for an additional device (channel
number 'EXT2')
Input jacks (IN EXT1)
AUDIO L/R IN Analog audio input (red/white jack) next to jack COMPONENT
VIDEO IN : Connection for an additional device. Audio input for
component video (channel number 'EXT1')
COMPONENT
VIDEO IN
Component video input (red/blue/green jack): Connection for an
additional device with component video output (channel number
'EXT1')
Output jacks (OUT 2)
S-VIDEO OUT S Video output: Connection for a S-video-compatible TV
VIDEO (CVBS)
OUT
Video output (yellow jack): Connection to a TV with video input
(CVBS, Composite Video)
AUDIO L/R OUT Analog audio output (red/white jack) underneath jack Video in .
Audio for jack VIDEO (CVBS) OUT : Connection for an additional
device
