ToS/DiffServ 31
SmartLink M-ATA Getting Started Guide 4 • Network—LAN
cessed. All data leaving the SmartLink M-ATA will be marked with the specific value unless overridden on the
telephony VLAN configuration settings.

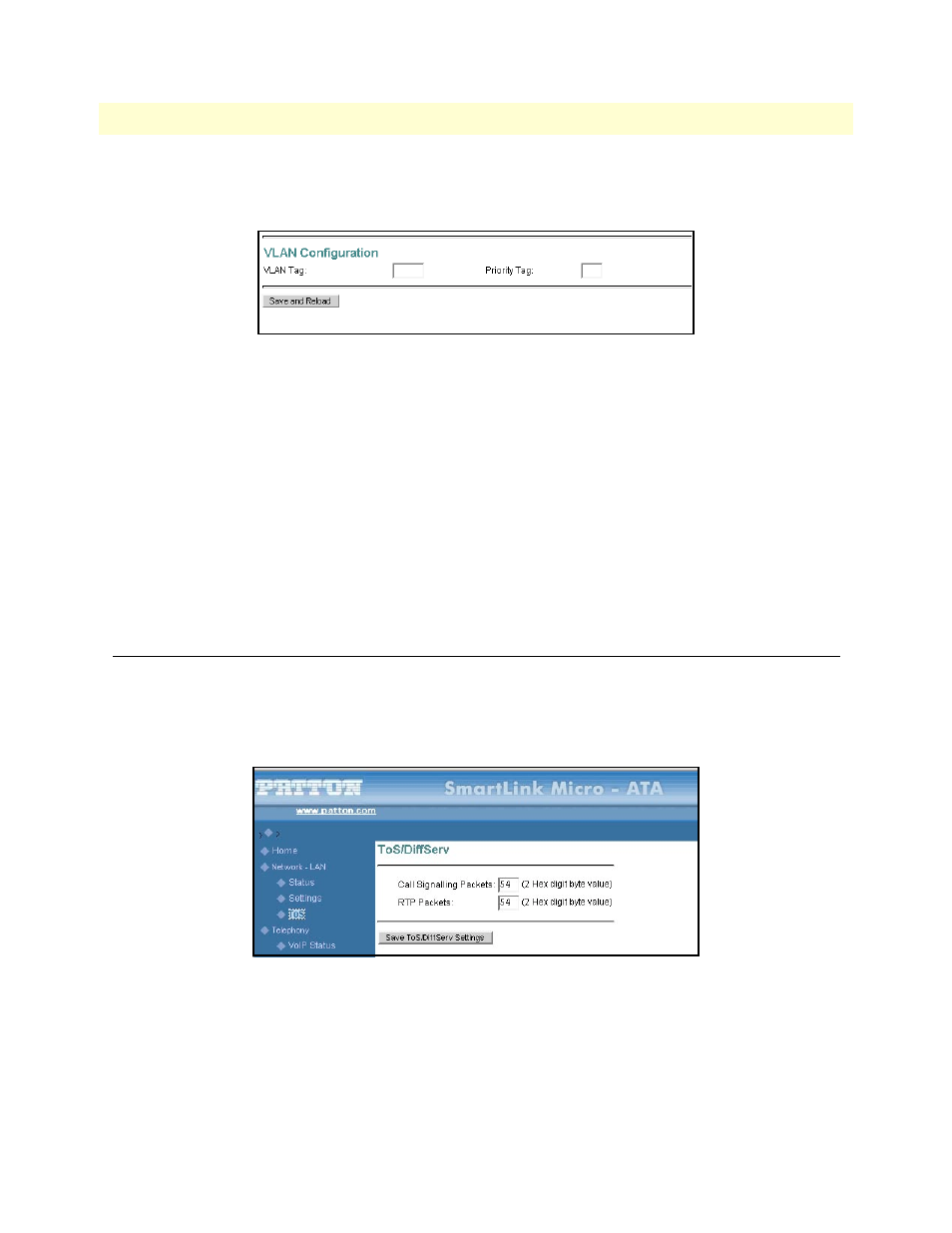

Figure 9. VLAN Configuration section of the Settings window
VLAN Tag (IEEE 802.1q)
IEEE 802.1q Ethernet VLAN tag for all outgoing packets on LAN Ethernet interface. The value should be
between 0 and 4094.
Priority Tag (IEEE 802.1q)
IEEE 802.1q Ethernet Priority tag for all outgoing packets on LAN Ethernet interface. The value should be
between 0 and 7.
Saving your work
When you are finished configuring the VLAN settings, click the Save and Reload button (see figure 9 ) to save
all changes.
ToS/DiffServ
This sub-page is used to configure the Type-of-Service/Diffserv byte values which are to be used in the IP
header of all transmitted SIP signaling packets and RTP packets. The ToS/DiffServ byte values are entered as
two-digit hexadecimal values. If no special ToS/DiffServ value is to be used for a particular traffic type, enter 00
or leave the setting empty.
Figure 10. TOS/DiffServ window
Saving your work
When you are finished configuring ToS/DiffServ settings, click the Save ToS/DiffServ Settings button to save
the changes.
