Page 77

7.11

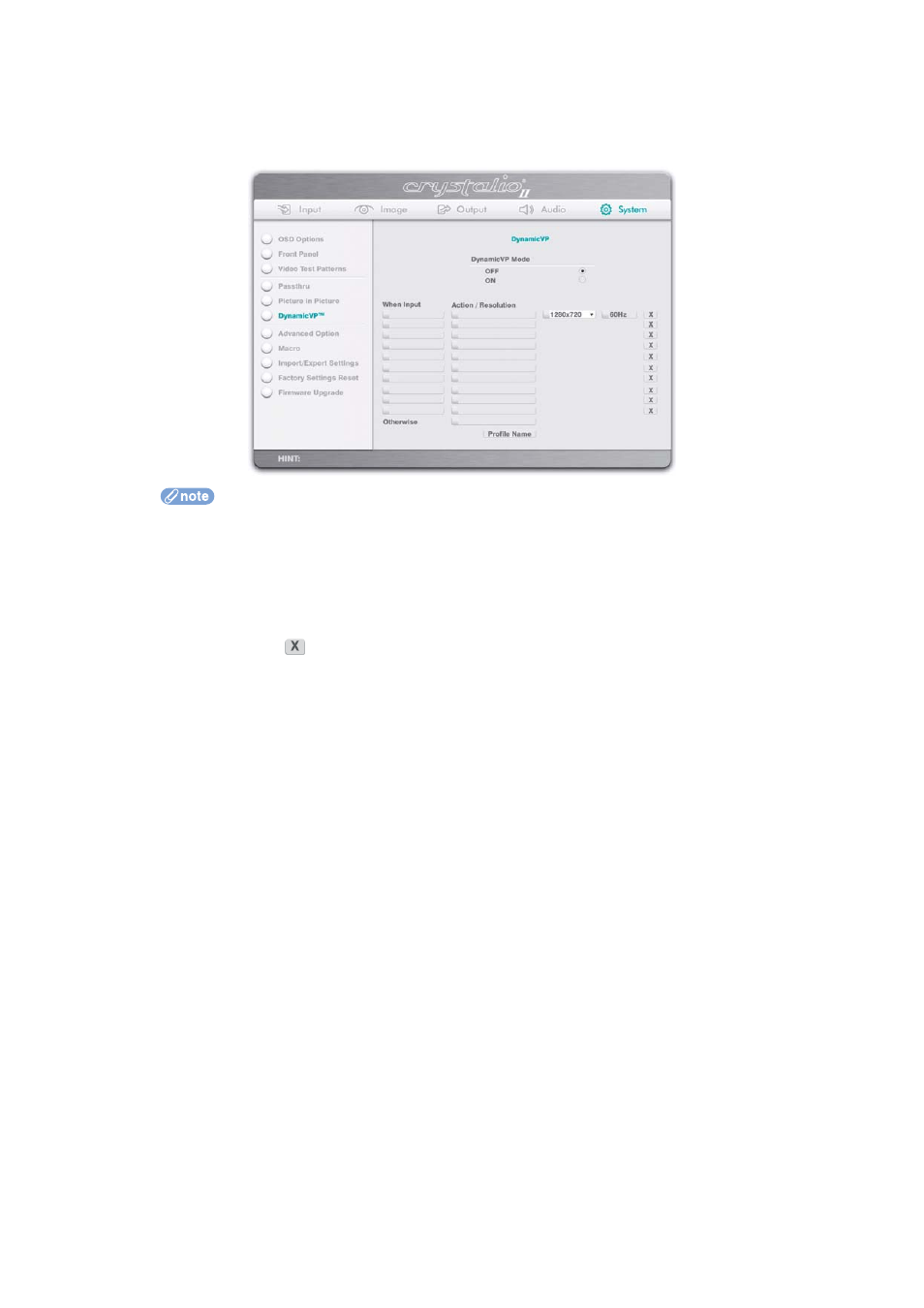

DYNAMICVP

Crystalio II can perform a set of programmed actions according to the video input format. For

example, output resolution can be changed according to the input video frame rate.

• DynamicVP

will take effect only when the DynamicVP Mode is “ON”

• Crystalio II checks the video format under “When Input” one by one. If it matches the

input video format, the action under “Action/Resolution” will be executed or the resolution

will be set as the output resolution

• If there is no match, the “Otherwise” will be executed (if it is defined)

• Checking will be performed only when the input format or input port has been changed

• Press the

action button to delete that “rule”

• When Input dropdown options:

• 50Hz

• 60Hz

• NTSC

• NTSC Film*

• NTSC30 Film*

• NTSC Video*

• PAL

• PAL Film*

• PAL Video*

• 480p

• 576p

• 720p50

• 720p60

• 1080i50

• 1080i50 Film*

• 1080i50 Video*

• 1080i60

• 1080i60 Film*

• 1080i60 Video*

* Available only in firmware version 2.00 or later
