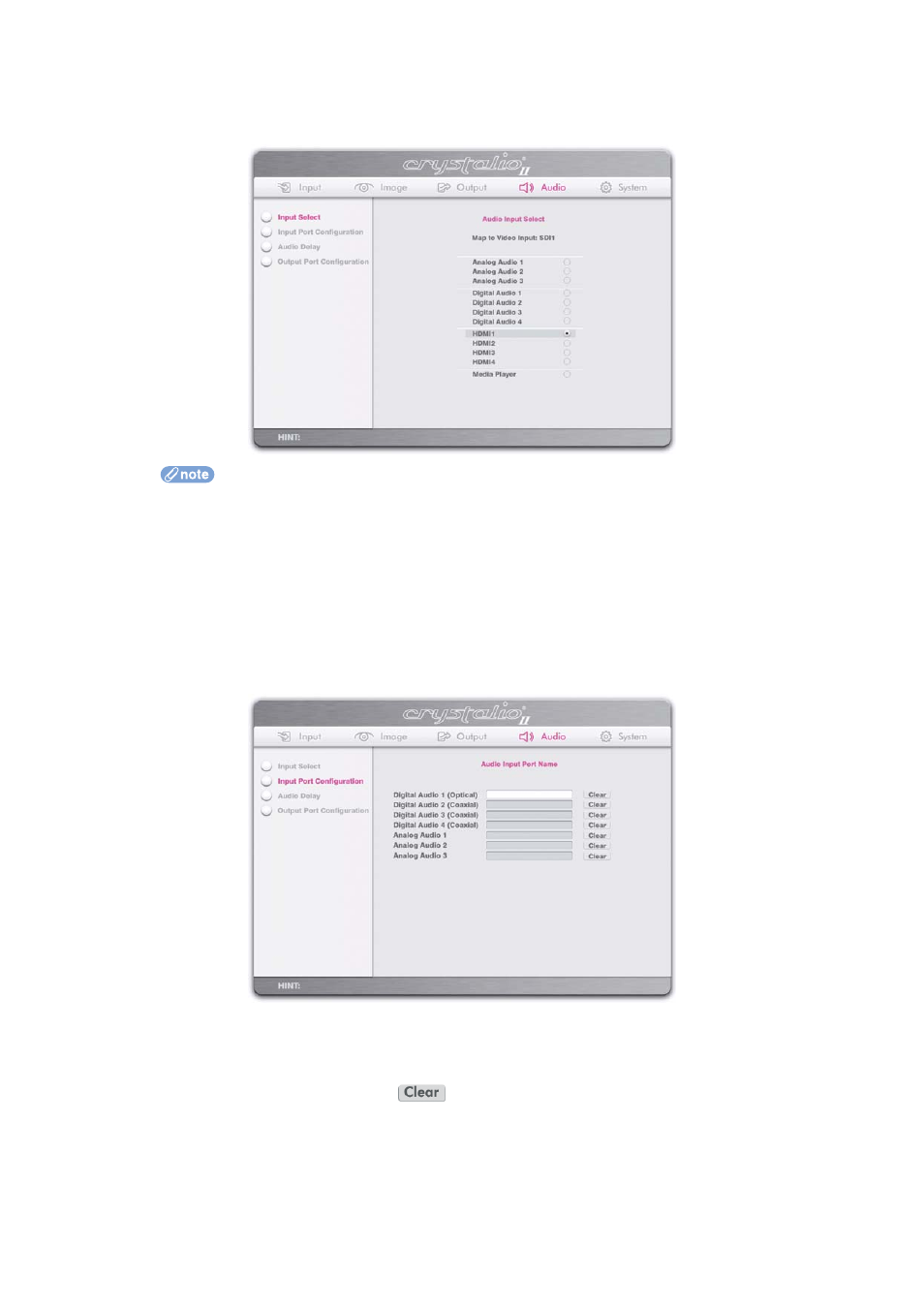

5.4.1 AUDIO INPUT SELECT

This option selects the audio input port that should be mapped to the current video input source.

• Any audio input port can be mapped to any video input source,

with the following exceptions:

• HDMI1 audio can not be mapped to HDMI2 video source

• HDMI2 audio can not be mapped to HDMI1 video source

• HDMI3 audio can not be mapped to HDMI4 video source

• HDMI4 audio can not be mapped to HDMI3 video source

• Crystalio II outputs the audio to ALL of its audio output ports

5.4.2 INPUT PORT CONFIGURATION

• You can define names for each input port, to help with identification

• Maximum number of characters in the text box is 20

• Clear the name by pressing the

action button
