Connecting Cables to the RMX 1500

To connect the cables:
•

For the RTM-IP 1500 module:
—

Connect the Media cable to LAN 2 port.

—

Connect the Network cables to the MNG (Signaling) port &

MNGB (Management Network) port.

—

(Optional) Connect the Shelf Management cable to the Shelf port.

•

For the RTM ISDN 1500 module:
—

Connect the E1/T1 cables to their PRI (1-4) ports.

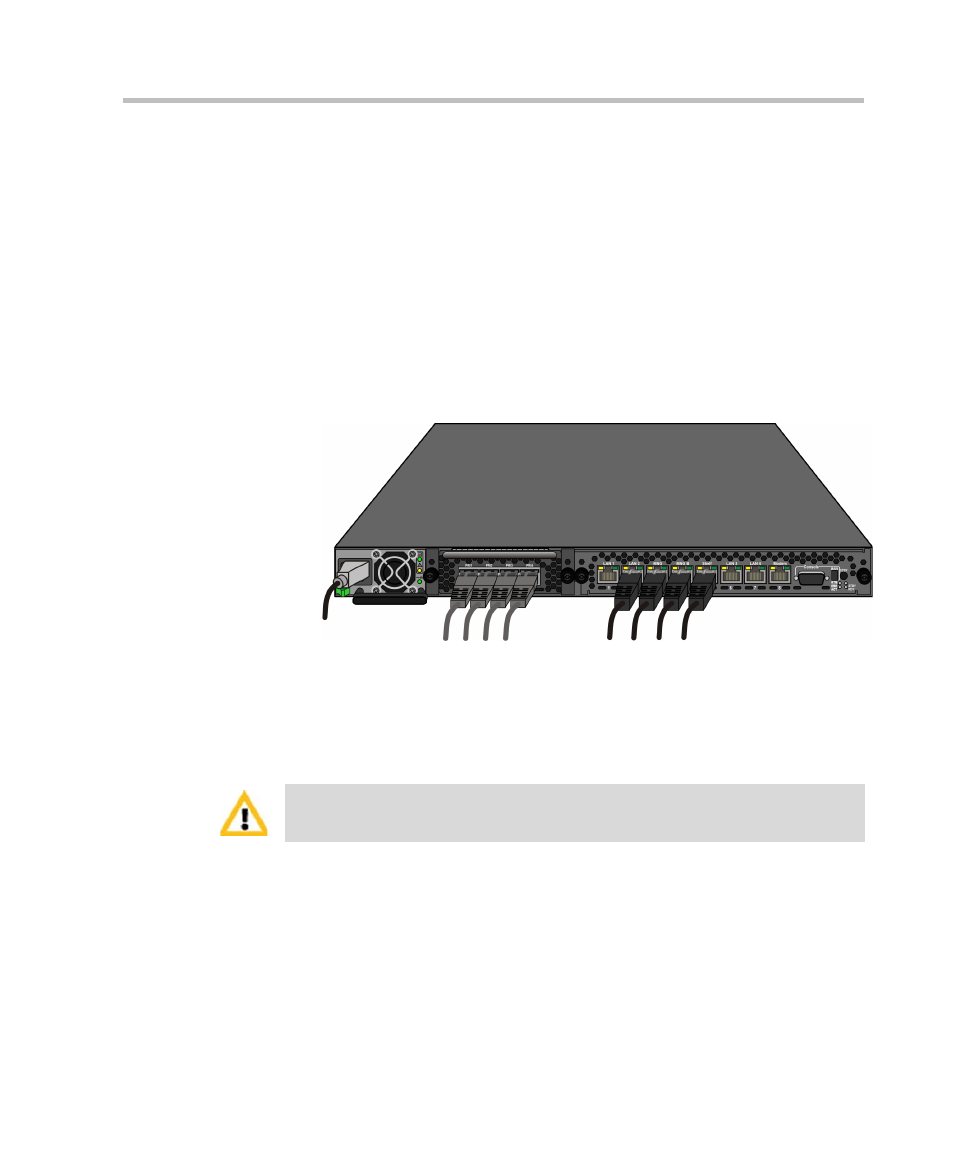

Figure 2-1

RMX 1500 Rear Panel View with AC Power and Communication

Cables

E1/T1 PRI
Connection(s)

Power Cable

LAN 2; media, MNG; signaling,
MNGB; management & Shelf

The LAN 1, LAN3, LAN4 and Modem ports are not be used and the plastic caps
covering those ports should not be removed.
