Polycom DOC2560C - Manual (Page 40)

Chapter 2-First Time Installation and Configuration
2-8
Modifying the Factory Default Management Network
Settings on the USB Key
The USB key contains a text file, lan.cfg, which holds the factory default IP
address parameters. These parameters must be modified to your local
network settings using the LAN Configuration Utility, also on the USB key.
To modify the USB key settings:
1
Take the USB Key from the Installation Accessories kit and insert it into
the PC workstation and double-click LanConfigUtility.exe to start
the utility.

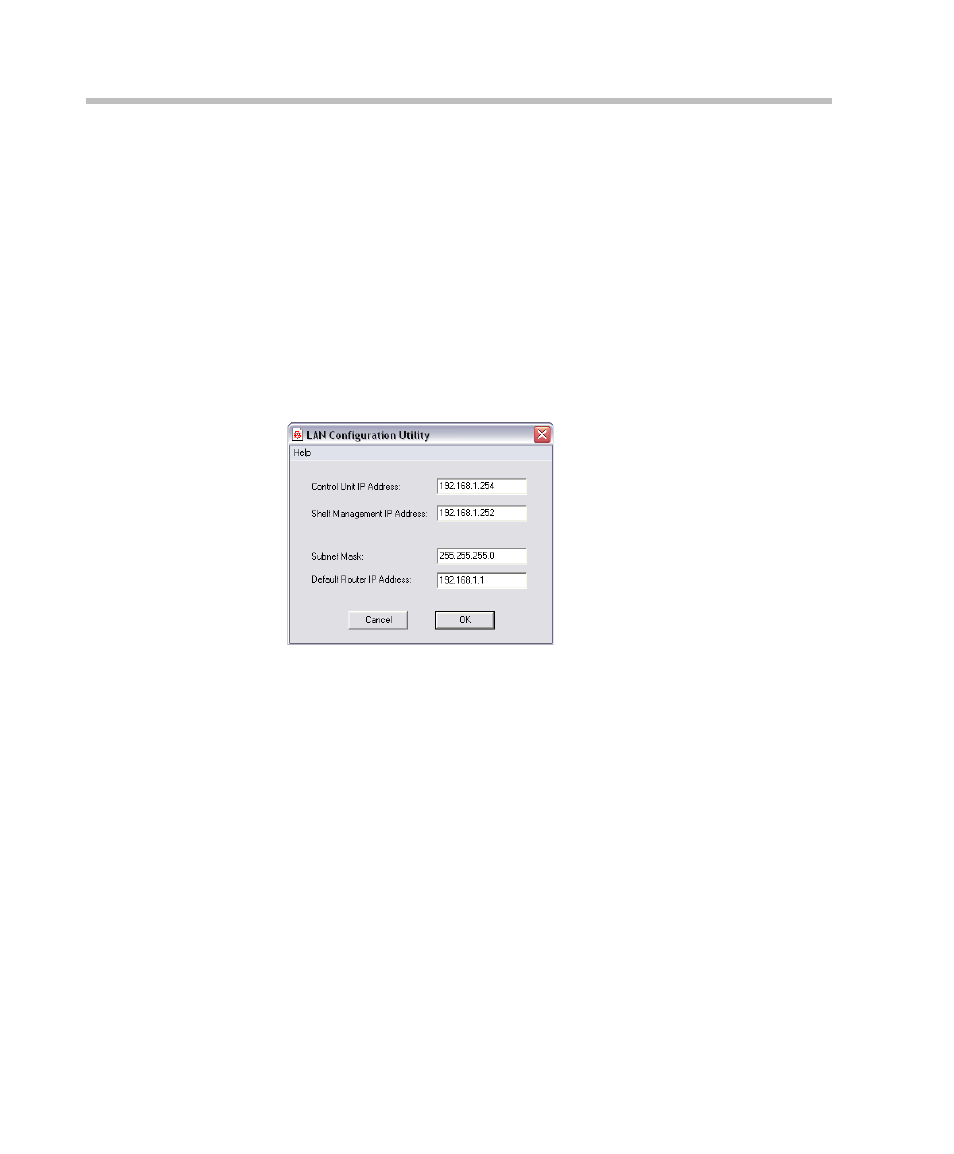

The LAN Configuration Utility dialog box opens.
2 Modify the following parameters in the utility’s dialog box using the
information supplied by your network administrator.
—
Control Unit IP Address
—
Shelf Management IP Address
—
Subnet Mask
—
Default Router IP Address
3 Click OK.
4 Remove the USB Key from the PC.
The USB key is required for first entry power-up.
