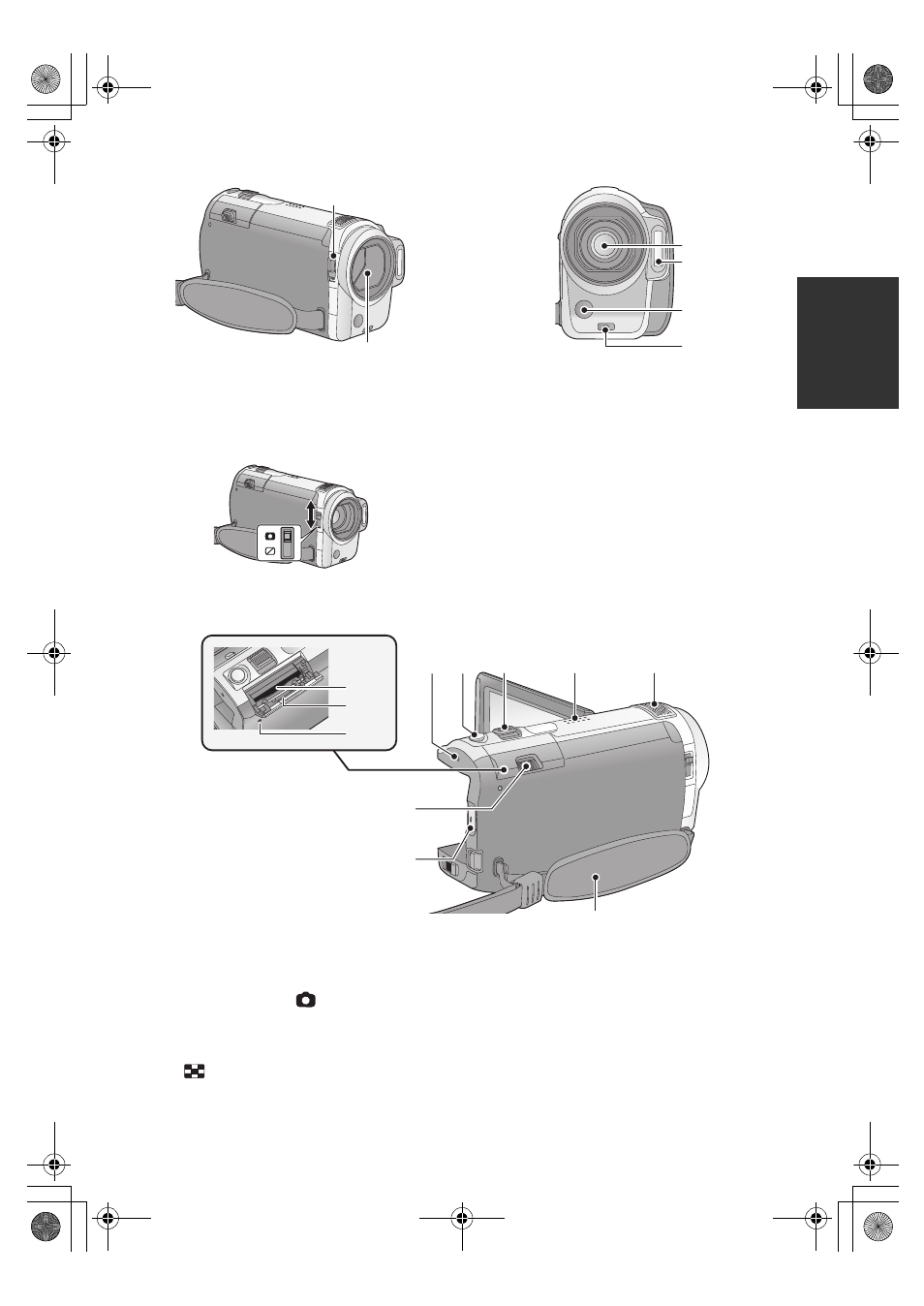

19 Lens cover
20 Lens cover opening/closing switch
When not using the unit, close the lens cover to
protect the lens.
≥ Slide the opening/closing switch to open/close
the cover.
21 Lens
22 Built-in flash (
l 63)
23 Video light ( l 52)
24 Recording lamp ( l 31)
25 Recording start/stop button ( l 42)
26 SD card open lever [OPEN] ( l 25)
27 Status indicator ( l 26)
28 Photoshot button [ ] ( l 46)
29 Zoom lever [W/T] (In recording mode)
( l 49)
Thumbnail display switch/Volume lever
[
s /VOL r] (In playback mode) ( l 71)
30 Speaker
31 Internal stereo microphones
32 Card slot ( l 25)
33 SD card cover ( l 25)
34 Access lamp [ACCESS] ( l 15, 25)
20
19
22
21
23
24
26
25
30 29 28 27 31
35
32
33
34
