The NetLink-T1™ provides T1 terminations over a modular RJ-48C jack
and comply with jitter tolerance capabilities as speciÞed in ANSI T1.403
and AT&T TR62411. External power options include 120VAC and Uni-
versal Interface 100-240VAC.
2.3 SUPPORTED APPLICATIONS
The NetLink-T1™ CSU/DSU provides a T1 (DS1) network termination
between the service provider and customer premises equipment (CPE)
such as a router. The Netlink-T1™ can also be used as a high-speed
short haul modem for campus applications.

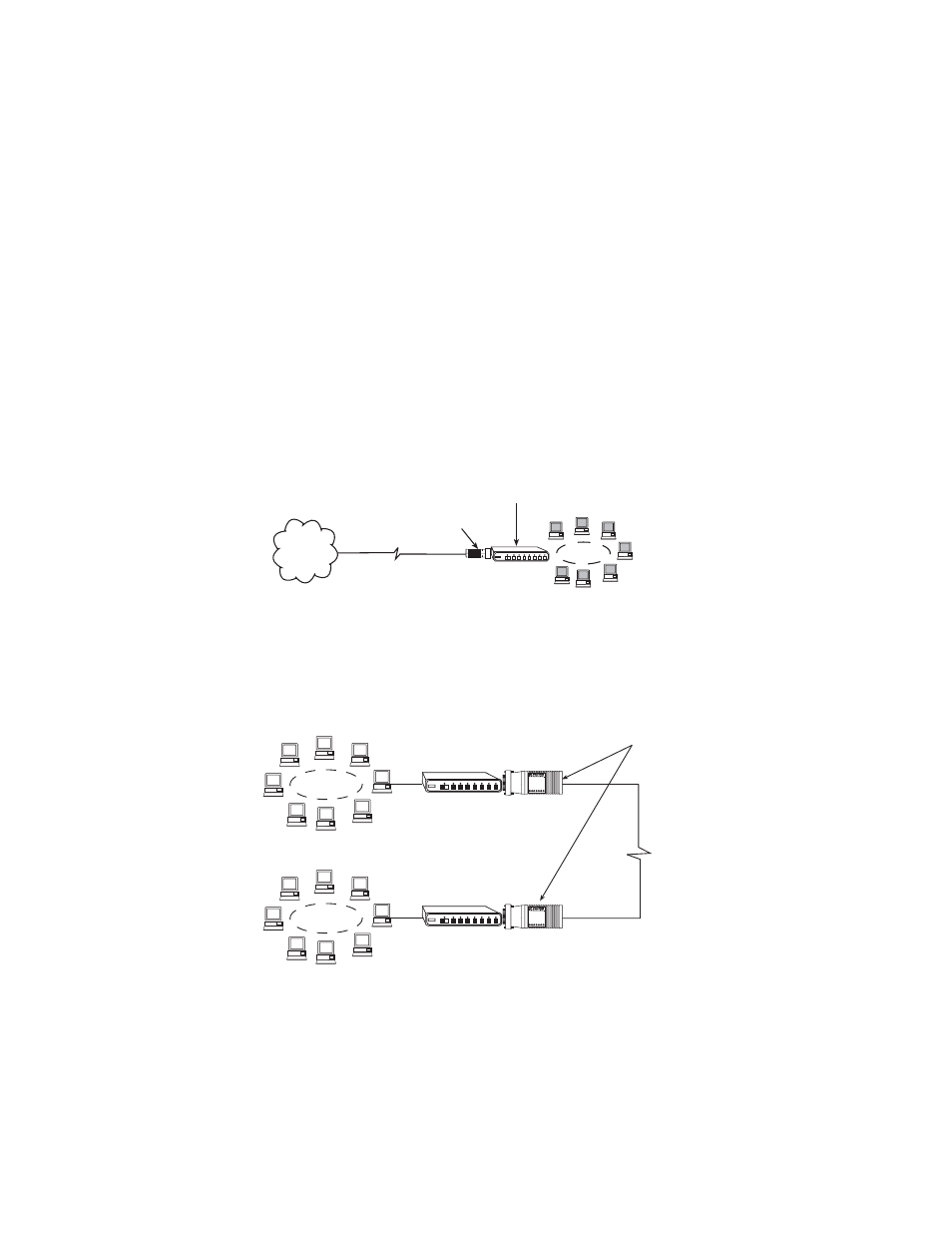

The 2710 as the Interface between the Telco and CPE
The NetLink-T1™ provides the interface between the service provider
and customer equipment, such as a router or switch (See below).
The 2710 as a High-Speed Short Range Modem
The NetLink-T1™ can also be installed into high-speed campus applica-
tions. In this application, a pair of NetLink-T1™ units operate as short
range modems (See below).
T1
Network
Model 2710
1.544Mbps
or nx56/64
Router
LAN
RXD LOS ALM ERR T/L PWR TXD
Model 2700
RXD LOS ALM ERR T/L PWR TXD
Model 2700
NetLink-T1“
Model 2710s
1.544MBps
or nx56/64
Up to 6000 Feet
(1.83 km)
