23
System Diagnostics

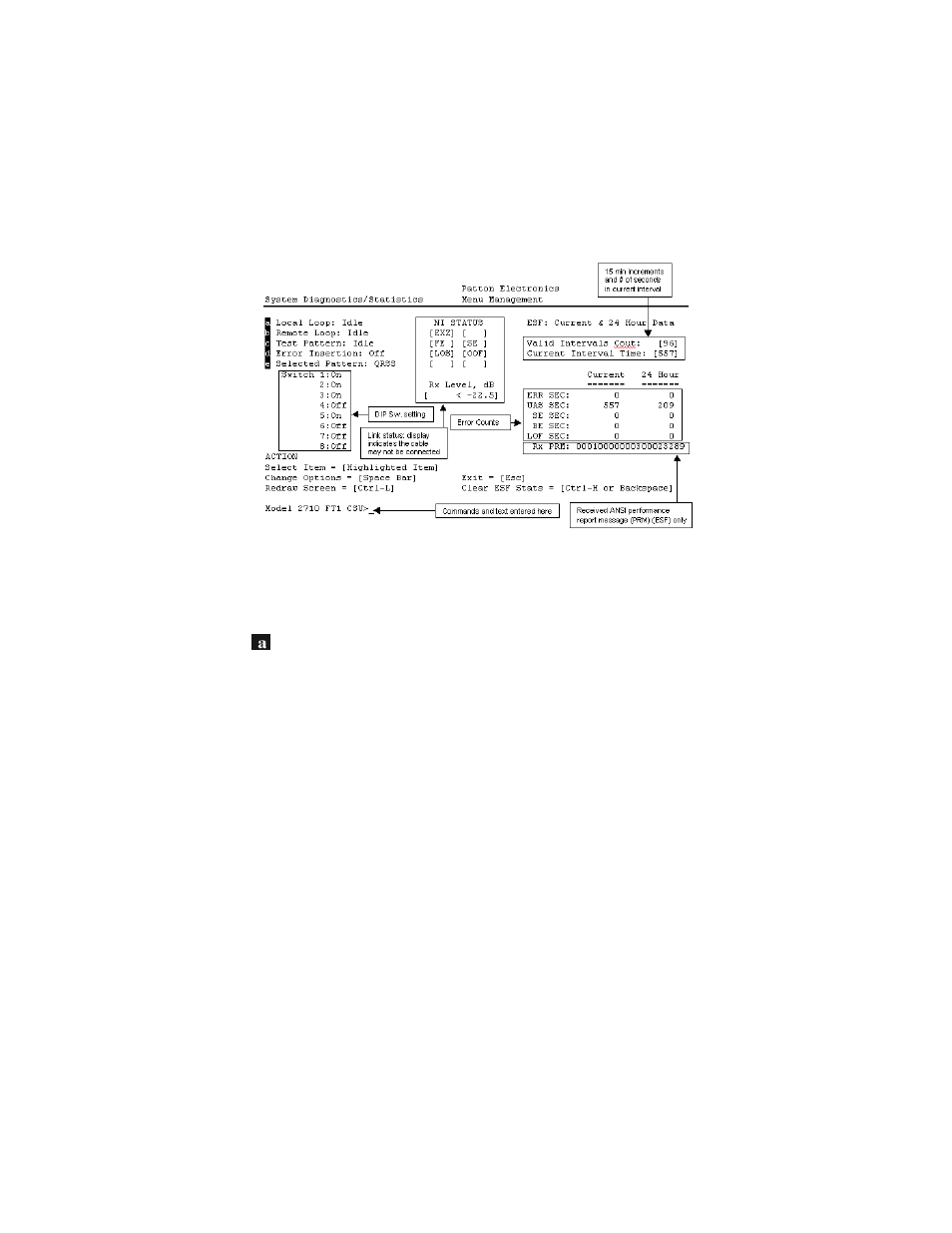

The System Diagnostics/Statistics screen looks like this:
Note This screen is updated once per second.
The System Diagnostics/Statistics options and functions are described
below.
– Local Loop: Idle (default)
The Local Loop is a bi-lateral loopback in which the data from the local
DTE and the data from the remote unit are looped back to their respec-
tive sources (See “Bit Error Rate (V.52) Diagnostics” on page 37). Acti-
vate this loop to test the each of the DTE’s connection to the NetLink-
T1™.
The Local Loop test has four states:
Idle– No user-controlled loopbacks are active.
LL– The NetLink-T1™ is in local loopback mode.
Off– The NetLink-T1™ is in remote loopback mode or sending a
pattern. Local loopback is disabled.
LocP– The NetLink-T1™ is in Local Loopback mode, and is sending
a test pattern.
