Paxar 545 User Manual
Page 21
Users Manual Model 545™
Printer Assembly
• 19

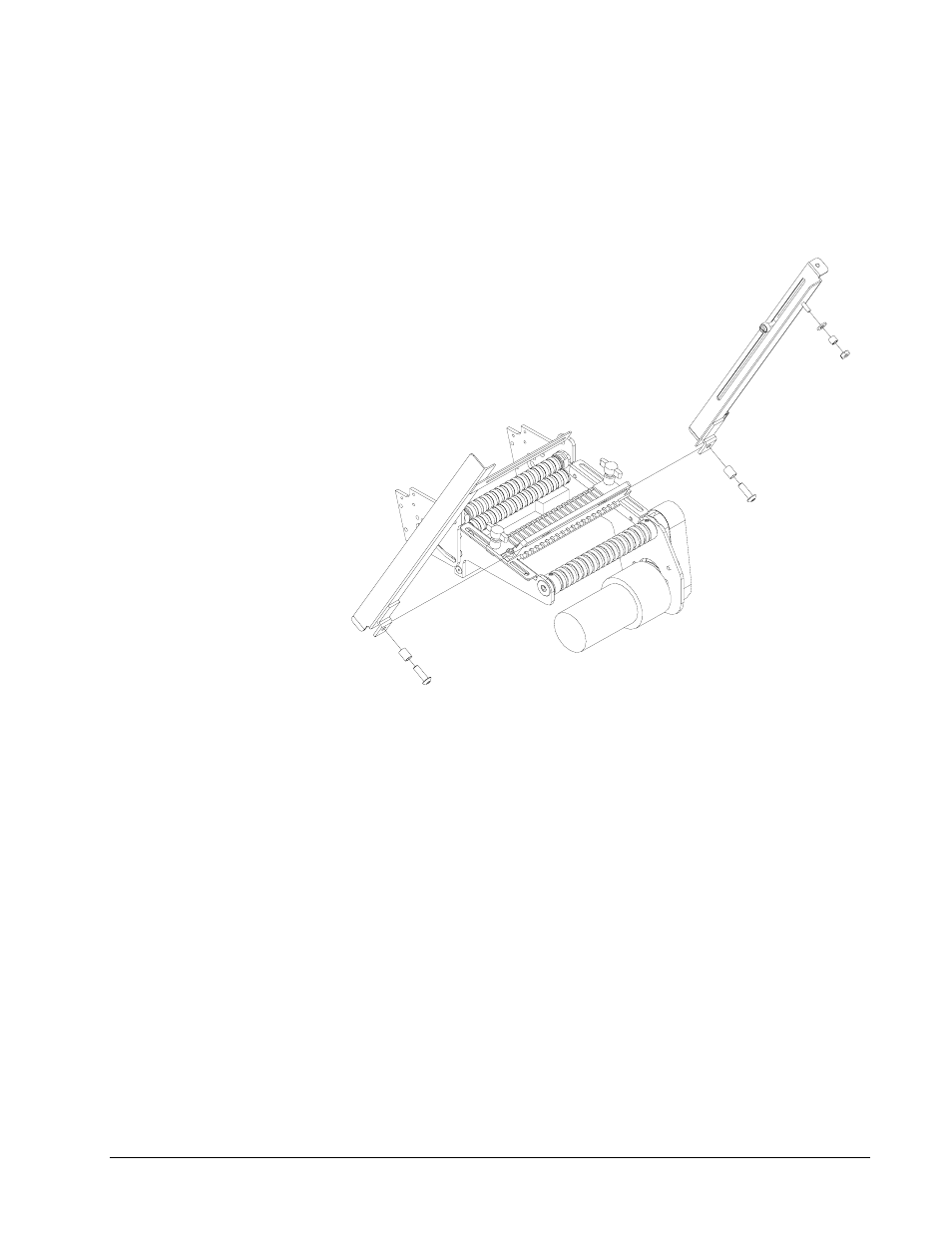

Install the stacker up-right rails. Remove one of the spring-loaded screws. Insert the
spring-loaded screw through the mating hole in the up-right rail assembly. Thread
the spring-loaded screw into the mounting block. Repeat the above procedure for
the other rail. Remove the spring-loaded screw and washer from the top of the inner
stacker rail. Place the threaded stud into the slot of the outer rail and reattach the
washer, spring and nut.
