Before operation, setup of this unit is required. Setup is per-
formed from WJ-SX650 Series Administrator Console
installed on a PC. (Some settings are available from SETUP
MENU of this unit.) The following is an example of setup
procedure.

Notes:

• Setup may differ depending on system composition.

(Settings of Step 1 and 4 in the following procedure
must be performed.)

• For Step 2, 3, 5 and 6 in the following setup procedure,

the factory default can be maintained.

Example: camera x 150, recorder x 10, monitor x 32, and

system controller x 2 (Terminal mode)

1. Perform the recorder settings.

Recorder Out: Input Board No.5 (When video input sig-

nals are supplied from recorders to CAM160 to 151)

Recorder 1 to 10: ON
Recorder 11 to 16: OFF

Note: Check if recorders are properly connected to the

DATA port and CAM (camera input channels) currently
displayed.

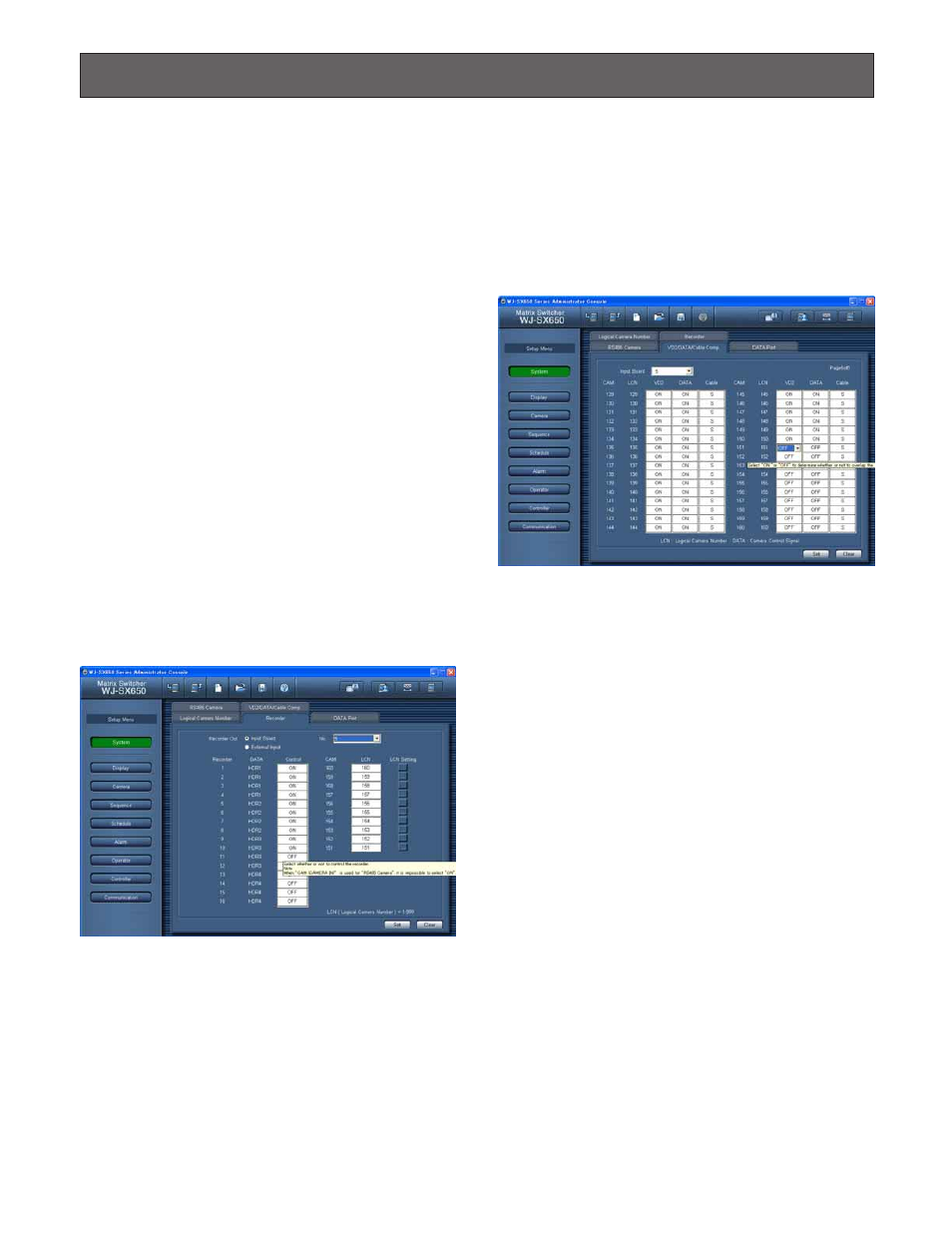

"System" – "Recorder"

RECORDER (Refer to p.

2. Perform the DATA port settings. (In this example, main-

tain the factory default.)
DATA 1, 2, 5 and 6 ports: TMNL
DATA 3, 4, 7 and 8 ports: HDR

Note: Change these parameters when using PS·Data

system controllers, etc.

"System" – "DATA Port"

DATA PORT (Refer to p.

"System" – "VD2/DATA/Cable Comp."

VD2/DATA/CABLE COMPENSATION (Refer to p.

3. Perform the LCN (Logical Camera Number) settings.

CAM001 to 160: If you change LCN settings, select

desired parameters.

CAM161 to 256: Delete the LCN parameters.

Notes:

• Set LCN parameters for CAM151 to 160 surely, even

though these channels accept video input signals from
recorders. Without LCN settings, recorder selection is
unavailable.

• By deleting the LCN parameters of unused camera

channels, operators can select only existing camera
numbers.

"System" – "Logical Camera Number"

Not available

4. Perform the camera settings.

CAM001 to 150: Select desired parameters for these

cameras. (To use cameras of other manufacturers,
set DATA to OFF.) For Cable (cable compensation),
select the parameter suited to the cable length.

CAM151 to 160: Set DATA to OFF. (Video input signals

are supplied from recorders to these channels.)

SETUP PROCEDURE
