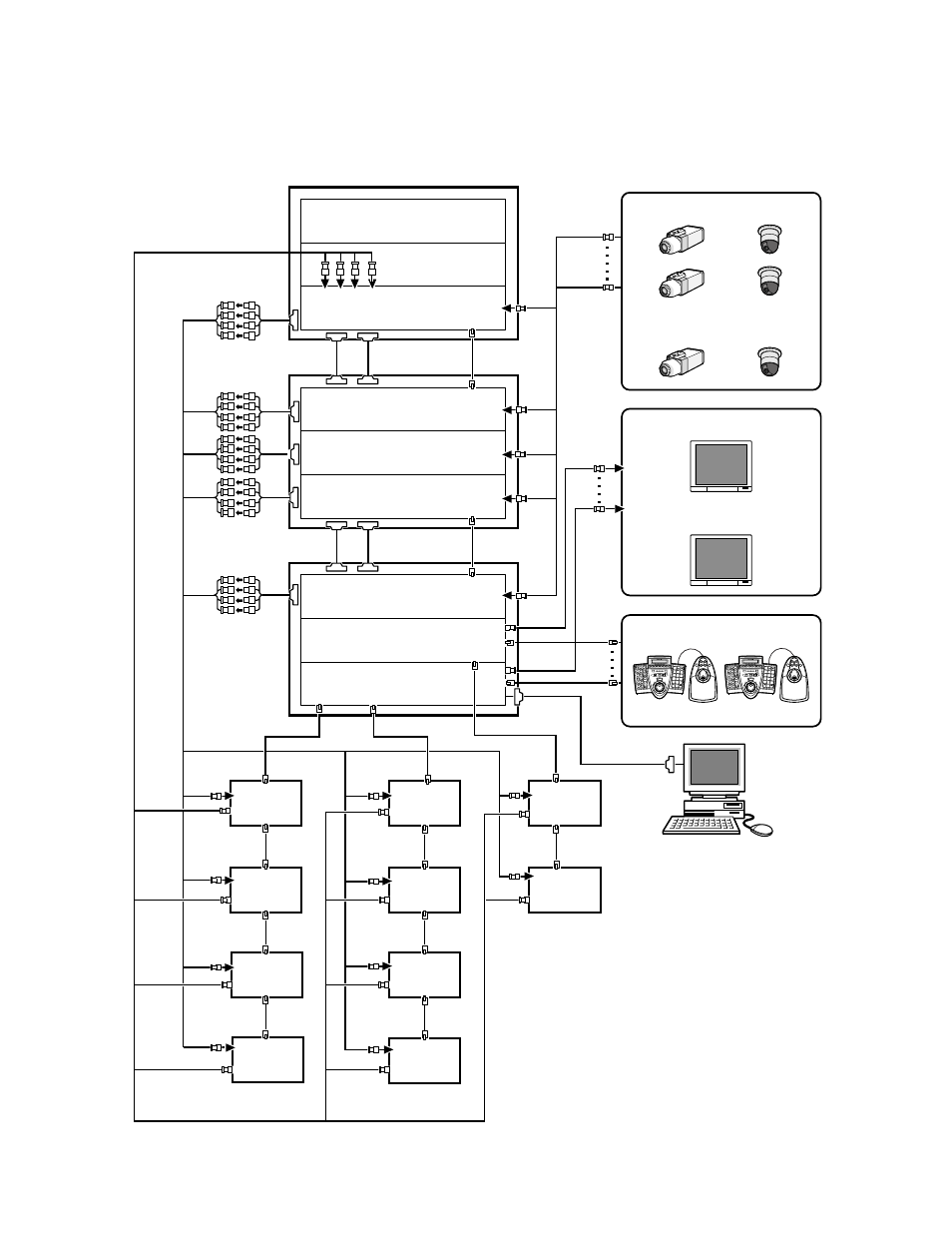

■ Expanded System Connections
The following is a connection example to use two or more units.
This unit x 3, camera x 150, monitor x 32, and recorder x 10
~ ~
~
A B
1 3 2 4 6 5 7 9 8
0
SYSTEM CONTROLLER A B
1 3 2 4 6 5 7 9 8
0
SYSTEM CONTROLLER
Card cage connection
Card cage connection
CAMERA IN
CAMERA IN
CAMERA
IN CAMERA
IN
VIDEO OUT
(Loop-thru output)
MONITOR OUT
MONITOR OUT
Recorder Recorder Recorder
Recorder Recorder
Recorder Recorder
Recorder Recorder
Recorder
Camera 1 to 150
Monitor 1 to 32
System controller
DATA
DATA DATA DATA
SERIAL
DATA DATA DATA
PC (WJ-SX650 Series
Administrator Console)
Video input board
Video input board
Video input board
Video input board
Video input board
Video output board
Video output board
