Cable Planning and Requirements

Perle 833IS User Guide

STP

■

Uses STP wiring, Types 1, 2, 6, and 9.

■

Terminated with IBM style universal data connectors.

■

Cables are attached to a Media Access Unit (MAU) in a star configuration.

UTP

■

Uses UTP wiring, Category 3, 4 or 5.

■

Terminated with RJ-45 plugs.

■

Cables are attached to a MAU in a star configuration.

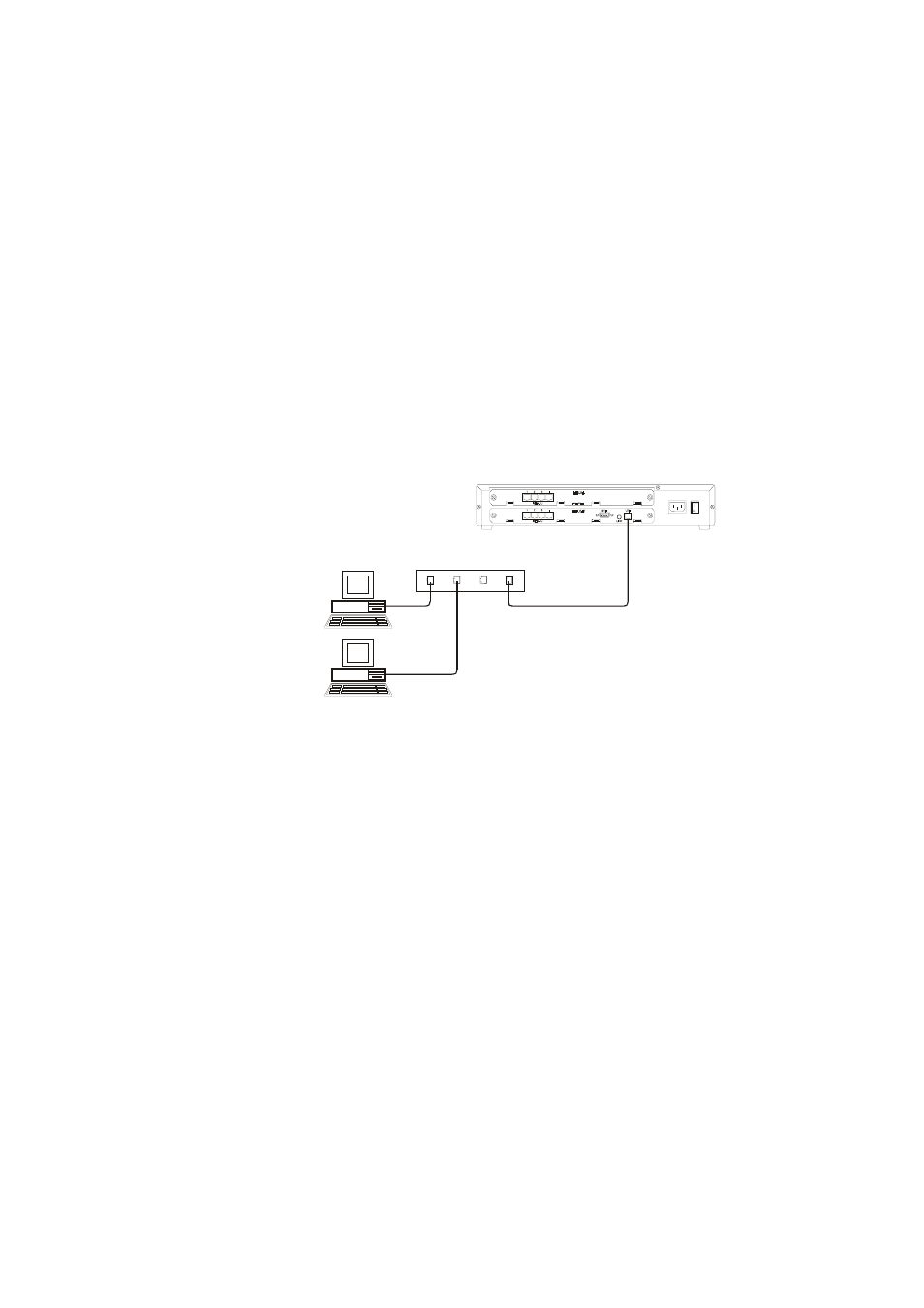

Type 1 or Type 3 MAU

Type 1, 2, 6 or 9
STP (Type 1
MAU)
Category 3, 4, 5
UTP

▲ Token Ring Network
