10Base-T:
■
Uses 22 to 26 AWG unshielded twisted pair (UTP) cable.
■
Terminated with RJ-45 plugs.
■
Cables are straight wired – pin 1 of one end of the cable is wired to pin 1 on the
other end.
■
Category 3, 4 and 5 UTP cable is acceptable.
■
For best results, Category 4 and 5 cable is recommended.
■
Cables are attached to a 10Base-T hub in a star configuration.
■
Maximum length from 833IS to hub is 100m (328 ft.).
10 Base-T Hub
Category
3,4,5 UTP

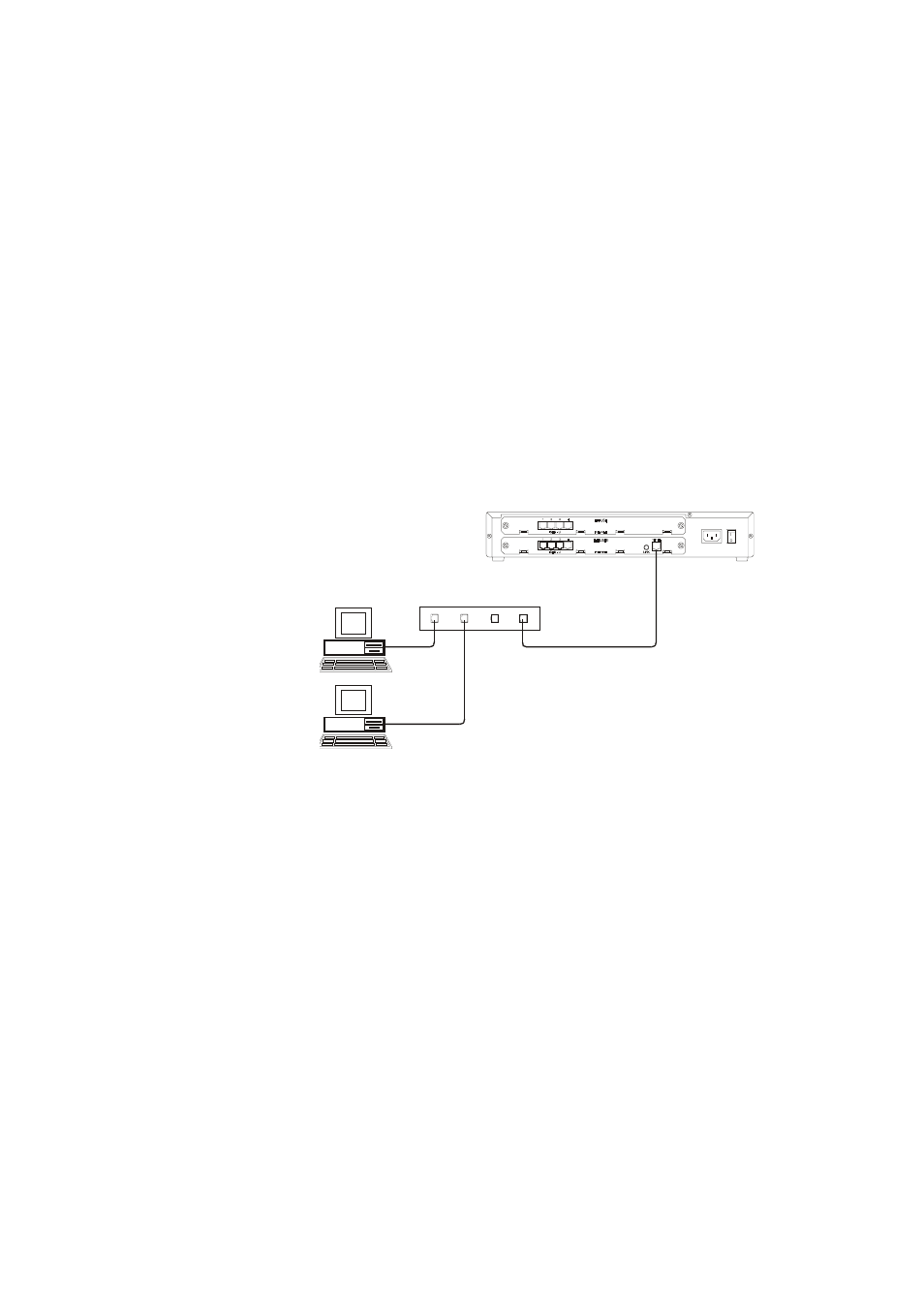

▲ 10 Base-T Network
