ELECTRICAL DIAGRAMS
G-2
INVERTEC® V155-S

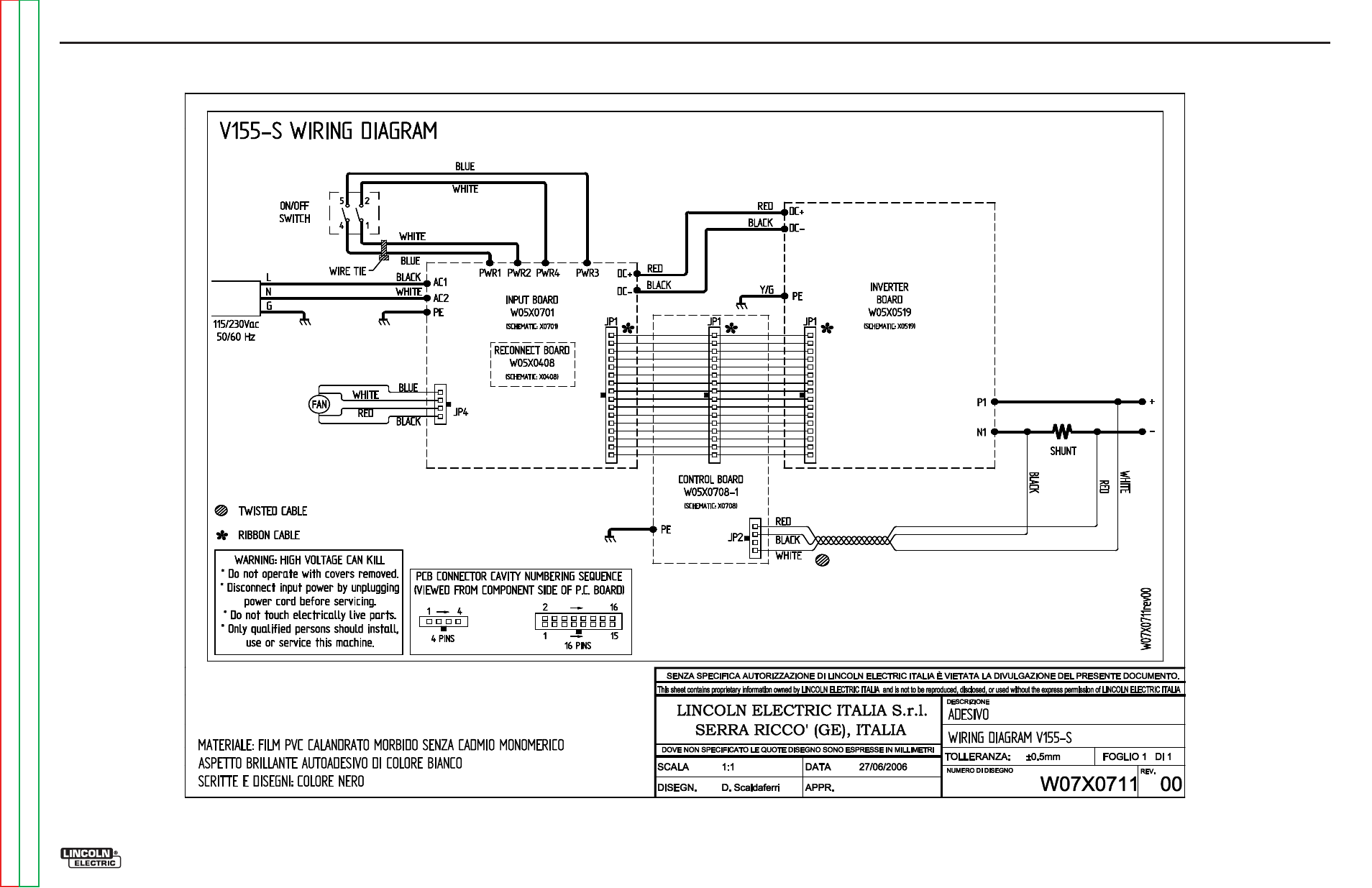

WIRING DIAGRAM - CODES 11326 & 11327
G-2
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The wiring diagram specific to your code is pasted inside one of the enclosure panels of your machine.
