Installing
a
drive
Depending
on
the
server
model,
a
DVD-ROM
or
multiburner
drive
might
be
installed
in
the
server.
The
server
supports
2.5-inch
and
3.5-inch
hot-swap
SAS
or
hot-swap
SATA
hard
disk
drives
and
3.5-inch
simple-swap
SATA
hard
disk
drives
(depending
on
the
model).
The
following
illustrations
show
the
locations
of
the
drive
bays.
Some
models
have
seven
drive
bays 1
to
7 ,
and
some
models
have
eleven
drive
bays
1
to
11 .

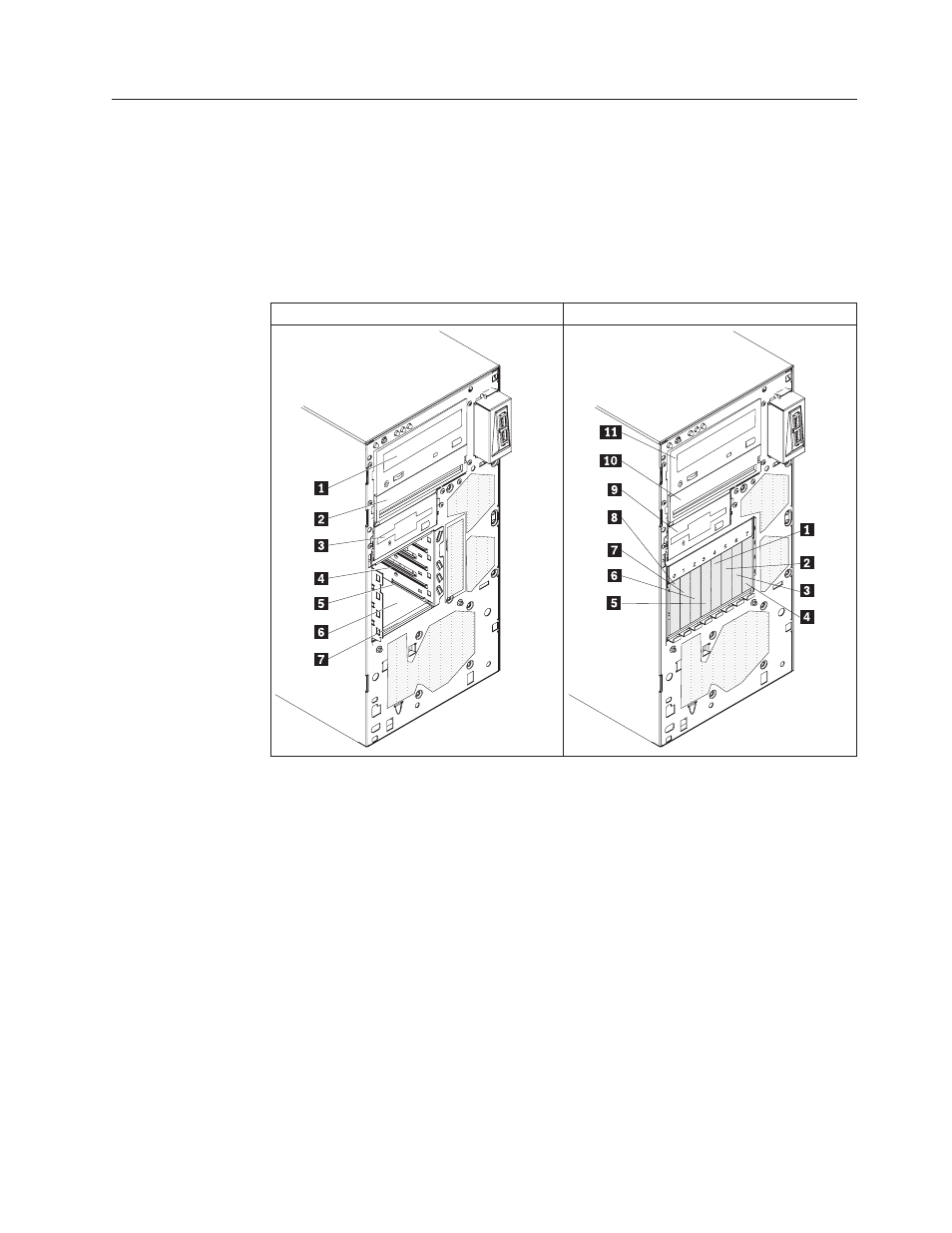

Table
5.
Drive
bays
on
the
server
models
Seven
drive-bay
model
Eleven
drive-bay
model
The
following
notes
describe
the
types
of
drives
that
the
server
supports
and
other
information
that
you
must
consider
when
you
install
a
drive:
v
Make
sure
that
you
have
all
the
cables
and
other
equipment
specified
that
are
in
the
documentation
that
comes
with
the
drive.
v
Select
the
bay
in
which
you
want
to
install
the
drive.
v
Check
the
instructions
that
come
with
the
drive
to
determine
whether
you
have
to
set
any
switches
or
jumpers
on
the
drive.
If
you
are
installing
a
SAS
or
SATA
device,
be
sure
to
set
the
SAS
or
SATA
ID
for
that
device.
v
Optional
internal
or
external
USB
diskette
drives,
tape
drives,
DVD-ROM,
and
multiburner
drives
are
examples
of
removable-media
drives.
You
can
install
removable-media
drives
in
bays
1,
2,
and
3
only.
v
The
SATA
removable-media
drives
that
you
install
in
bay
1
connects
to
the
SATA
4
connector
on
the
system
board
and
the
drive
in
bay
2
connects
to
the
SATA
5
connector
on
the
system
board.
v
To
install
a
3.5-inch
drive
in
a
5.25-inch
bay,
you
must
use
the
5.25-inch
conversion
kit.
Chapter
2.
Installing
optional
devices
17
