Attention:
Static
electricity
that
is
released
to
internal
server
components
when
the
server
is
powered-on
might
cause
the
server
to
stop,
which
might
result
in
the
loss
of
data.
To
avoid
this
potential
problem,
always
use
an
electrostatic-discharge
wrist
strap
or
other
grounding
system
when
you
work
inside
the
server
with
the
power
on.
To
install
an
adapter,
complete
the
following
steps:
1.
Read
the
safety
information
that
begins
on
page
and
2.
Turn
off
the
server
and
peripheral
devices
and
disconnect
all
external
cables
and
power
cords;
then,
remove
the
side
cover.
See
3.
Follow
the
cabling
instructions,
if
any,
that
come
with
the
adapter.
Route
the
adapter
cables
before
you
install
the
adapter.
4.
Follow
the
instructions
that
come
with
the
adapter
to
set
jumpers
or
switches,
if
any.
5.
Rotate
the
rear
adapter-retention
bracket
to
the
open
(unlocked)
position
and
remove
it
from
the
server.
6.
Remove
the
screw
that
secures
the
expansion-slot
cover
to
the
chassis.
Store
the
expansion-slot
cover
and
screw
in
a
safe
place
for
future
use.
Note:
Expansion-slot
covers
must
be
installed
on
all
vacant
slots.
This
maintains
the
electronic
emissions
standards
of
the
server
and
ensures
proper
ventilation
of
server
components.
7.
Touch
the
static-protective
package
that
contains
the
adapter
to
any
unpainted
metal
surface
on
the
server.
Then,
remove
the
adapter
from
the
static-protective
package.
Avoid
touching
the
components
and
gold-edge
connectors
on
the
adapter.

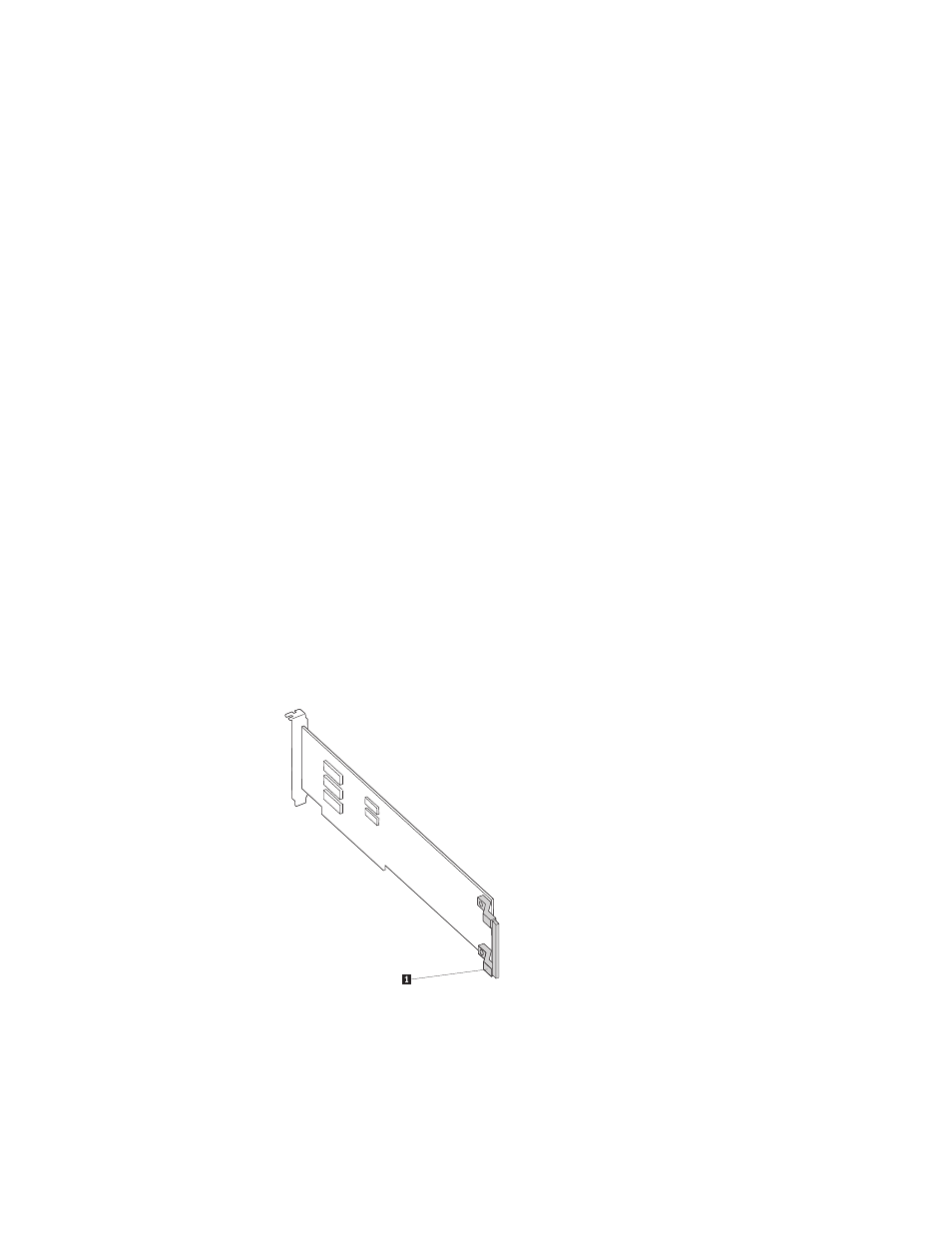

8.
If
you
are
installing
a
full-length
adapter,
remove
the
blue
adapter
guide
1
(if
any)
from
the
end
of
the
adapter.
9.
Carefully
grasp
the
adapter
by
the
top
edge
or
upper
corners,
and
align
it
with
the
expansion-slot
guides;
then,
press
the
adapter
firmly
into
the
expansion
slot.
Move
the
adapter
directly
from
the
static-protective
package
to
the
expansion
slot.
Attention:
Make
sure
that
the
adapter
is
correctly
seated
in
the
expansion
slot
before
you
turn
on
the
server.
Incomplete
installation
of
an
adapter
might
damage
the
system
board
or
the
adapter.
28
