Reinstalling
the
side
cover
If
you
removed
the
bezel,
reinstall
it
before
you
reinstall
the
side
cover.
See
Note:
The
rear
adapter-retention
bracket
rests
against
the
server
side
cover.
You
might
find
it
easier
to
lay
the
server
on
its
side
to
reinstall
the
side
cover.
To
reinstall
the
side
cover,
complete
the
following
steps:
1.
Before
you
install
the
side
cover,
make
sure
that
all
cables,
adapters,
and
other
components
are
installed
and
seated
correctly
and
that
you
have
not
left
loose
tools
or
parts
inside
the
server.
Also,
make
sure
that
all
internal
cables
are
correctly
routed.

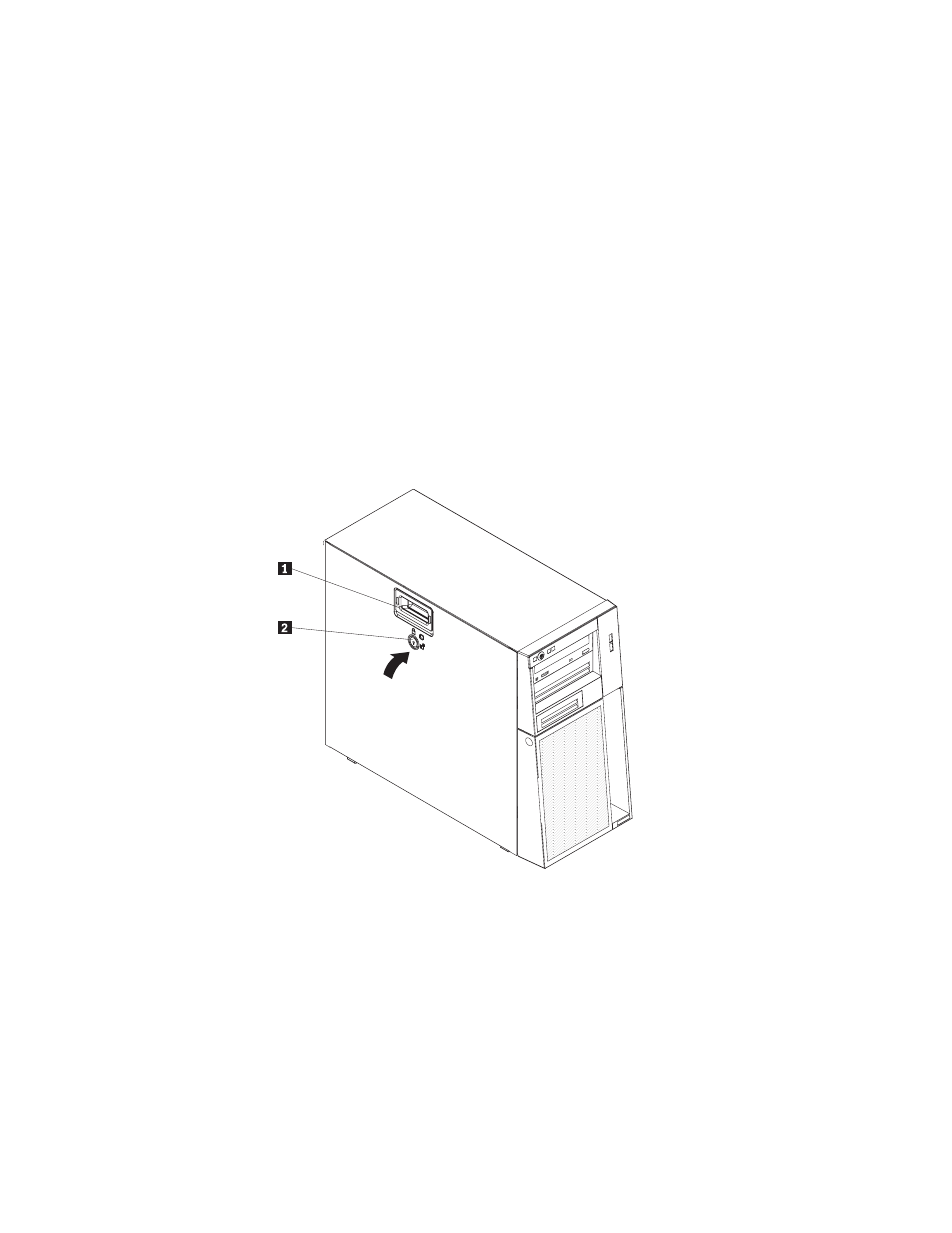

Note:
The
cover-release
latch
1
must
be
in
the
unlocked
(opened)
position
before
you
install
the
side
cover.
2.
Position
the
lip
on
the
bottom
edge
of
the
side
cover
on
the
ledge
on
the
bottom
of
the
chassis;
then,
rotate
the
cover
up
to
the
chassis,
and
then
press
down
on
the
cover
release
latch
and
push
the
cover
completely
closed
until
it
latches
securely
into
place.
3.
Close
the
cover-release
latch
to
secure
the
side
cover
in
place.
4.
Lock
the
side
cover.
