Removing the two-piece bezel
When you work with some devices, such as drives in bays 1 through 7 (or bays 1
through 11 if you have the 2.5-inch eight-drive model, see page Table 5 on page
17), you must first remove the two-piece bezel to access the devices.
Notes:
v Before you remove the upper bezel, you must unlock and remove the side cover
and remove the lower bezel.
v If you are removing only the lower bezel, you do not have to remove the side
cover. However, the side cover must be unlocked.
To remove the two-piece bezel, complete the following steps:
1. Unlock the side cover.
2. Remove the side cover (see “Removing the side cover” on page 10).

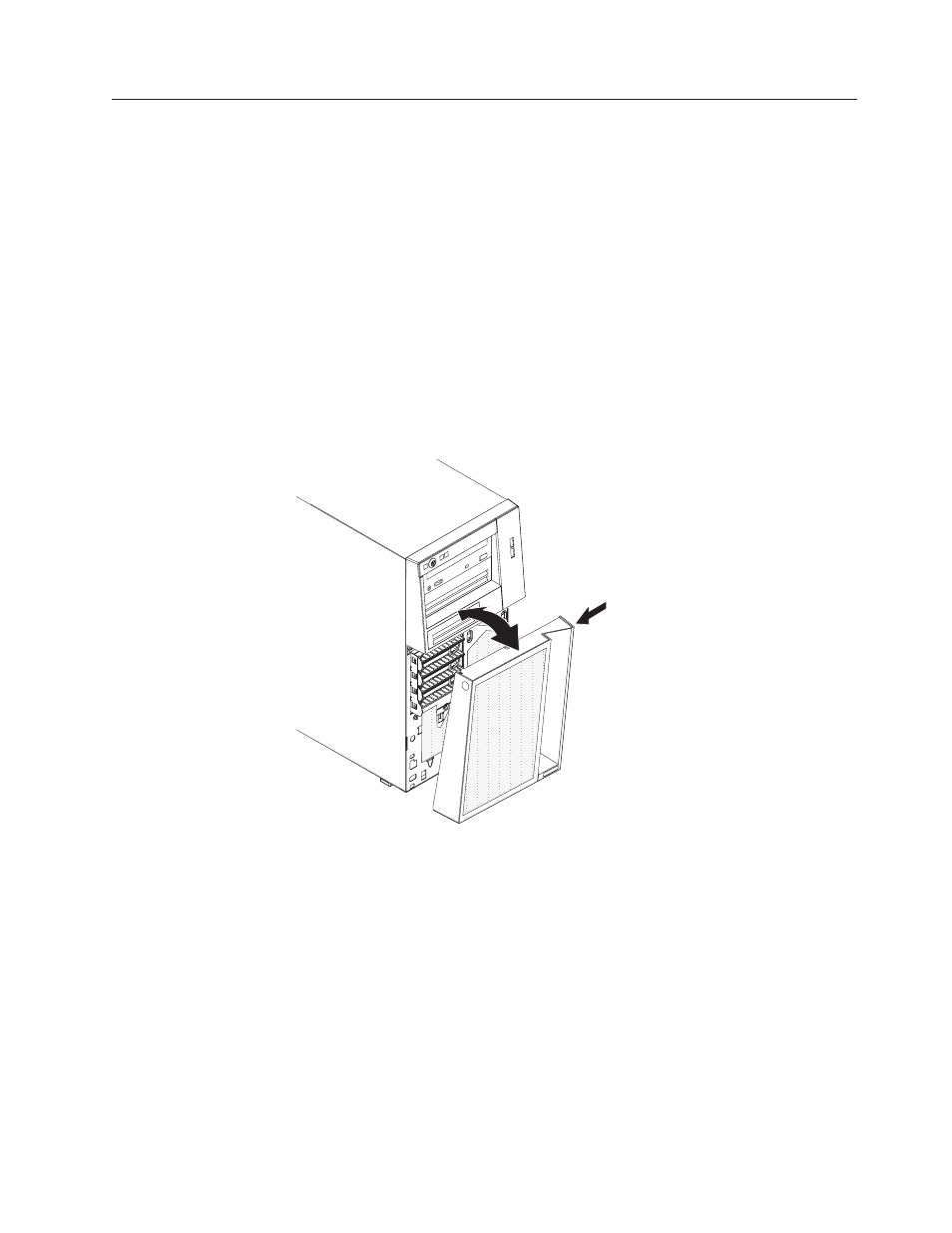

3. Press the round blue release button on the right side of the lower bezel and tilt
the lower bezel forward to disengage it from the chassis.
4. Lift the lower bezel to disengage the two bottom tabs from the chassis. Set the
lower bezel aside.
Chapter 2. Installing optional devices 11
