OPERATION B-24 B-24
VRTEX TM 360
Back
Pressing back returns the user to the previous page
screen.
Continue
Pressing continue goes to the tolerance configuration
selection screen, unless the user was renaming a file,
in which case it goes back to the previous page.
Tolerances Joint Configuration
Selection Screen
Overview
The user selects which configuration to modify.
Menu
Selecting Logout and then yes in the submenu takes
the user back to the Login screen.
Selecting Change Process brings the user back to the
tolerances process selection screen.
Back
Pressing Back goes back to the pervious screen.
Continue
Pressing Continue goes to the tolerance process
selection screen.
Tolerances Process Selection
Screen
Overview
The user selects which process to modify.
Menu
Selecting Logout and then yes in the submenu brings
the user back to the login screen in welding mode.
Selecting Change Coupon Type takes the user back
to the tolerances configuration selection screen.
Back
Pressing Back goes back to the tolerance configura-
tion selection screen.
Continue
Pressing Continue goes to the tolerance equipment
settings screen.

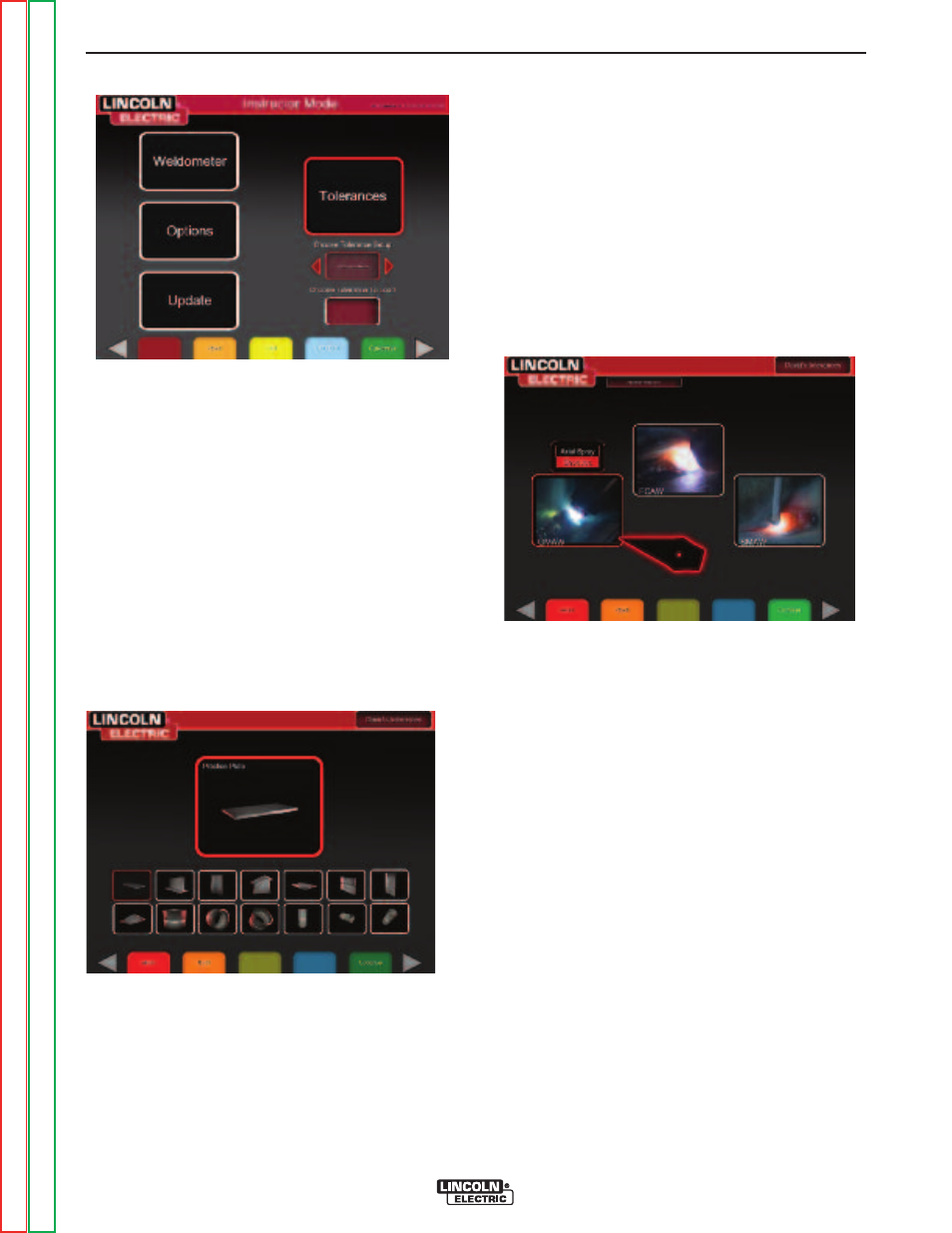

TOLERANCE CONFIGURATION SELECTION
TOLERANCES SELECTED (LINCOLN DEFAULTS)
TOLERANCES PROCESS SELECTION SCREEN
