Lincoln Electric VRTEXTM 360 SVM200-A - Manual (Page 159)

SOURCE
SYS

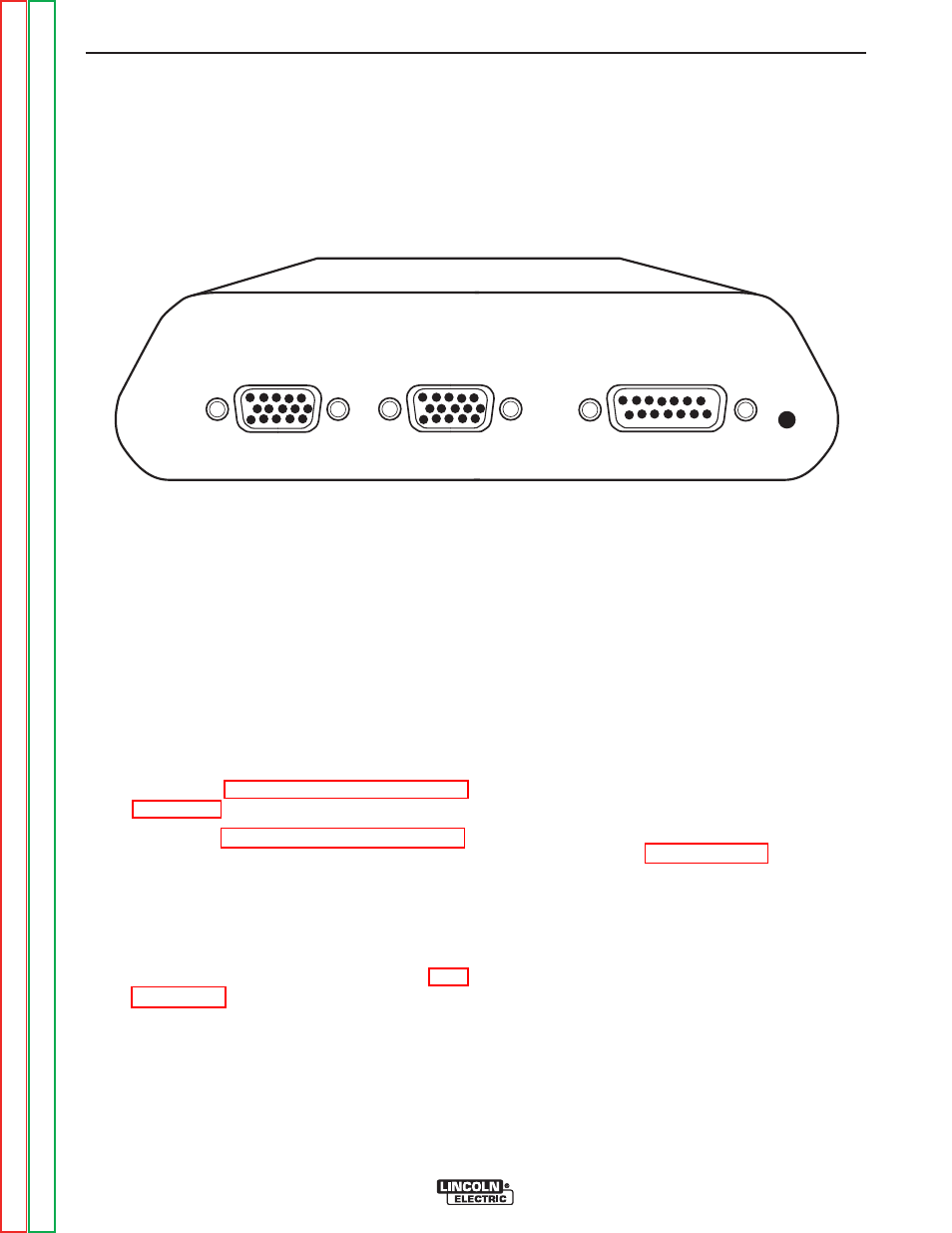

FIGURE F.47 – “SOURCE’ CABLE CONNECTED TO POLHEMUS MODULE
TABLE SWING ARM
REMOVAL AND REPLACEMENT PROCEDURE (continued)
REMOVAL PROCEDURE
1. Remove input power.
2. Perform the Monitor and Pedestal Removal
Procedure
.
3. Perform the Case Cover Removal Procedure.
4. Remove any coupons that are inserted into the
swing arm.
5. Disconnect the cable labeled “SOURCE” from
the polhemus module. See Figure F.47.
6. Remove the strain relief from the Table Swing
Arm cable at the rear of the machine. See
Figure F.48.
7. Remove any cable ties.
8. Carefully slide the Table Swing Arm off of the
top of the table mounting post.
9. Remove the plastic grommet from 1¾ “ access
hole in case back. See Figure F.48.
10. Remove the Table Swing Arm cable through
the case back via the 1¾” access hole.
TROUBLESHOOTING AND REPAIR F-102 F-102
VRTEX TM 360
