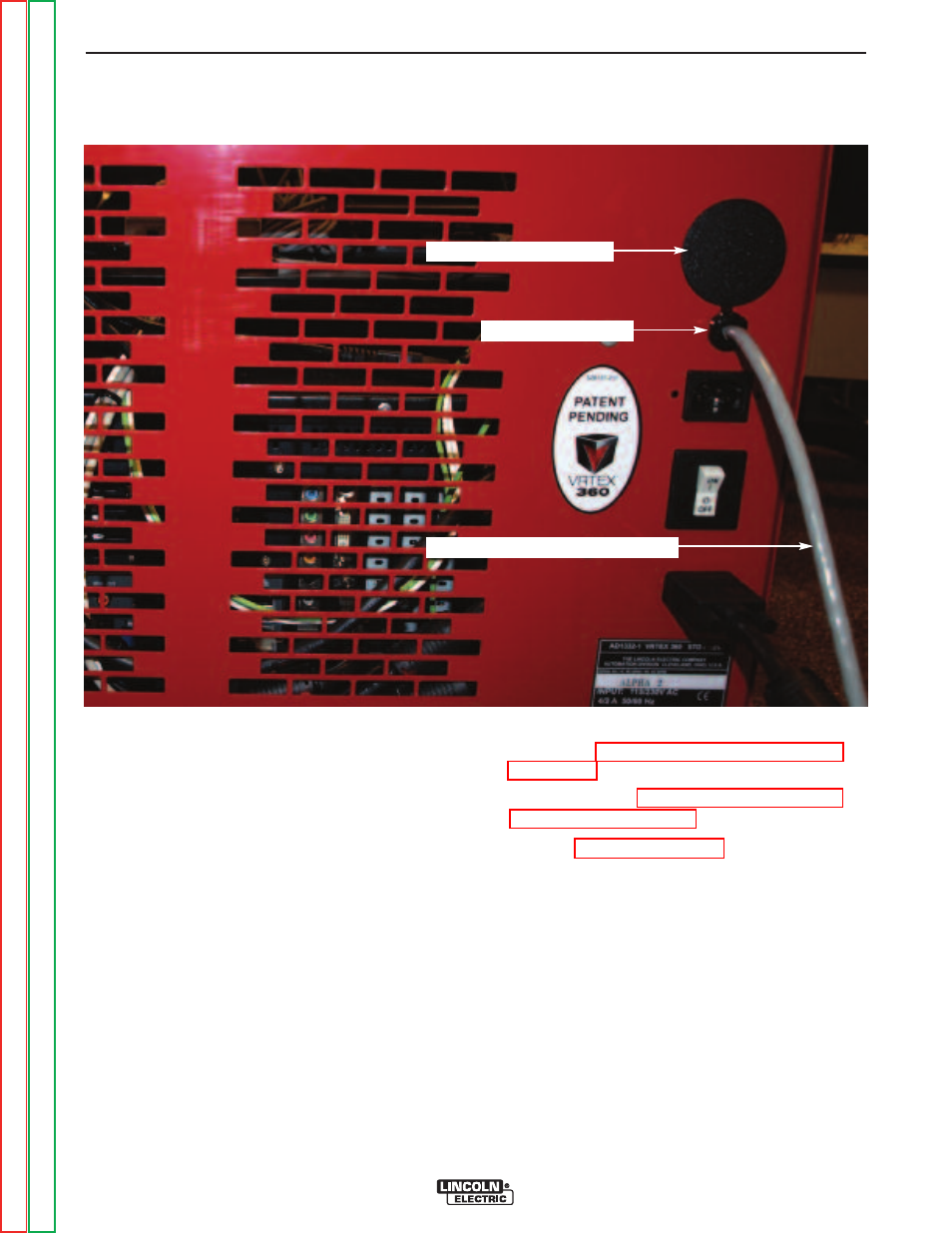

FIGURE F.48 – CASE BACK (REAR)
TABLE SWING ARM
REMOVAL AND REPLACEMENT PROCEDURE (continued)
REPLACEMENT PROCEDURE
1. Replace the Table Swing Arm.
2. Carefully guide the Table Swing Arm cable
through the 1¾” access hole in the case back.
3. Insert the plastic grommet into the 1¾” access
hole.
4. Slide the new Table Swing Arm onto the top of
the top of the table mounting post.
5. Replace any previously removed cable ties.
6. Install the strain relief from the Table Swing Arm
cable previously removed from the rear of the
machine.
7. Connect the previously removed cable labeled
“SOURCE” to the polhemus module.
8. Perform
Case Cover Replacement
Procedure
.
9. Perform the Monitor and Pedestal
Replacement Procedure
.
10. See the Retest After Repair.
