Lincoln Electric VRTEXTM 360 SVM200-A - Manual (Page 144)

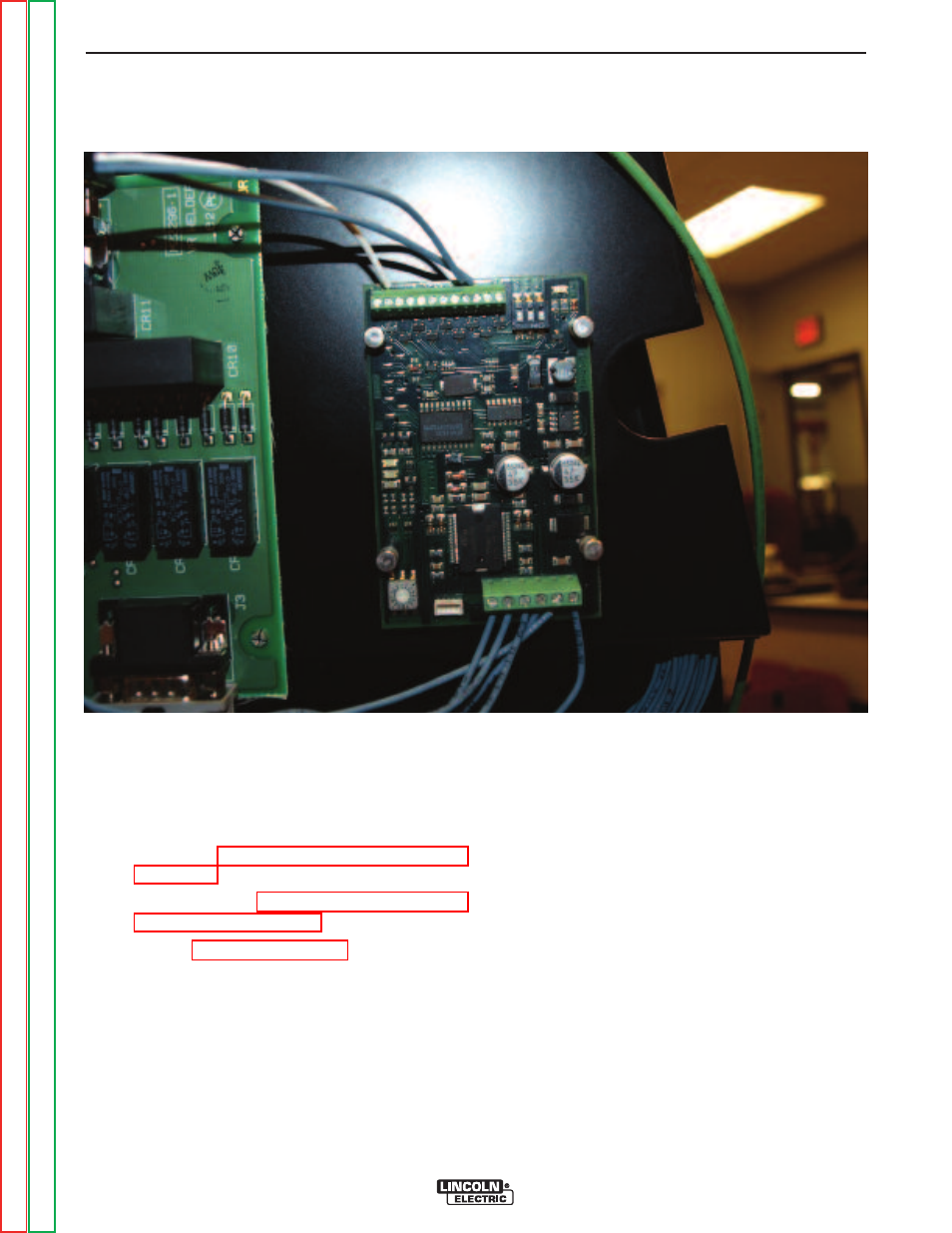

FIGURE F.40 – CONTROL BOARD LEAD LOCATION
MOTOR CONTROL BOARD
REMOVAL AND REPLACEMENT PROCEDURE (continued)
REPLACEMENT PROCEDURE
1. Install the new Motor Control Board using the
previously removed nuts, bolts and spacers.
2. Connect all previously removed leads to their
proper terminals. See wiring diagram.
3. Perform
Case Cover Replacement
Procedure
.
4. Perform the Monitor and Pedestal
Replacement Procedure
.
5. See the Retest After Repair.
TROUBLESHOOTING AND REPAIR F-87 F-87
VRTEX TM 360
