Lincoln Electric VRTEXTM 360 SVM200-A - Manual (Page 170)

ELECTRICAL DIAGRAMS G-3
VRTEX™ 360

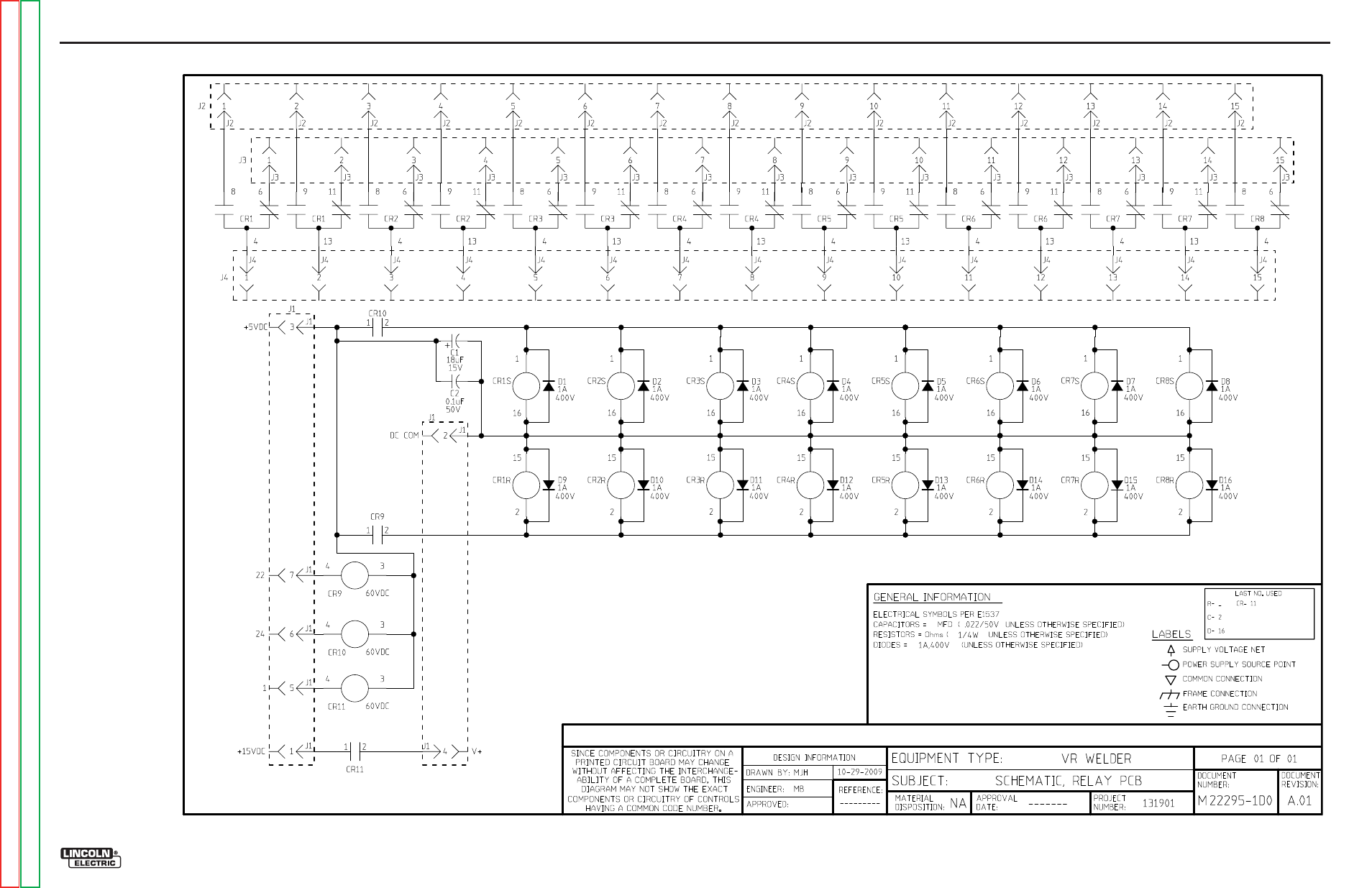

SCHEMATIC - RELAY PC BOARD - M22295-1D0
G-3
NOTE:
This diagram is for reference only. It may not be accurate for all machines covered by this manual.
