Drawer
Release
Tabs
(one tab on each side)

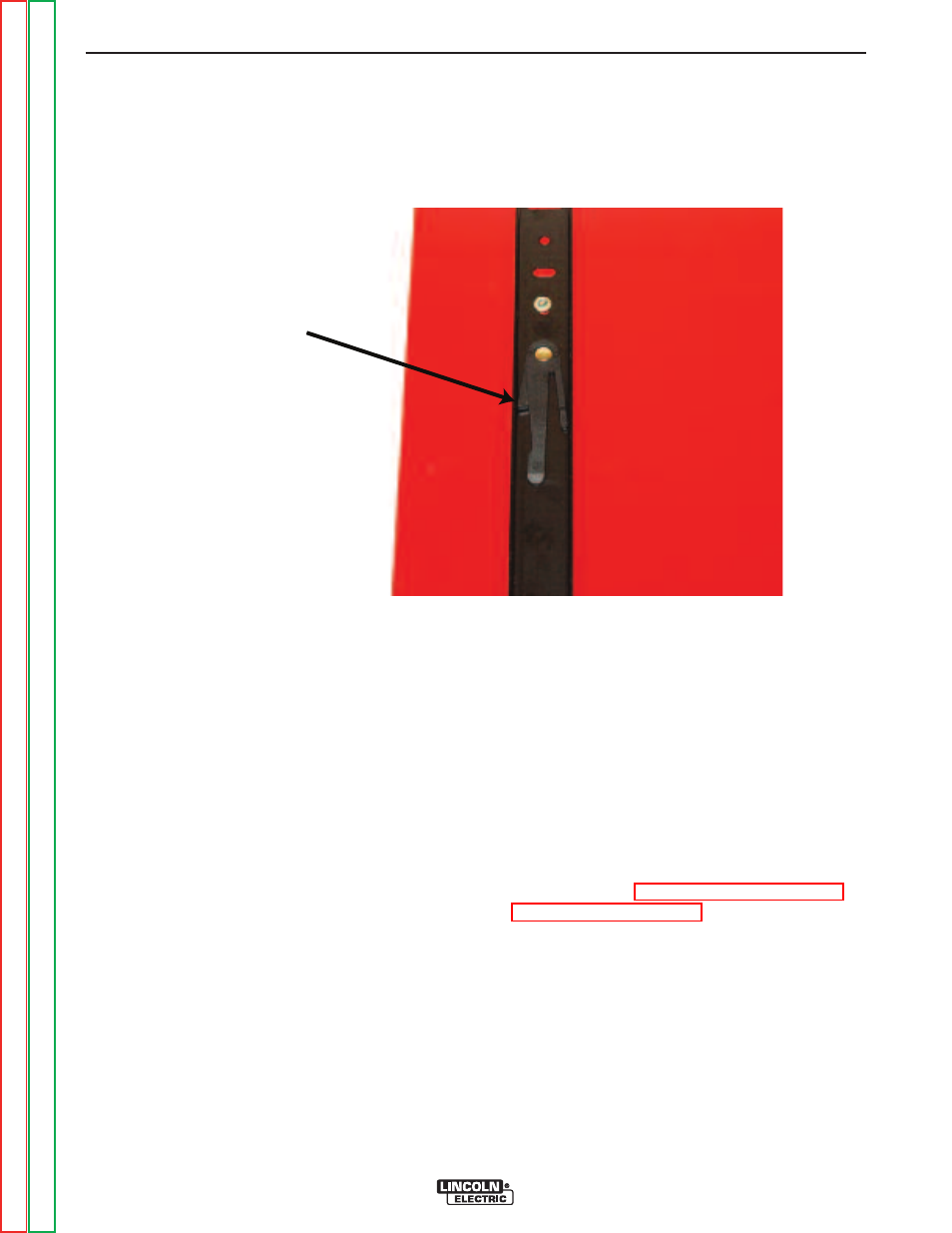

FIGURE F.16 – DRAWER RELEASE TABS
CASE COVER REMOVAL AND REPLACEMENT PROCEDURE (continued)
REPLACEMENT PROCEDURE
1. Replace left case side using previously
removed screws.
2. Replace right case side using previously
removed screws.
3. Install the coupon drawer mounting frame using
the previously removed screws.
4. Install coupon drawer by lining up tracks on bot-
tom of drawer with tracks on frame and push to
close.
5. Carefully negotiate monitor leads through hole
in case roof while setting in place.
6. Replace black plastic grommet previously
removed.
6. Secure case roof using previously removed
screws.
7. Perform the Monitor and Pedestal
Replacement Procedure.
TROUBLESHOOTING AND REPAIR F-45 F-45
VRTEX TM 360
