Lanier JP1030 - Manual (Page 80)

Replenishing Supplies
68
4

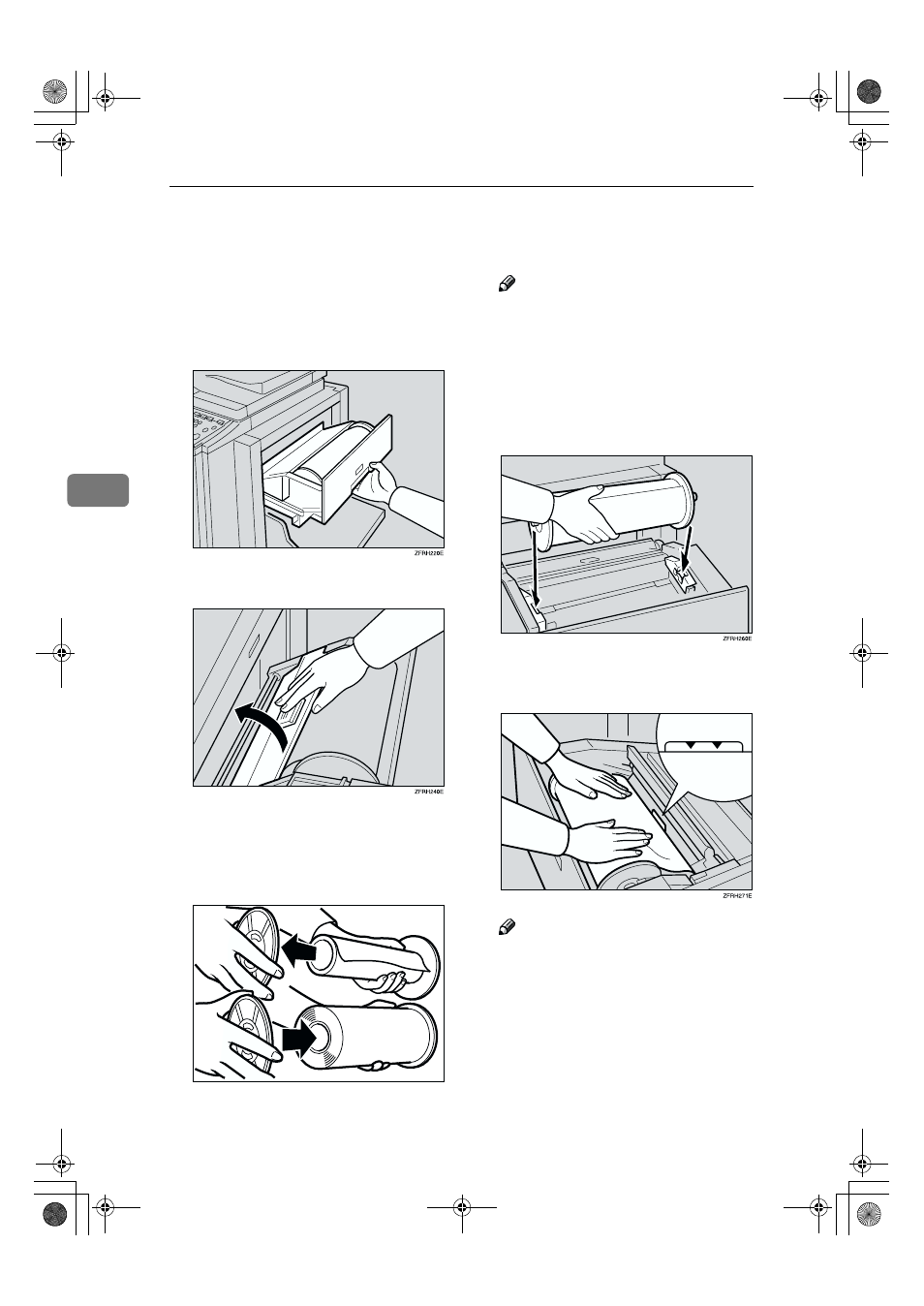

Master Roll Replacement
The master end indicator (
C) is lit
when it is time to replace the master
roll.
AAAA
Pull out the master tray.
BBBB
Open the plotter cover.
CCCC
Remove the used master roll and
pull out both spools. Then, insert
both spools into a new master
roll.
Note
❒ When the Master End indicator
lights, it is necessary to replace
the master roll even if some
master remains on the old roll.
DDDD
The new master roll must be posi-
tioned as shown in the illustra-
tion.
EEEE
Set the paper edge of the master
roll as shown.
Note
❒ Rotate the spools backward to
take up any slack in the master.
TSLT010E
