KTI Networks KS-2601 User Manual
Page 62
58

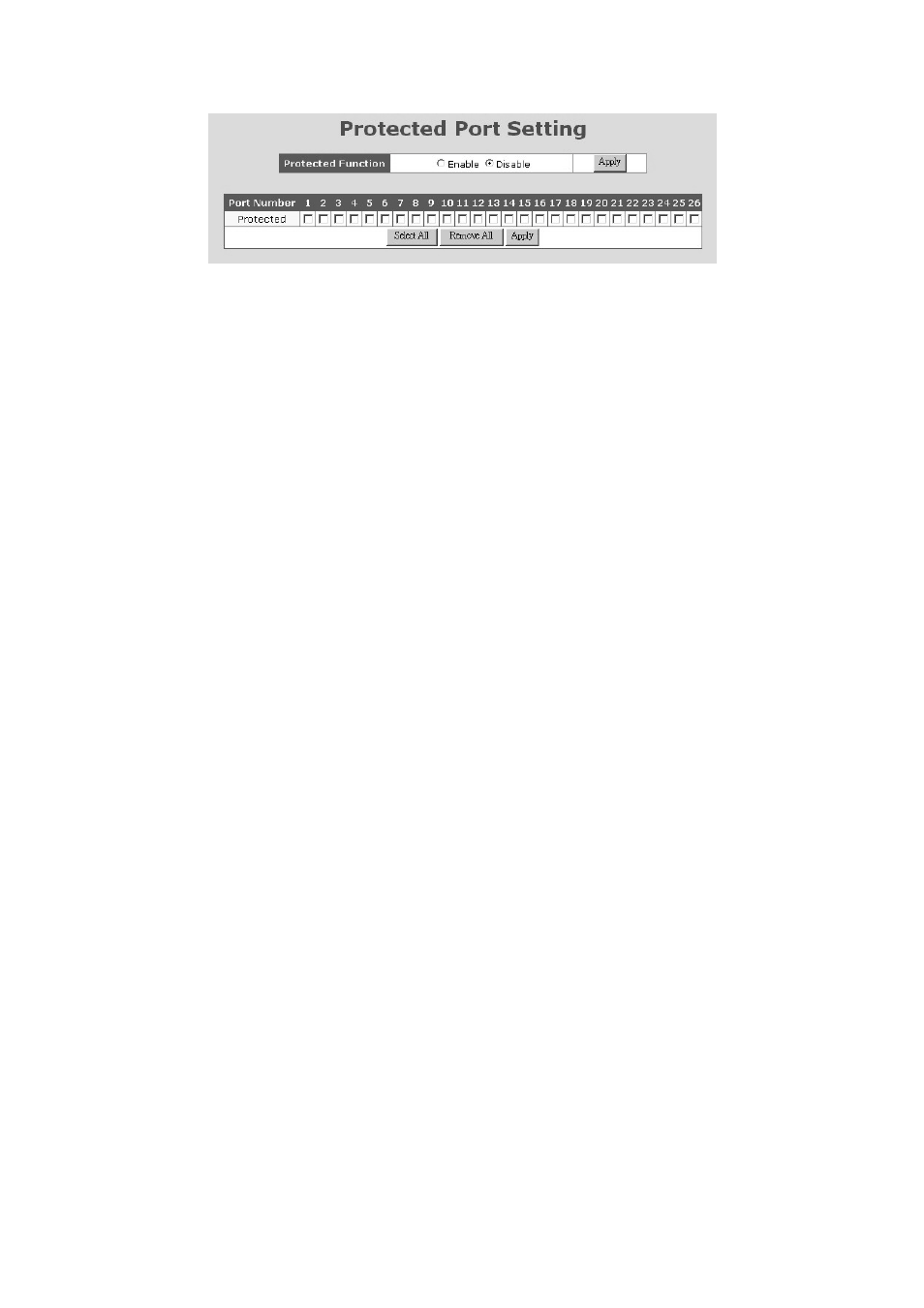

12. Protected Port Setting
The Protected Port function can isolate the traffic between these protected ports.
For example, Port 1,2,3 are marked as protected. So the traffic between Port
1,2,3 will be blocked, even they are in the same VLAN. But they still can
communicate with other ports in the same VLAN. This function is for security
application of switch.
Follow the steps to enable this function and complete the setting.
1. Select “Enable” and click [Apply] in “Protected Function”.
2. Select the ports that will be isolated from each other and click [Apply]. (You
can click [Select All] to select all ports and click [Remove All] to remove all
the selections.)
