Kenwood RC-D710 - Manual (Page 60)

VGS-

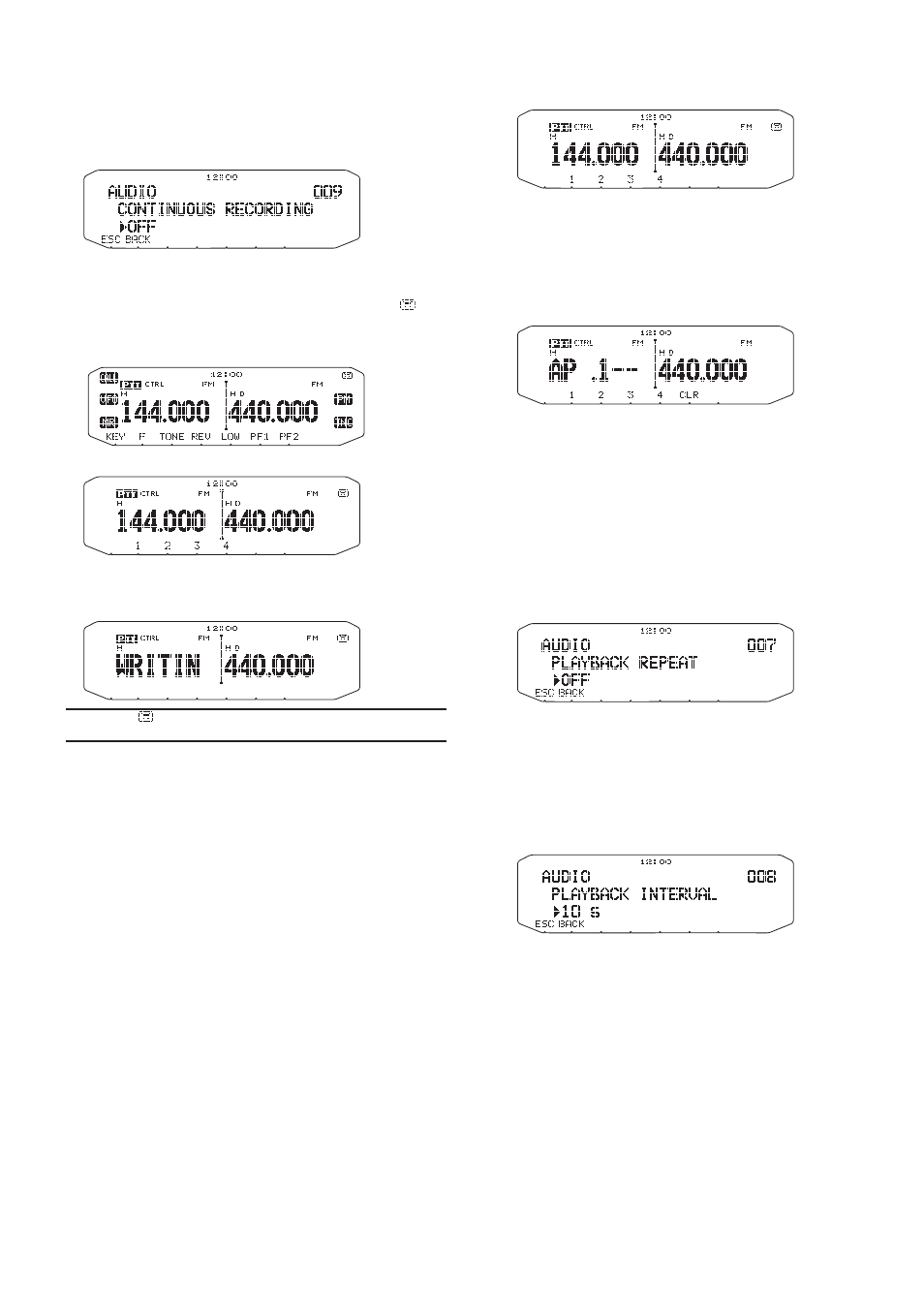

■ Continuous Recording
Received signals on the control band are continuously
recorded, with the memory retaining the last 30
seconds of recorded signals.
1 Enter Menu mode and access Menu 009.
2 Set the Continuous Recording to ON (or OFF).
• When selecting “ON”, Continuous Recording turns
ON. When the control band squelch opens, the
icon appears on the display and Received signals are
recorded.
• Received signals are saved in the SRAM memory.
3 Press the PF key programmed as [VGS].
4 Press [4] (1s).
• Up to 30 seconds of received signal recordings from
the SRAM memory are written to channel 4.
Note: The icon does not appear during playback, in Repeater
mode, or in Remote Control mode.
■ Playback
1 Press the PF key programmed as [VGS].
• When preparing to transmit, press the [PTT] switch
before pressing the channel number (1 - 3) key.
2 Press the key for the VGS channel number you
want to playback: [1], [2], [3], or [4] (when the
Continuous Recording is ON).
• The recording saved in the channel you selected is
played back.
• To end playback at any time, press [CLR].
• Playback signals are output from the PTT band side.
Use the [BAND SEL (VOL)] of the PTT band to adjust
the speaker volume.
• To exit, press [VGS] again.
• During playback, you can switch to any of recordings
1, 2, 3, or 4 by pressing the appropriate key.
■ Playback Repeat
You can set messages to be repeatedly played back.
1 Enter Menu mode and access Menu 007.
2 Set the the Playback Repeat function to ON or OFF.
■ Playback Repeat Interval
If the Playback Repeat function is activated, you can
set a time interval for how often the memo/message is
played back.
1 Enter Menu mode and access Menu 008.
2 Set the interval from 0 to 60 seconds.
