PACKET-
COM PORT SPEED
You can adjust the speed at which the computer and
transceiver exchange information, when the transceiver is
connected to your computer.

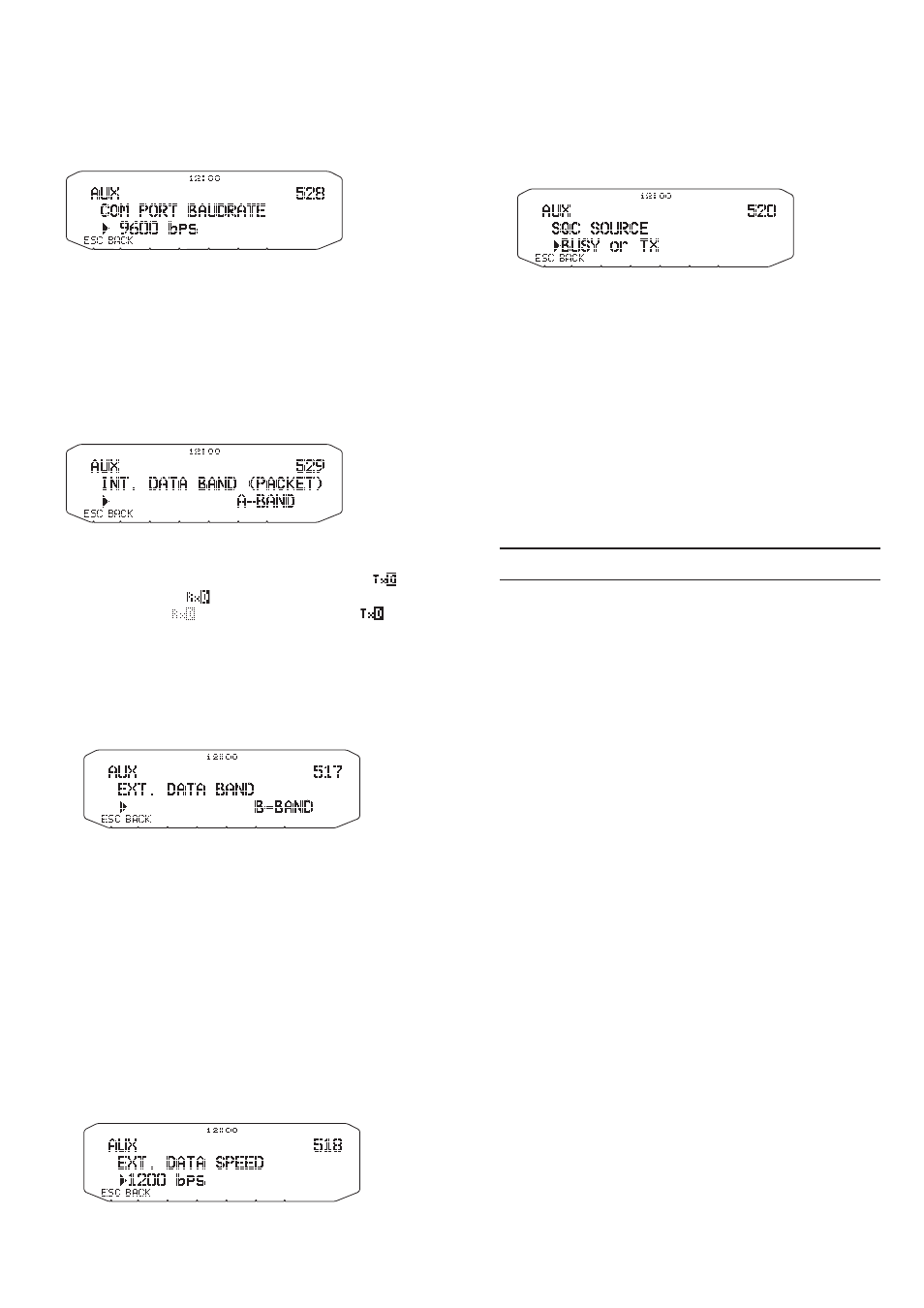

1 Enter Menu mode and access Menu 528.
2 Set the COM port speed to 9600, 19200, 38400, or
57600 bps.
• Turning the power ON/OFF will change the port speed
setting.
DATA BAND
Select how data will be transmitted and received on the
TM-V71.
1 Enter Menu mode and access Menu 529.
2 Set the data band to A-BAND (A band receives and
transmits), B-BAND (B band receives and transmits),
TX:A-BAND RX:B-BAND (A band transmits ( ) and
B band receives ( )), or RX:A-BAND TX:B-BAND (A
band receives ( ) and B band transmits ( )).
USING OTHER TNC'S WITH THE TM-V7 DATA
TERMINAL
n External Data Band
1 Enter Menu mode and access Menu 517.
2 Set the data band to A-BAND (A band receives
and transmits), B-BAND (B band receives and
transmits), TX:A-BAND RX:B-BAND (A band
transmits and B band receives), or RX:A-BAND TX:
B-BAND (A band receives and B band transmits).
n DATA Terminal Speed
Select 1200 or 9600 bps for the data transfer rate,
depending on TNC.
1200 bps: Transmit data input (PKD) sensitivity is 40
mV
p-p
, and input impedance is 10 kΩ.
9600 bps: Transmit data input (PKD) sensitivity is 2
V
p-p
, and input impedance is 10 kΩ.
1 Enter Menu mode and access Menu 518.
2 Set the data speed to 1200 or 9600 bps.
n SQC Output Setting
You can set the condition for which the SQC output
terminal becomes active.
1 Enter Menu mode and access Menu 520.
2 Set the SQC output activation method to one of the
following:
• OFF: SQC output remains inactive.
• BUSY: When a signal is received on the data band,
the SQC output becomes active.
• SQL: While CTCSS/DCS is ON and a matching signal
is received, the SQC output becomes active. While
CTCSS/DCS is OFF, the SQC output becomes active
when a busy signal is received.
• TX: While transmitting, the SQC output becomes
active.
• BUSY.TX: When the conditions of BUSY and TX
(above) are met, the SQC output becomes active.
• SQL.TX: When the conditions of SQL and TX (above)
are met, the SQC output becomes active.
Note: The activation type (logic) can be changed using the MCP-
2A software ([Edit] - [Data Terminal] - [SQC Output Logic]).
