Kodak 6B7198 User Manual
Page 74
Using the Long Roll Accessory
D-10
May 2002
CAUTION: When installing the mounting screws in the next step, use
care to avoid
•
dropping the screws inside the scanner
•
cross threading the screws
6. Install, but do not fully tighten, the rear mounting screw.
7. Hold each of the two mounting screws at the angle of the holes
(approximately 45 degrees) and install, but do not tighten, the screws.
CAUTION: In the next step, do not overtighten the mounting screws.
8. Using the long screwdriver provided, tighten the 3 mounting screws until you
feel resistance.

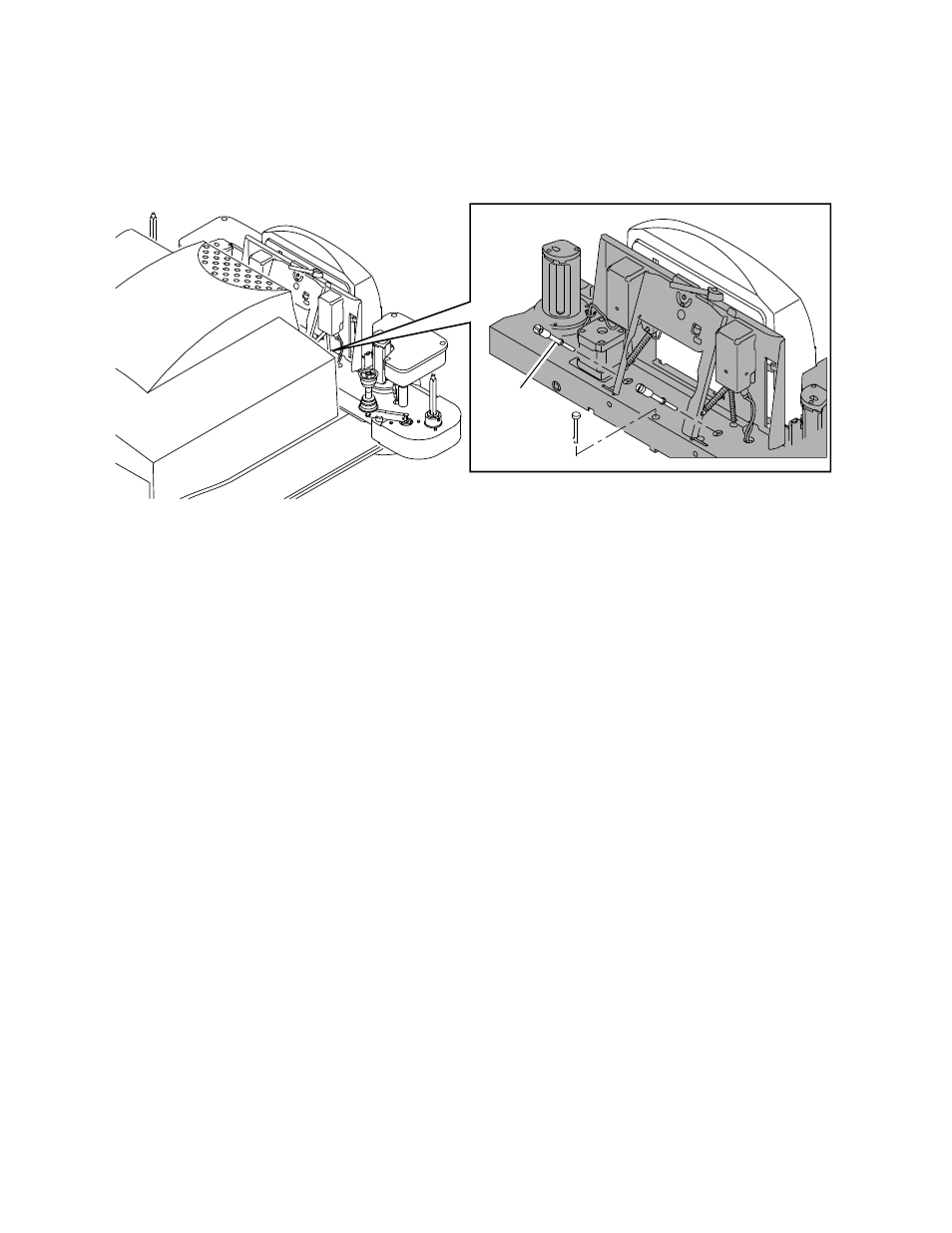

P192_1543BC
P192_1543BCA
slotted screw
screws
mounting
rear mounting
screw
