Programming the left sensor – Kodak 6B7198 User Manual
Page 103
Using the Long Roll Accessory
May 2002
D-39
Programming the Sensors for the Long Roll
Accessory
Power on the scanner.
The display on the left sensor will be inverted.
Programming the Left Sensor

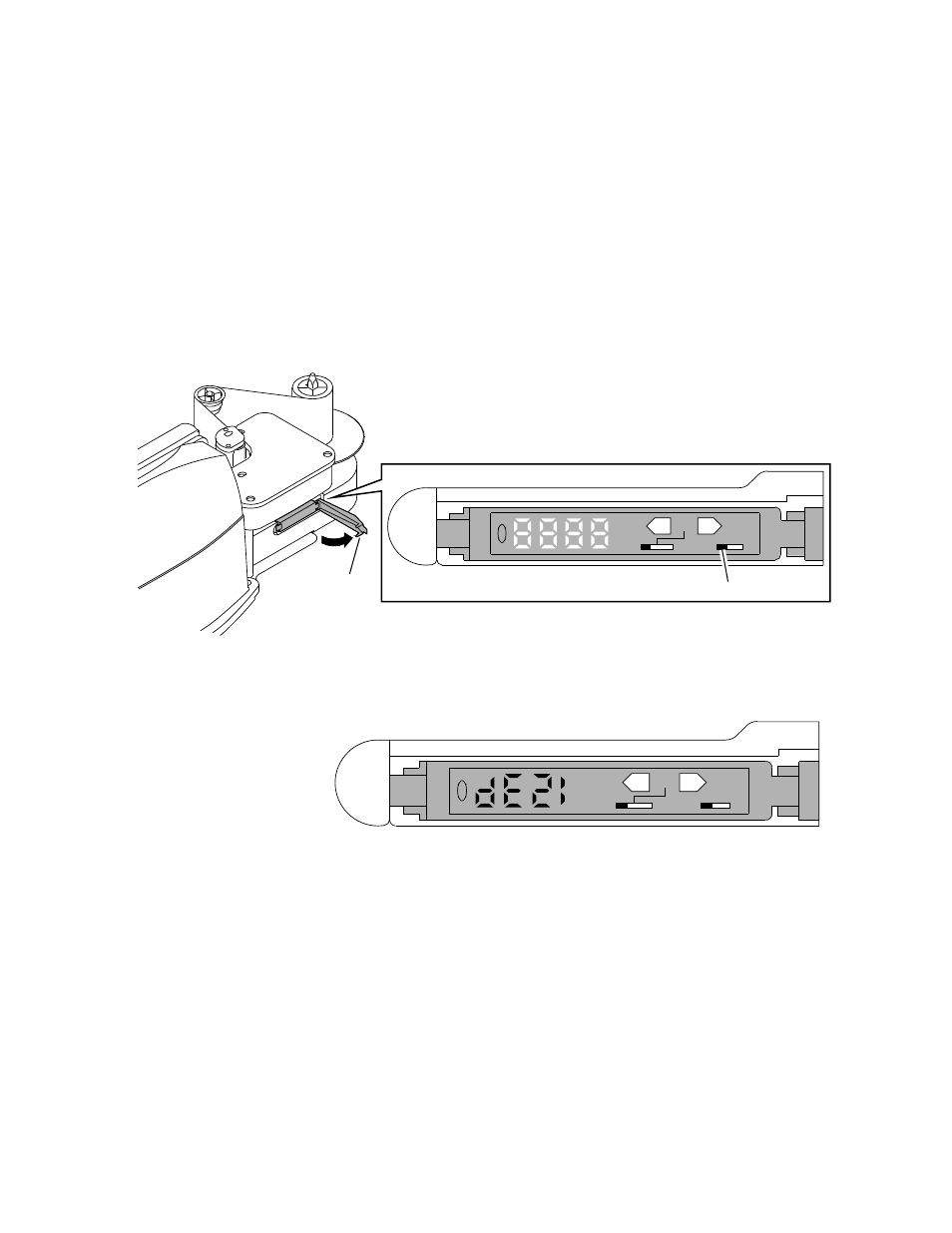

1. Open the plastic cover on the left display.
2. Make sure the operation mode selector is set to L.
NOTE: L means that light triggers high numbers. D means that dark triggers
high numbers.
3. Move SET/ADJ/RUN to SET.
4. Press and hold MODE until d123 appears (123 is inverted).
5. Press TEACH.
P192_1555BC
L
D
RUN
SET
MODE
ADJ
TEACH
P192_1555BCA
plastic cover
operation mode selector
L
D
RUN
SET
MODE
ADJ
TEACH
