Controls and connections | Rear panel – 15
English
R
EAR PANEL

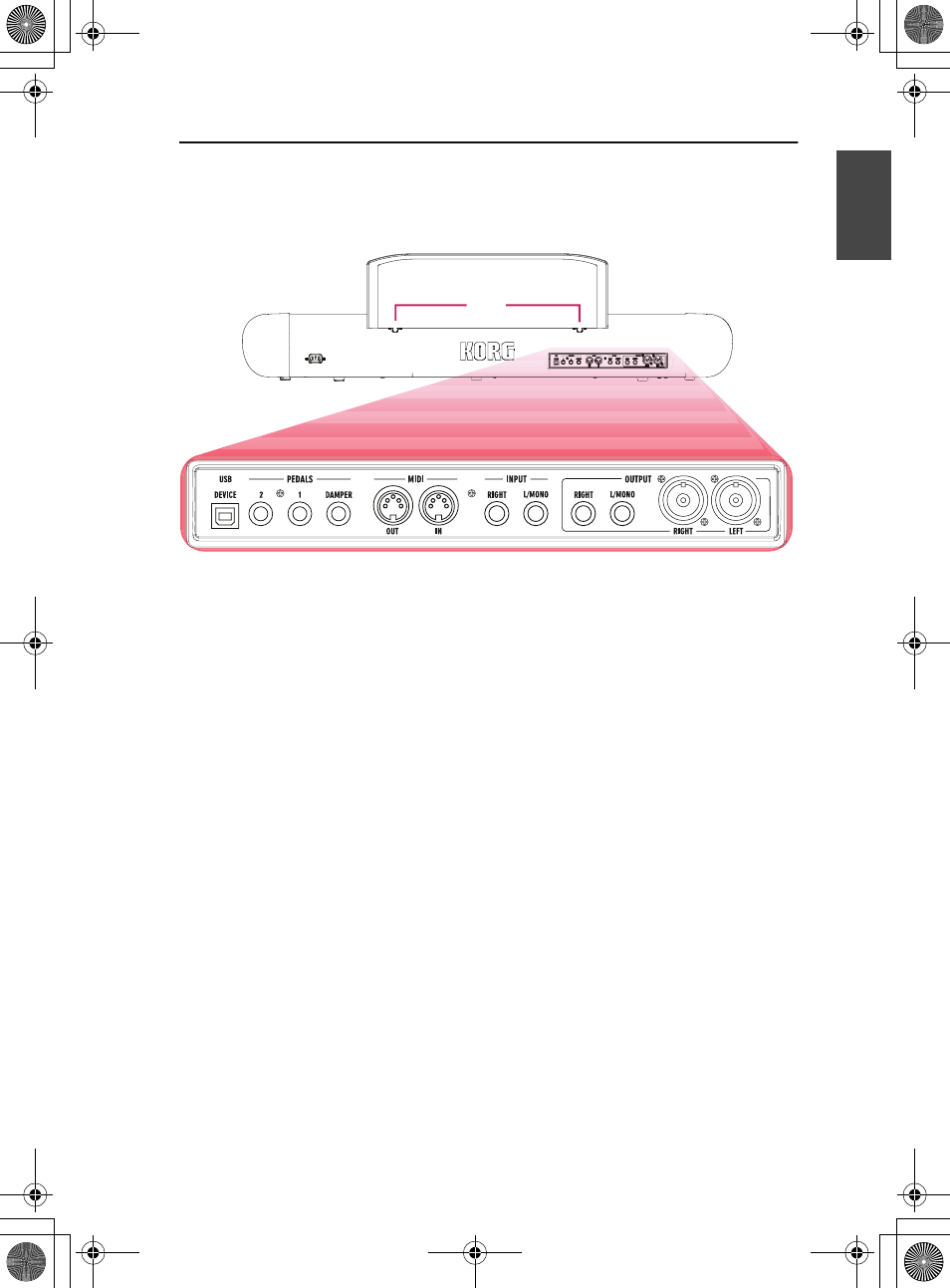

The back panel is where you can find most of the connections.
1 POWER connector
Connect the included IEC power cable here.
2 MUSIC STAND holes
A music stand comes standard with your SV-1. Insert its legs into these two ded-
icated holes.
3 USB DEVICE connector
Use this connector to connect a computer for sequencing (this doubles the MIDI
ports), or for using the SV-1 Editor software for fine editing. Before using this
connector, please install the KORG USB-MIDI Driver (the relevant instructions
are provided together with the MIDI Driver on the Accessory Disk, or can be
downloaded from our web site).
4 PEDAL jacks (DAMPER, 1, 2)
Connect the supplied Korg DS2H pedal to the DAMPER jack. Connect a foot-
switch to PEDAL 1 and either a footswitch or an expression pedal to PEDAL 2.
DAMPER always operates as a damper pedal. Use it to connect the supplied Korg
DS-2H damper pedal.
