Sanyo C4272R S/C User Manual
Page 33

33
X

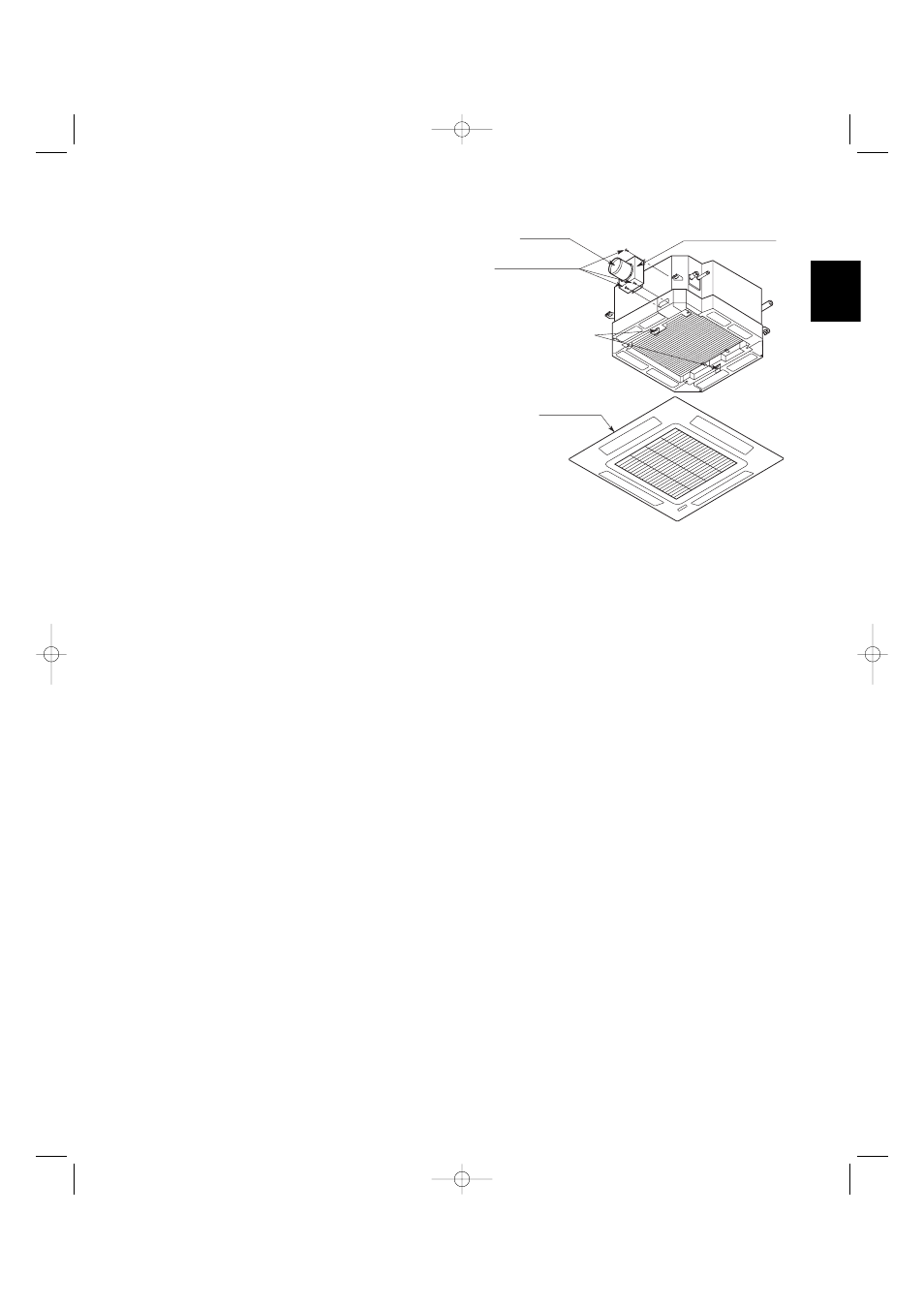

(d) Installing the ceiling panel
●
Attach the ceiling panel to the chamber. Drawing the
panel downwards sets the panel in position temporarily
with the panel catch (at 2 locations).
●
Remove the socket cover of the air-intake plenum and
pass the 8P sockets through it. (Fix the panel lead wire
with the chamber side clamp.) (Fig. 3-17)
●
Connect the 8P socket (electrical component box side)
to the 8P socket (ceiling panel side) of the indoor unit
electrical component box.
●
Reattach the socket cover.
Ceiling panel
Panel catch
Installation screws
(M4
× 1/2 in.)
Duct
connection
flange
Duct connection box
Fig. 3-18
07-115 SSHP_II 5/7/07 3:59 PM Page 33
