CHAPTER 2 – ADDITIONAL DETAILS FOR INSTALLING YOUR INTERACTIVE
WHITEBOARD SYSTEM
Correcting Alignment Errors
Alignment errors occur when the projected image isn’t perpendicular to the screen.
Alignment errors can occur when you mount the SMART UF65 or SMART UF65w
projector and the SMART Board 600 or D600 series interactive whiteboard on an
uneven surface or a wall that has obstructions, or if you swivel the SMART UF65 or
SMART UF65w projector too far from your SMART Board 600 or D600 series
interactive whiteboard’s vertical center.
Use the instructions in the included
to eliminate most image alignment issues.
NOTES
•
If you move your interactive whiteboard system to a new location, you must
readjust it.
•
If your projector requires service, you must adjust the replacement projector.

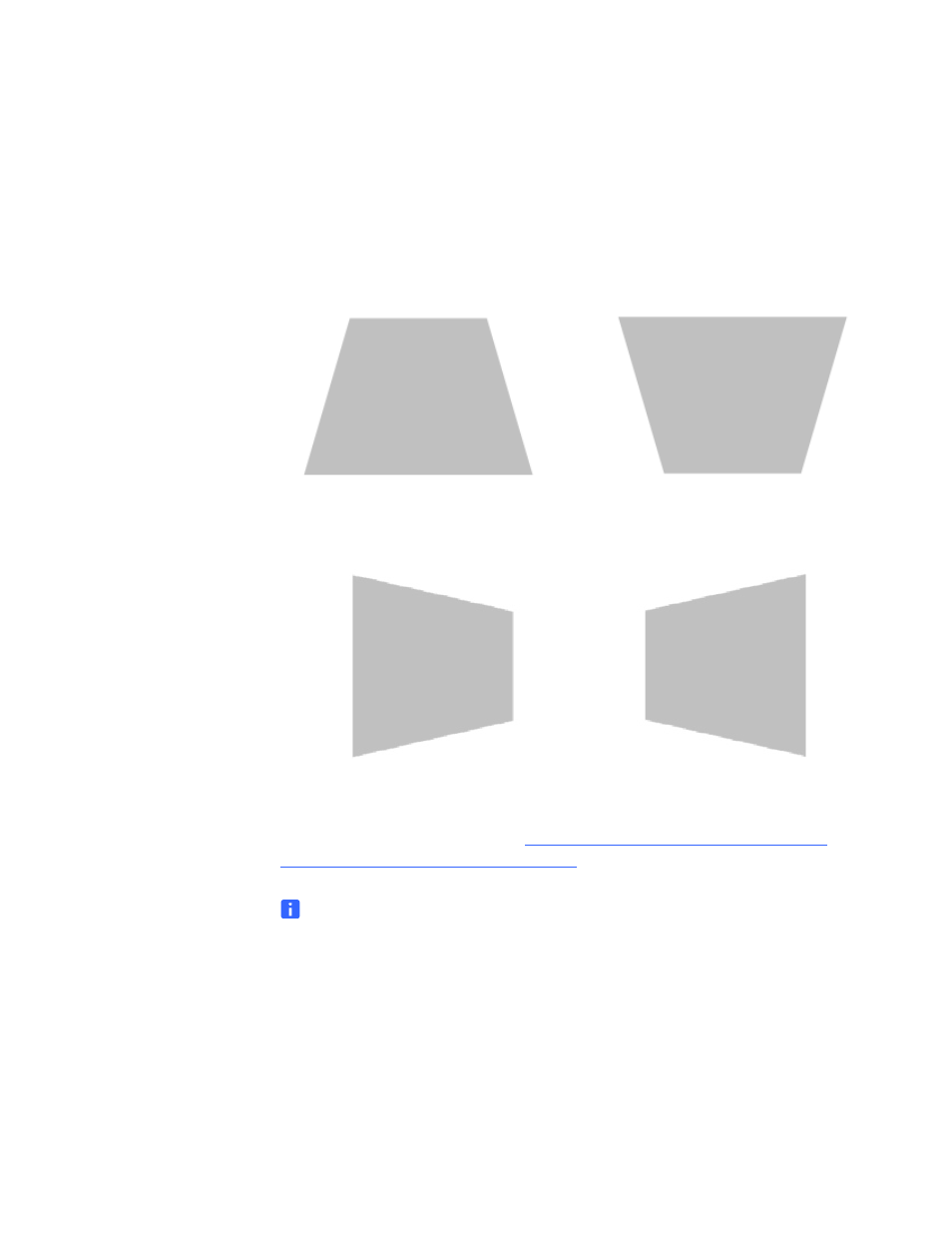

From the projector, the image path is
shorter along the top.
From the projector, the image path is
shorter along the bottom.
From the projector, the image path
is shorter along the right side.
From the projector, the image path
is shorter along the left side.
