SBD TANK TYPE HEATERS
SERVICE HANDBOOK
Technical Training Department
Ashland City, TN ©2003
3
INSTALLATION
This portion of the handbook will review some often overlooked installation considerations,
taking note of necessary installation requirements for the SBD 71120 through SBD 85500
model heaters. The installation manual covers most of these items in detail.
Clearance to Combustibles Table
MODEL A B C
120 - 200 1” (2.54CM) 1” (2.54CM) 1” (2.54CM)
250 - 305 2” (5.08CM) 2” (5.08CM) 2” (5.08CM)
365 - 400 3” (7.75CM) 3” (7.75CM) 3” (7.75CM)
500 5” (12.7CM) 5” (12.7CM) 5” (12.7CM)
A 24 inch clearance for all serviceable parts is recommended. Clearances may vary
between SBD models – See instruction manual or the label on the heater, for clearances
applicable to your specific model.
*20” (50.8CM) for 500 models.

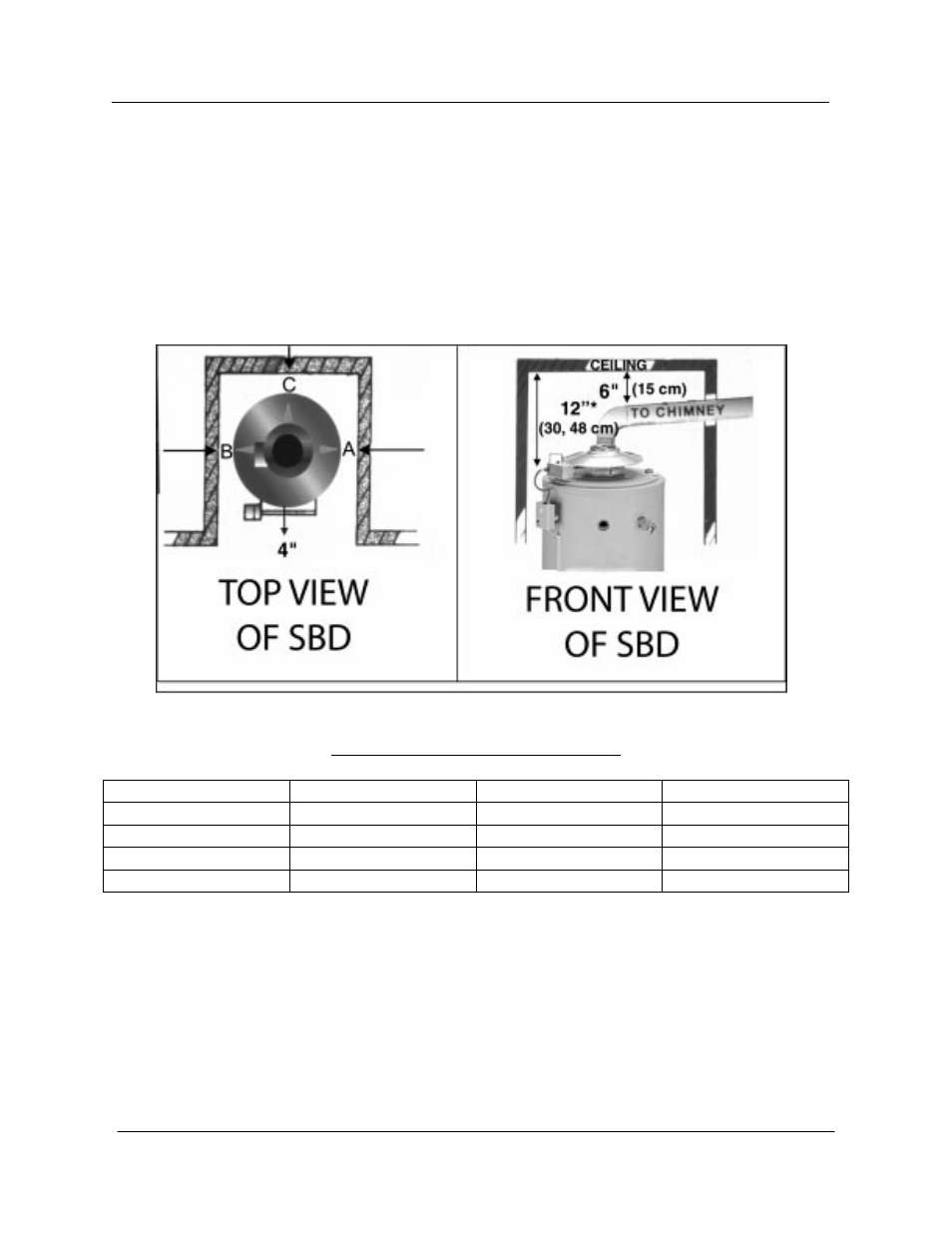

CLEARANCES FROM COMBUSTIBLES
