SBD TANK TYPE HEATERS
SERVICE HANDBOOK
Technical Training Department
Ashland City, TN ©2003
15
POWER VENT KITS FOR SIDEWALL VENTING
Water Heater Models Part Number
SBD-120-200 193933-0
SBD-250-500 193933-1
SBD water heaters can be used with power vent
kits for sidewall venting. State offers power vent
kits for use on installations with a maximum of
100 equivalent feet of vent piping. The power
vent kits also use type B vent materials. When
power venting, specific exterior clearances must
be maintained, as outlined in the National Fuel
Gas Code. (NFPA 54, ANSI A223.1, sec 7.8)

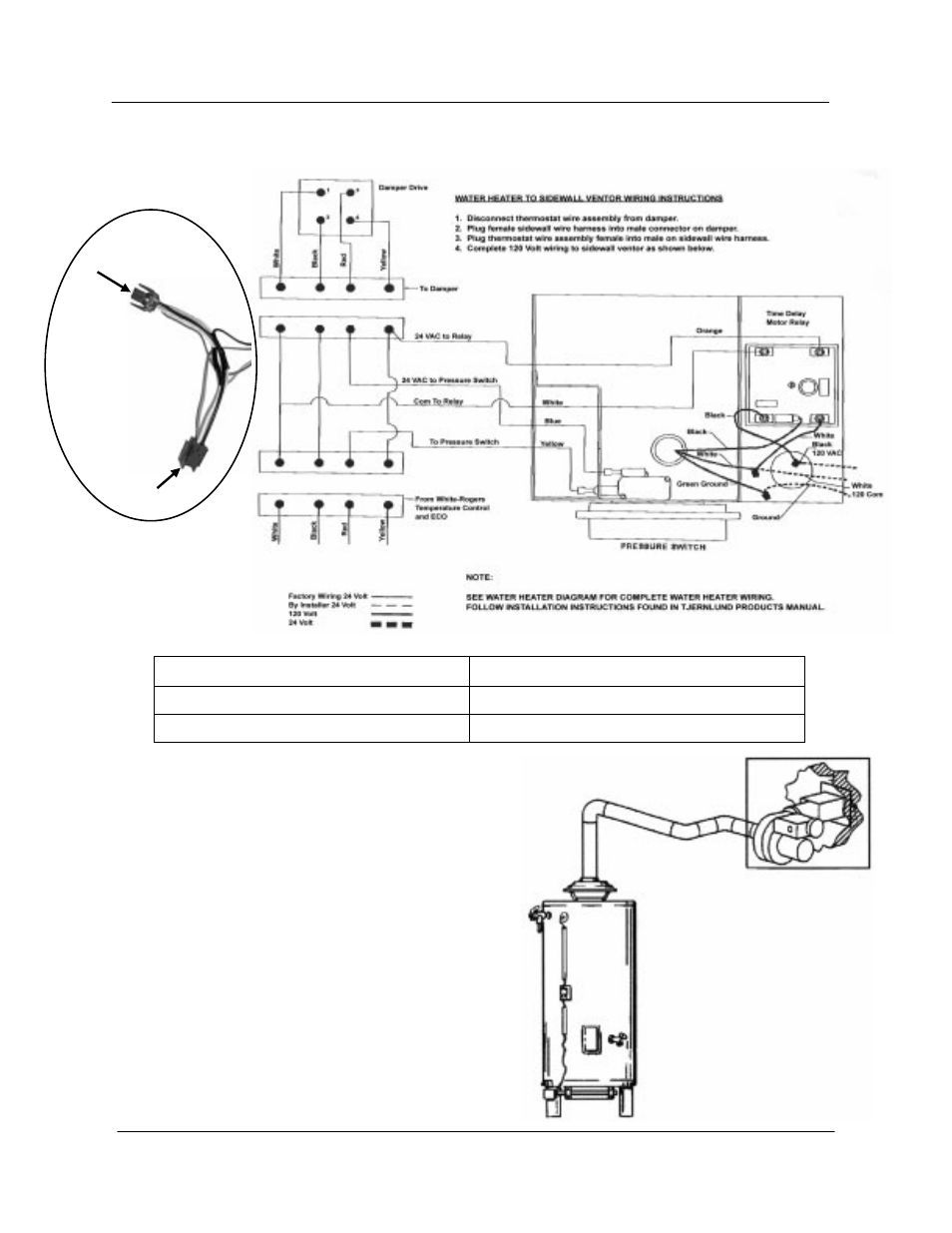

Male plug
to Cable
Female plug
to Damper
40’, Power Venter
cable with “Y”
connect
