DR300 Operator Manual
70
QR Code Command
QR Code
1. Command Syntax
ESC + BQ + NN+ a b c c (, d d e e f f ) , g n n n • • n, g h h h h n n n • • n
<1B>
16
<42>
16
<51>
16
N N a b c c (, d d e e f f ) , g n n n • • n, g h h h h n n n • • n
2. Description
Parameter
a “Error correction level (error correction)”
1: 70% (L)
2: 15% (M)
3: 30% (Q)
4: 25% (H)
b “Concatenation Mode”
0: Regular Mode
1: Concatenated Mode
c “Cell edge size specification Valid Range: 01-32
ex) cc = 04
d “Split Number of Concatenation Mode” Valid Range: 01-16
* A split number is a specification on how many split 2D codes (QR code)
are concatenated using the Concatenation Mode.
e “Sequential Number split with the Concatenation Mode”
Valid Range: 01-16
* The sequential number is the order of the split 2D code (QR code).
f “Concatenation Mode Parity Data” Valid Range: 00-FF
* The parity data is the data specified by the hex character which is
calculated from all print data of the split 2D code (QR code) by XOR.
g “Character Mode”
1: Numeric Mode
2: Alphanumeric Mode
3: Binary Mode
4: Kanji Mode (SJIS)
0: Auto Setting
h “Data Number” Valid Range: 0001-2953
n “Print Data”

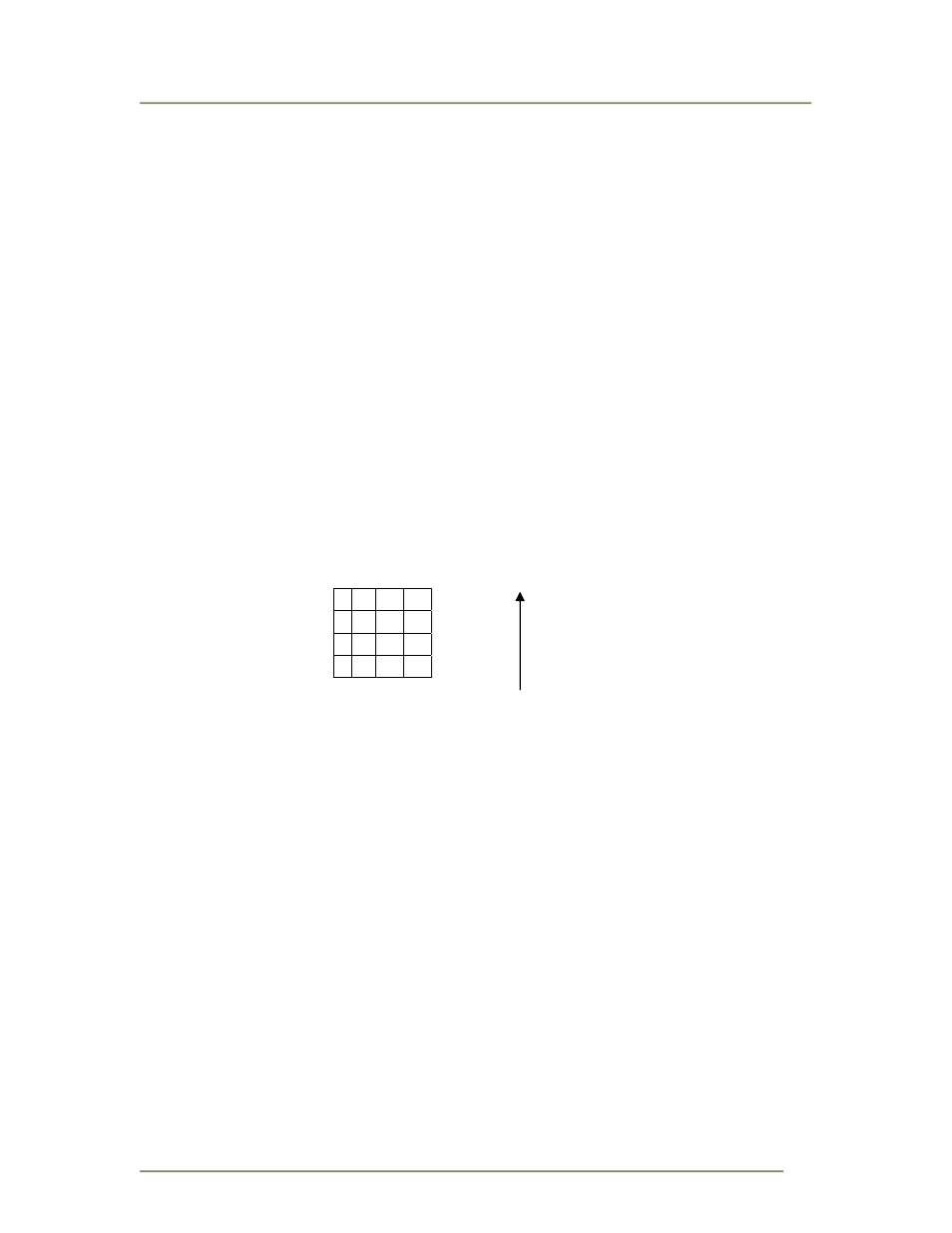

4 dot
4 dot Feed direction
