DR300 Operator Manual
25
Stack Position Adjustment, Small Tag (Less than 35mm)
• Set Stacker scale in between from [Standard pitch] to [Small pitch].

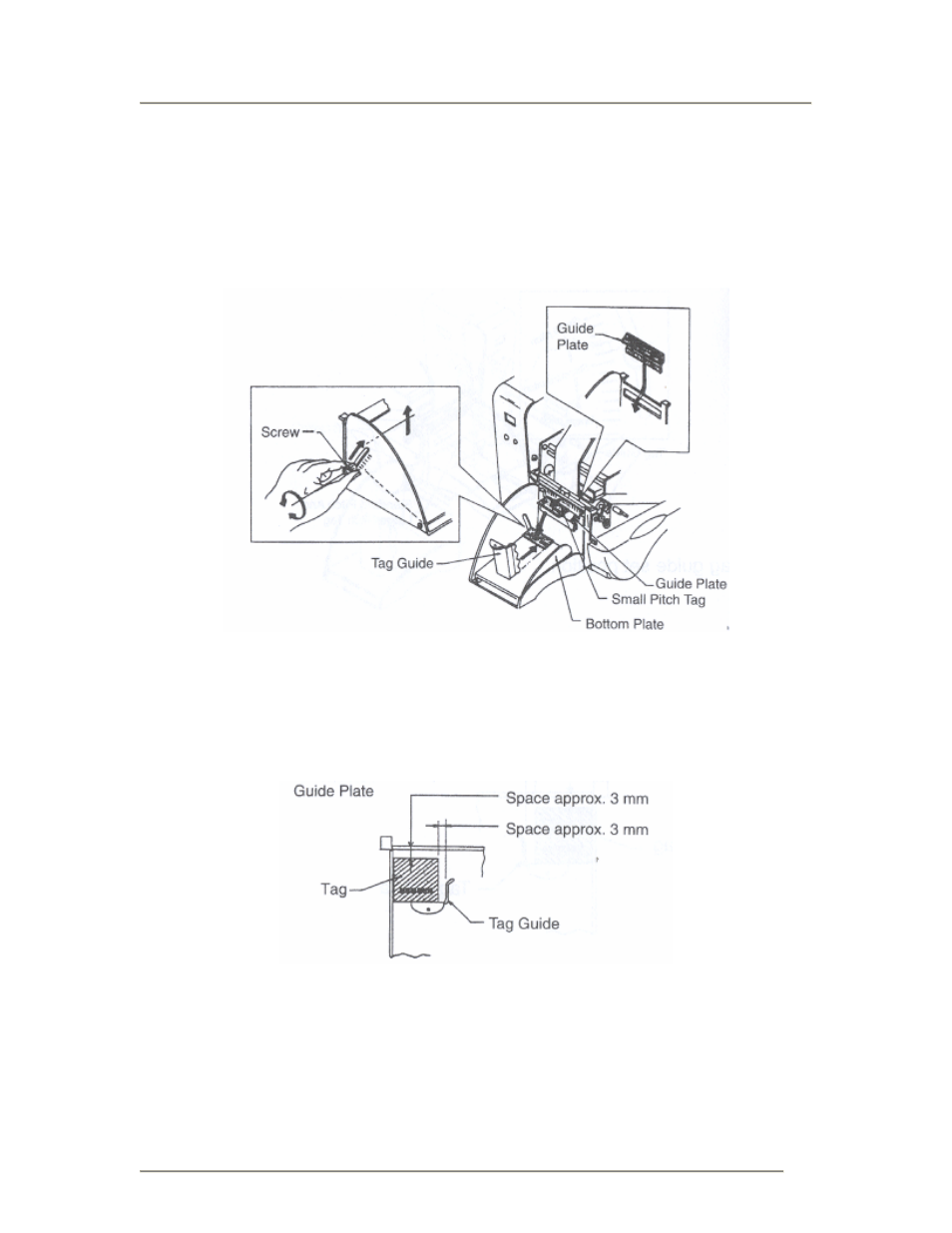

• Set Guide Plate to stacker as shown in the following drawing. This Guide Plate
prevents overturning when small pitch tag is issued.
• Determine Tag Guide position by matching to the size of tag to be cut.
Tag Guide Position
When setting Tag Guide, set it with space of approximately 3mm on printer main body
side and approximately 3mm on side of Tag as shown in the following drawing.
Chapter 4 - Setting of Label and Carbon Ribbon
