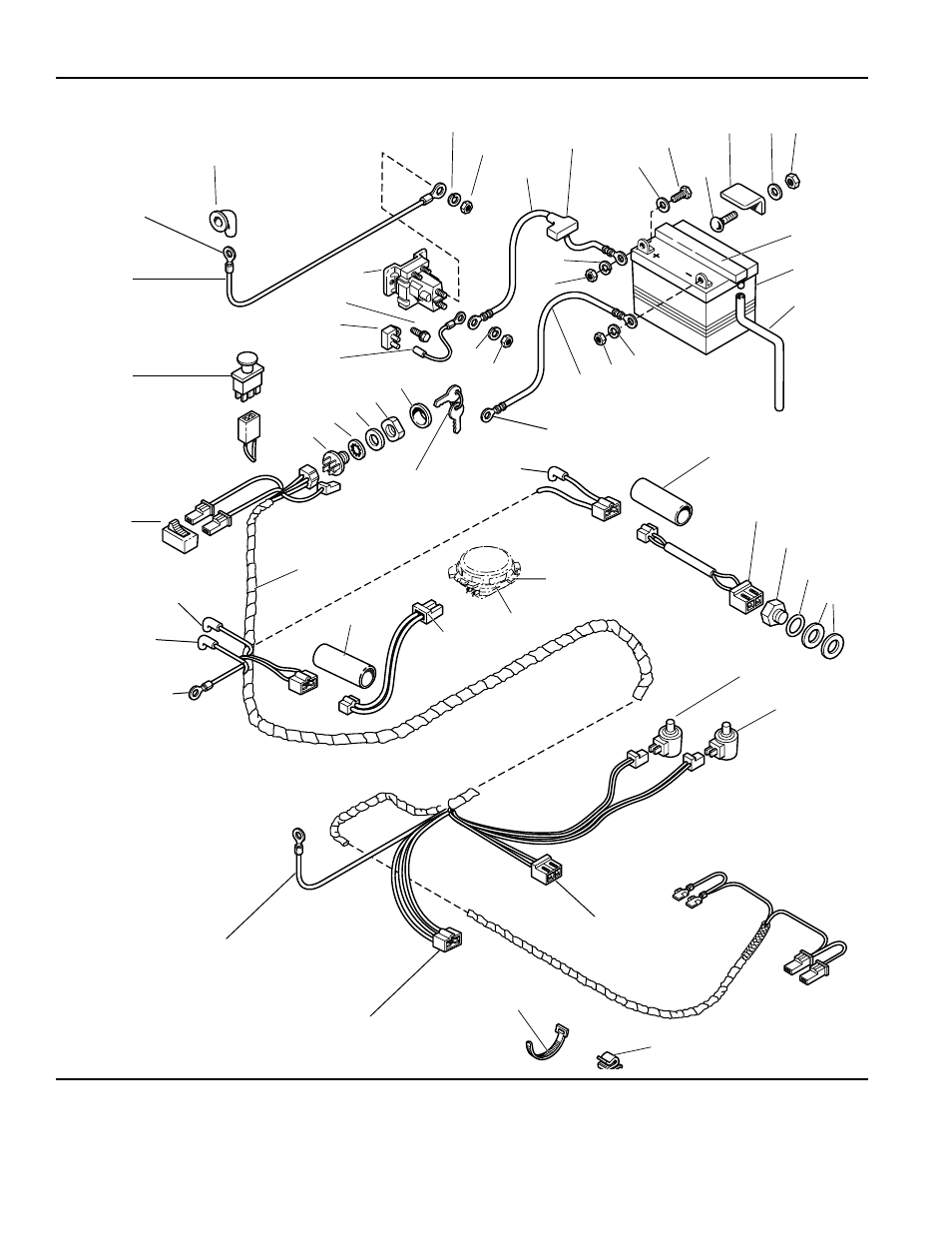

Simplicity REGENT 500 - Manual (Page 26)

Electrical Group - Gear Models
24 TP-400-2146-01-RG-SMA © Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
The above parts group applies to the following Mfg. Nos.:
1693074 Regent 14HP Gear
1693076 Regent 14HP Gear-Export
1693084 Regent 16HP Gear
1693086 Regent 16HP Gear-Export
1693092 514G, 14HP Gear
1693100 2514G, 14HP Gear
1693323 Regent 14HP Gear
1693331 Regent 14HP Gear-Export
1693339 514G, 14HP Gear
1693345 2514G, 14HP Gear
A-RG42310B
To Engine
Harness Plug
To Solenoid
(Black)
To Circuit
Breaker (Red)
To Negative
Battery Post
To Starter
Motor
To Solenoid
(Yellow)
To Engine
Ground Connection
To PTO Clutch
To Engine
Ground Bolt
See Seat & Seat Deck
Group for Seat Switch
1
2 3 4
5
6
7
13
14
16
17
18
19
20
21
25
22
23
26
27
31
32
33
34
35
36
37
38
39
40
30
22
28
29
23
28
29
8
20
24
8
9
10
11
12 12
15
37
