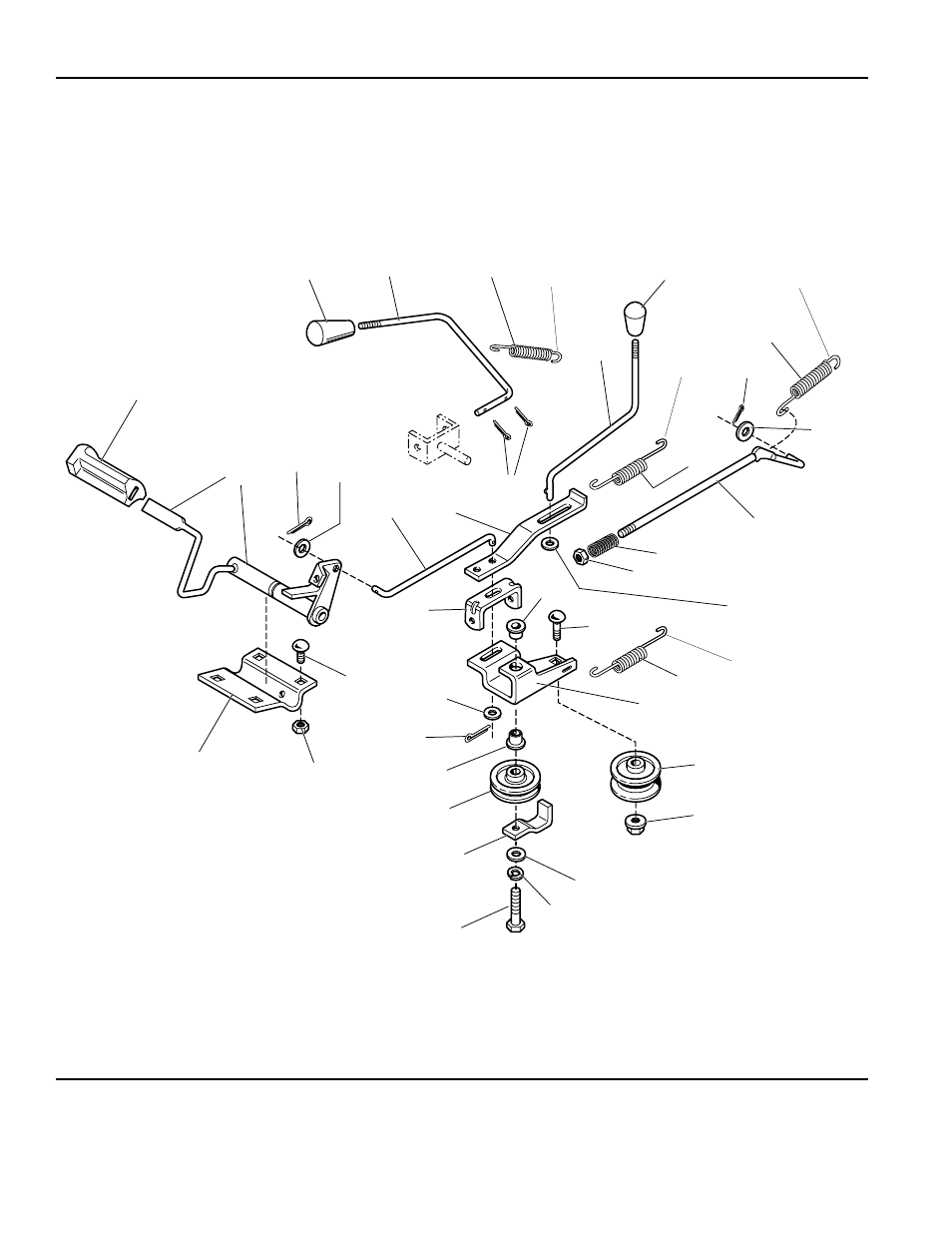

Drive Controls Group — Gear Models
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-RG42305B
The above parts group applies to the following Mfg. Nos.:
1693074 Regent 14HP Gear
1693076 Regent 14HP Gear-Export
1693084 Regent 16HP Gear
1693086 Regent 16HP Gear-Export
1693092 514G, 14HP Gear
1693100 2514G, 14HP Gear
1693323 Regent 14HP Gear
1693331 Regent 14HP Gear-Export
1693339 514G, 14HP Gear
1693345 2514G, 14HP Gear
Install in lanced
notch in top of
frame.
Install into
notch in
wrapper.
Hook under
Tinnerman Clip {See
Gear Transaxle
Drive & Belt Group}
To Top of
Frame.
