6-2
S UPER S ERVER 5014C-MF User's Manual

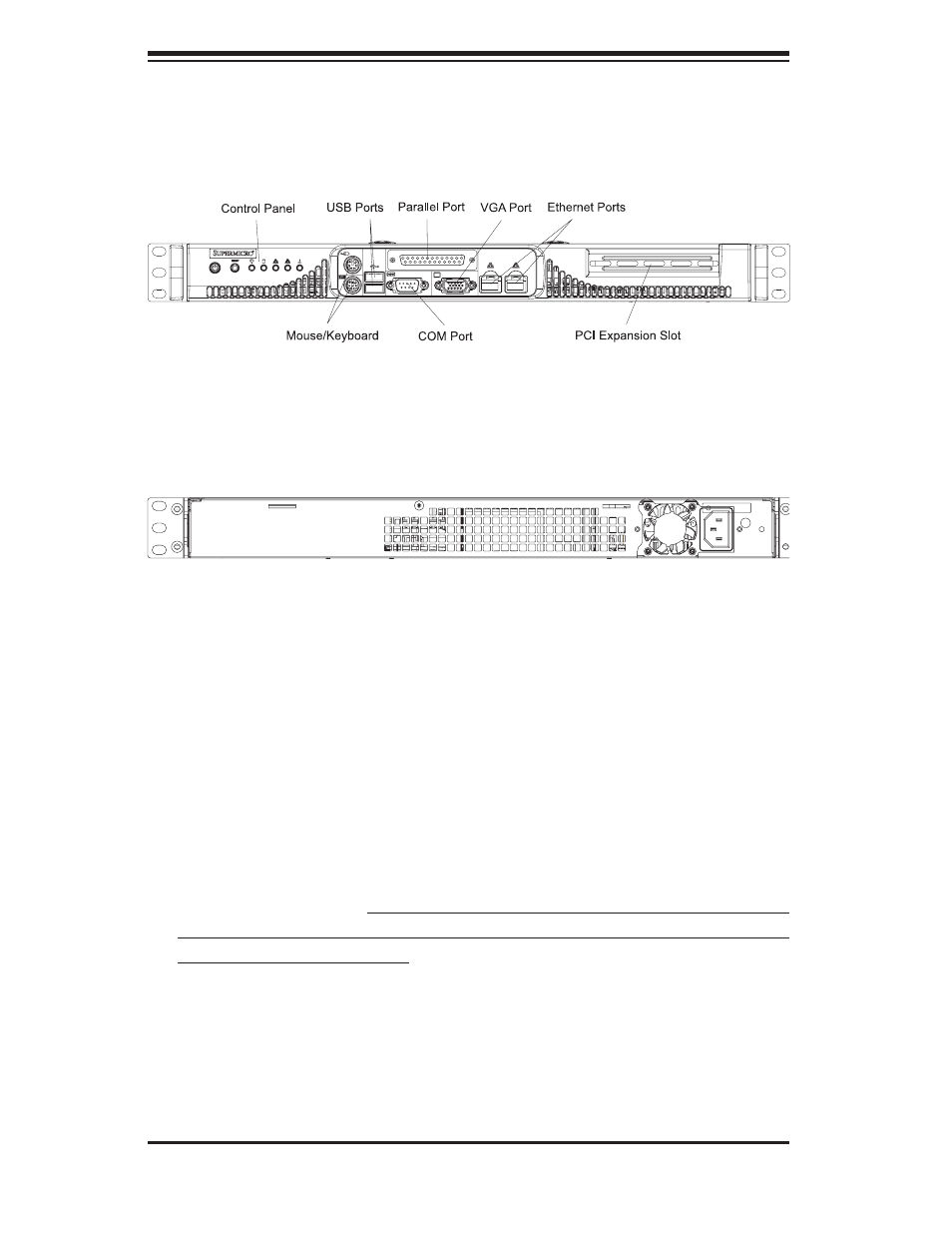

Figure 6-2. Chassis Rear View
6-2 Control Panel
The control panel (located on the front of the chassis) must be connected to the
JF1 connector on the motherboard to provide you with system control buttons and
status indicators. These wires have been bundled together in a ribbon cable to
simplify the connection. Connect the cable from JF1 on the motherboard to JP4
on the Control Panel PCB (printed circuit board). Make sure the red wire plugs
into pin 1 on both JF1 and JP4. Pull all excess cabling out of the airfl ow path. The
LEDs inform you of system status. See Chapter 3 for details on the LEDs and the
control panel buttons. Details on JF1 can be found in Chapter 5.
Figure 6-1. Chassis Front View
