5-4
S UPER S ERVER 5014C-MF User's Manual
5-4 I/O Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-2 below for the colors and locations of the various I/O ports, all are located
at the front of the chassis.

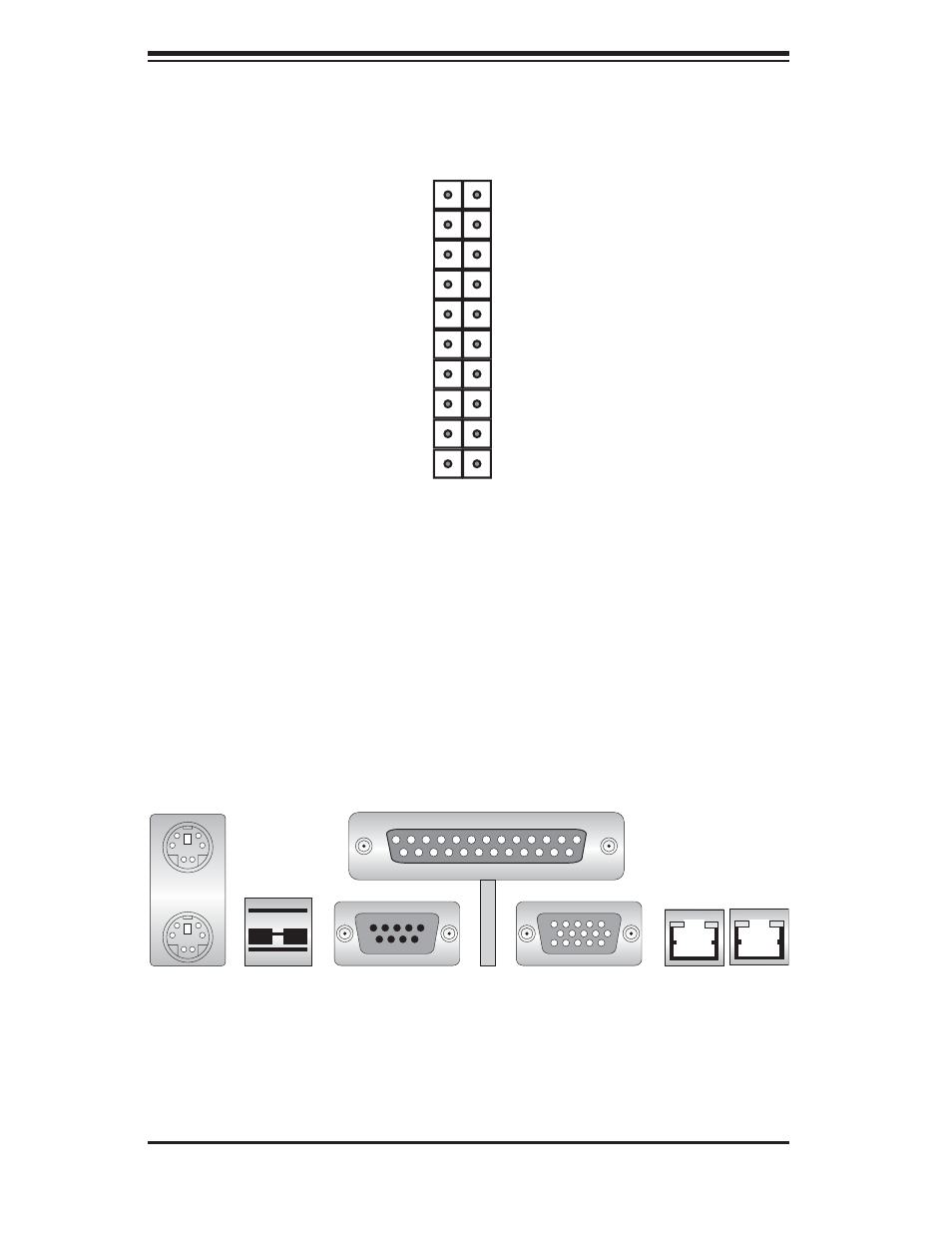

Figure 5-1. Control Panel Header Pins
Note: The COM2 port is a header on the motherboard, located near the PCI #1
slot at the corner of the motherboard.
Mouse (Green) Parallel Port (Burgundy)
JLAN1 JLAN2 Keyboard
(Purple)
COM1 Port (Turquoise) VGA Port (Blue) USB 0/1 Ports
Figure 5-2. I/O Ports
NMI
x (Key)
Vcc 5V Stby
Vcc 3V
Vcc 3V Stby
Vcc 3V Stby
Vcc 3V
Reserved
Reset (Button)
Power (Button)
Ground
x (Key)
Power On LED
IDE/SATA LED
NIC1 LED
NIC2 LED
OH/Fan Fail LED
Reserved
Ground
Ground
2 1
20 19
