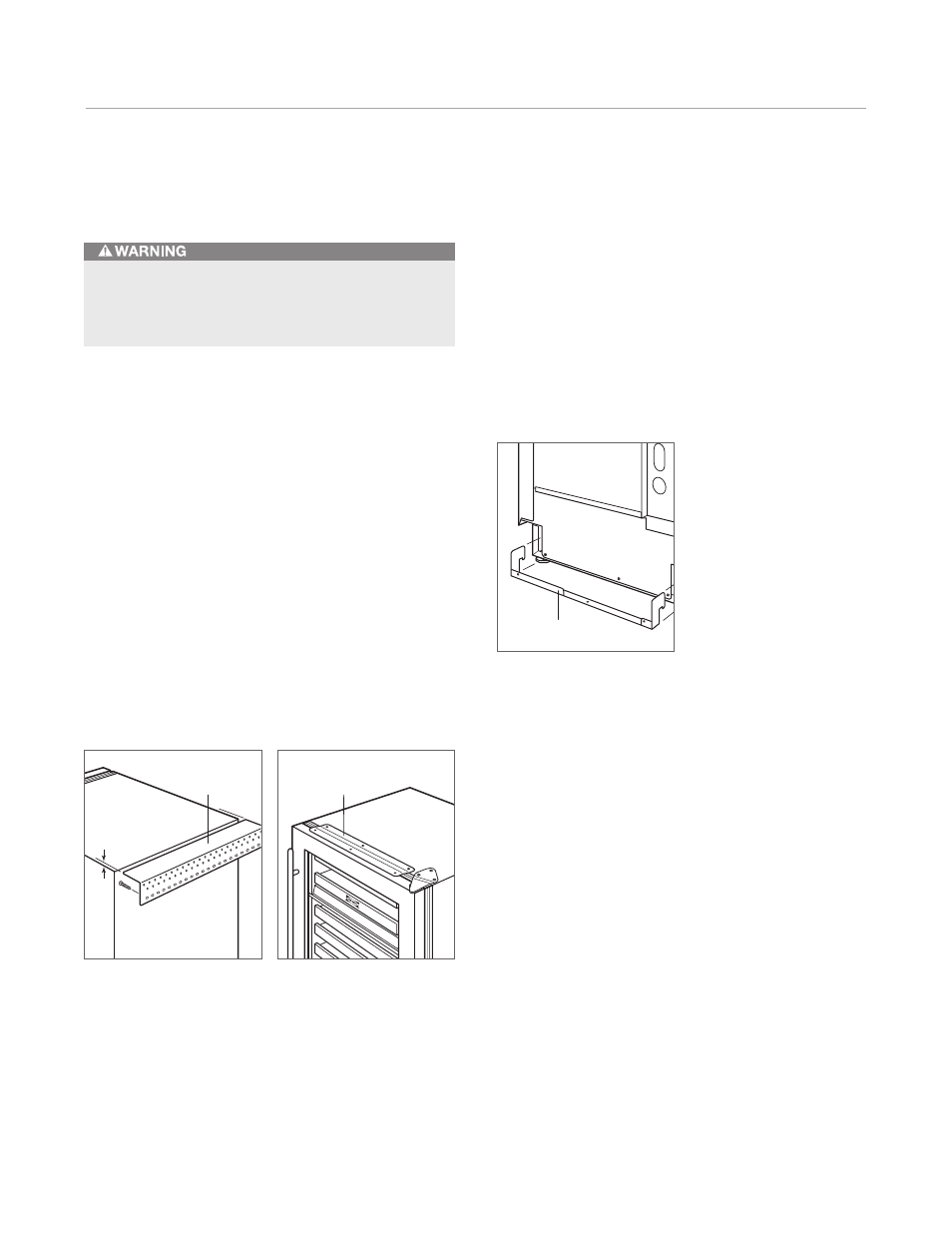

Anti-Tip Bracket Installation
MODEL 424FS
If you are installing the model 424FS in a space deeper
than 24 5 / 8 " (625), the anti-tip bracket must be installed no
more than 24 5 / 8 " (625) deep, so it engages the unit
properly. It is important that this measurement be made
from the front surface of the door, to the back of the anti-
tip bracket. Refer to the illustration below. An anti-tip bracket and hardware is provided with the wine
storage unit. The anti-tip bracket must be installed on a
solid base to prevent tipover in case several loaded wine
shelves are extended at the same time.
MODEL 424
The anti-tip bracket should be attached to the wall behind
the unit with the bracket flange located immediately above
the top of the unit. Refer to the illustration below.
A smaller metal ‘countertop’ bracket is also provided with
the model 424, for installations that need to be modified to
provide a secure surface for attaching the bracket. This
bracket will secure the front of the unit to the underside of
the countertop, above the unit. Refer to the illustration
below.
Models 424 and 424FS Installation 8
1 / 4 " (6)
ANTI-TIP
BRACKET
Anti-tip bracket (424). Countertop bracket
COUNTERTOP
BRACKET
To prevent the unit from tipping forward and provide a
stable installation, the unit must be secured in place
with the anti-tip bracket.
ANTI-TIP BRACKET
Anti-tip bracket (424FS).
