Models 424 and 424FS Installation 5
subzero.com
Models 424 and 424FS Installation
The model 424FS wine storage unit is designed to be
attractive in a stand alone setting. Model 424 must be
built in. Refer to the previous page for overall dimensions
and door swing clearances for models 424 and 424FS.
Make sure that the finished rough opening where the
model 424 wine storage unit is to be installed is properly
prepared. Refer to the illustration. The floor under the unit
must be level with the surrounding finished floor.
IMPORTANT NOTE: To operate properly, the door must
open a minimum of 90°. Use a minimum 3" (76) filler in
corner installations to assure a 90° door opening. Allow
enough clearance in front of the unit for full door swing.

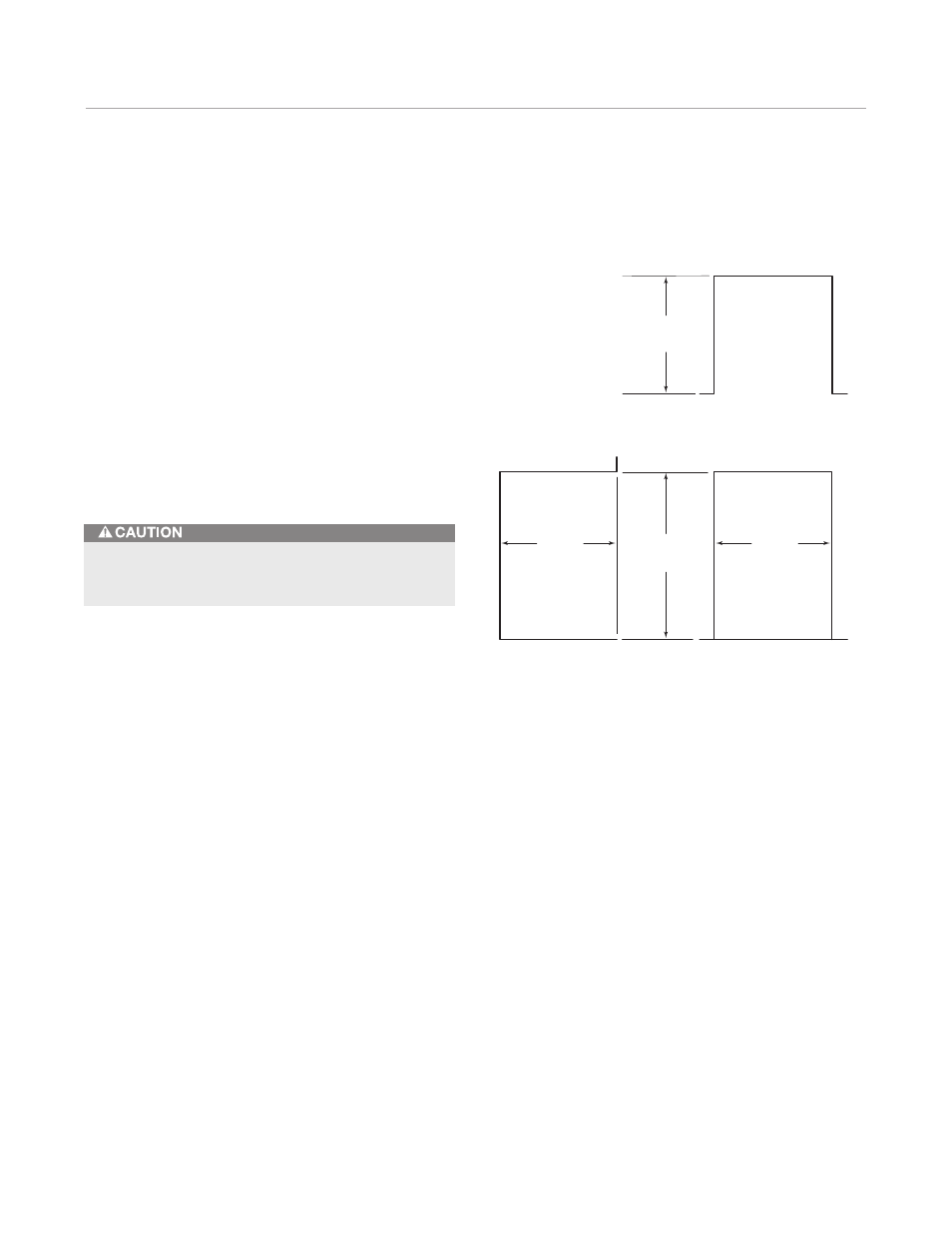

OPENING DIMENSIONS
24" (610)
OPENING WIDTH
24" (610)
OPENING
DEPTH
24" (610)
OPENING DEPTH
34 1 / 2 " (876)
OPENING
HEIGHT
TOP VIEW
FRONT VIEW SIDE VIEW
MODEL 424
Do not load wine into the wine storage unit until the
installation is complete.
