Door Panels
Models 427 and 427R have a full-view glass door. Each of
these wine storage units are set up at the job site as either
the stainless steel or integrated design.
Stainless steel panels are available as sales accessories
and are shipped separately. Stainless steel panels are
shipped with matching handles in place.
The integrated design uses custom wood or other decora-
tive panels and handles provided by the customer.
Model 427R requires solid panels on the drawers that may
match the door panel, or be complementary. The model
427R stainless steel drawer panel set and stainless steel
door panel are ordered and shipped as two items.
Before beginning installation, check for the correct com-
ponents for the fit and finish desired. The door and
drawers (model 427R) require a decorative panel that is a
minimum 5 / 8 " (16) thick.
IMPORTANT NOTE: For installations at or above 5,000'
(1524 m) in altitude, a special high altitude glass door unit
(HAG) must be ordered.
If you have questions, contact your authorized Sub-Zero
dealer or cabinet supplier. Additional panel information
can be found in the Sub-Zero design guide, or visit our
website at subzero.com.
Models 427 and 427R Installation 25
subzero.com
Kickplate/Grille
Once the unit is leveled and wiring connections made, the
kickplate/grille can be installed. The mounting bracket
may be adjusted slightly forward or back so the kickplate/
grille will fit flush with the surrounding area. Refer to the
illustration below.
The kickplate/grille must be removable for servicing. The
floor cannot interfere with removal.
IMPORTANT NOTE: The unit must be allowed to have
ventilation through the fins of the kickplate/grille. You may
cover the solid area, but do not block the fins. For model
427R, the lower drawer panel may hang in front of the fins,
but the baseboard molding must not cover them.
Turn power back on to the electrical outlet.
A solid panel cannot be installed over the glass door,
as this may cause moisture to form behind the panel.
MOUNTING
BRACKET

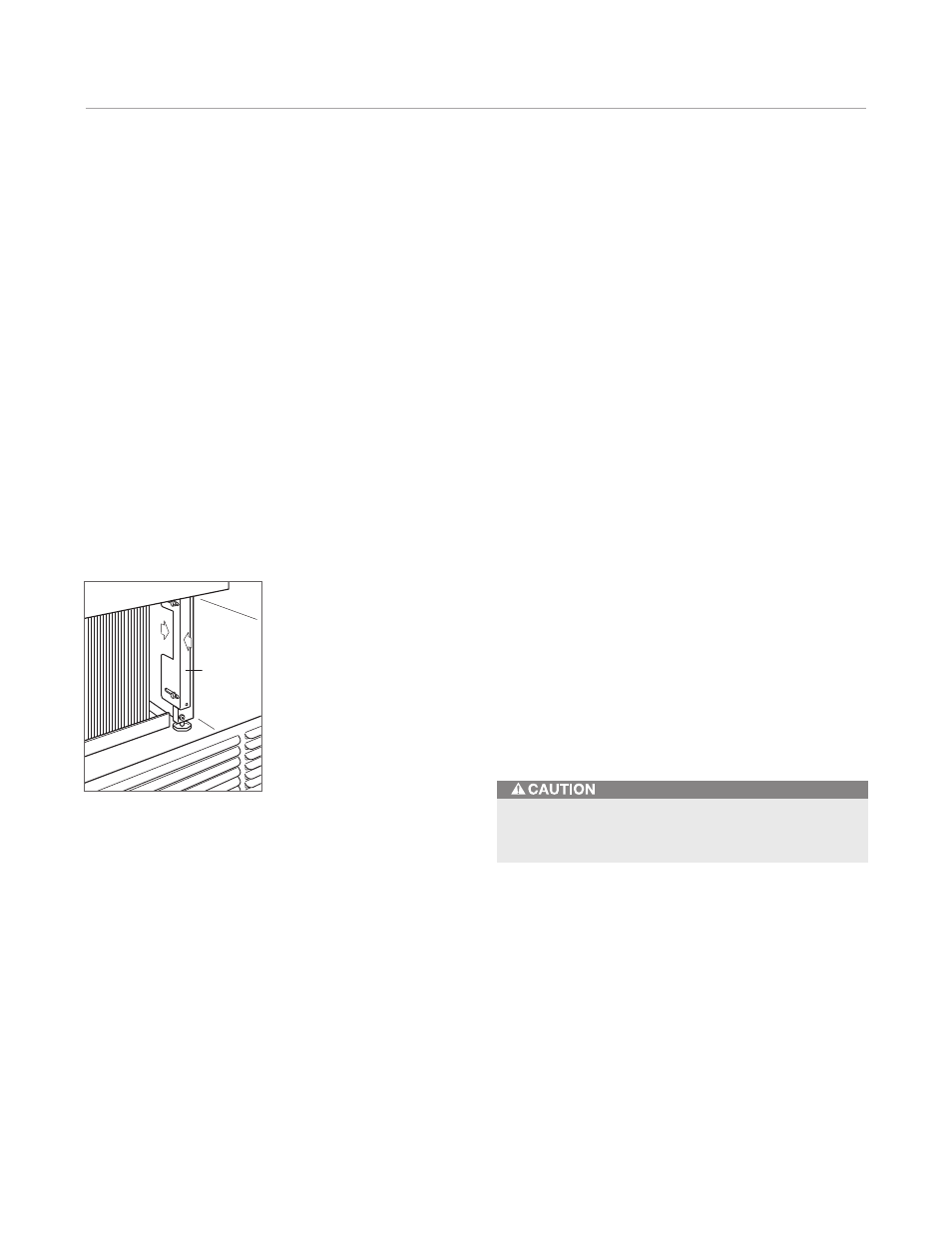

Kickplate/grille installation.
