FRAMED PANEL INSTALLATION

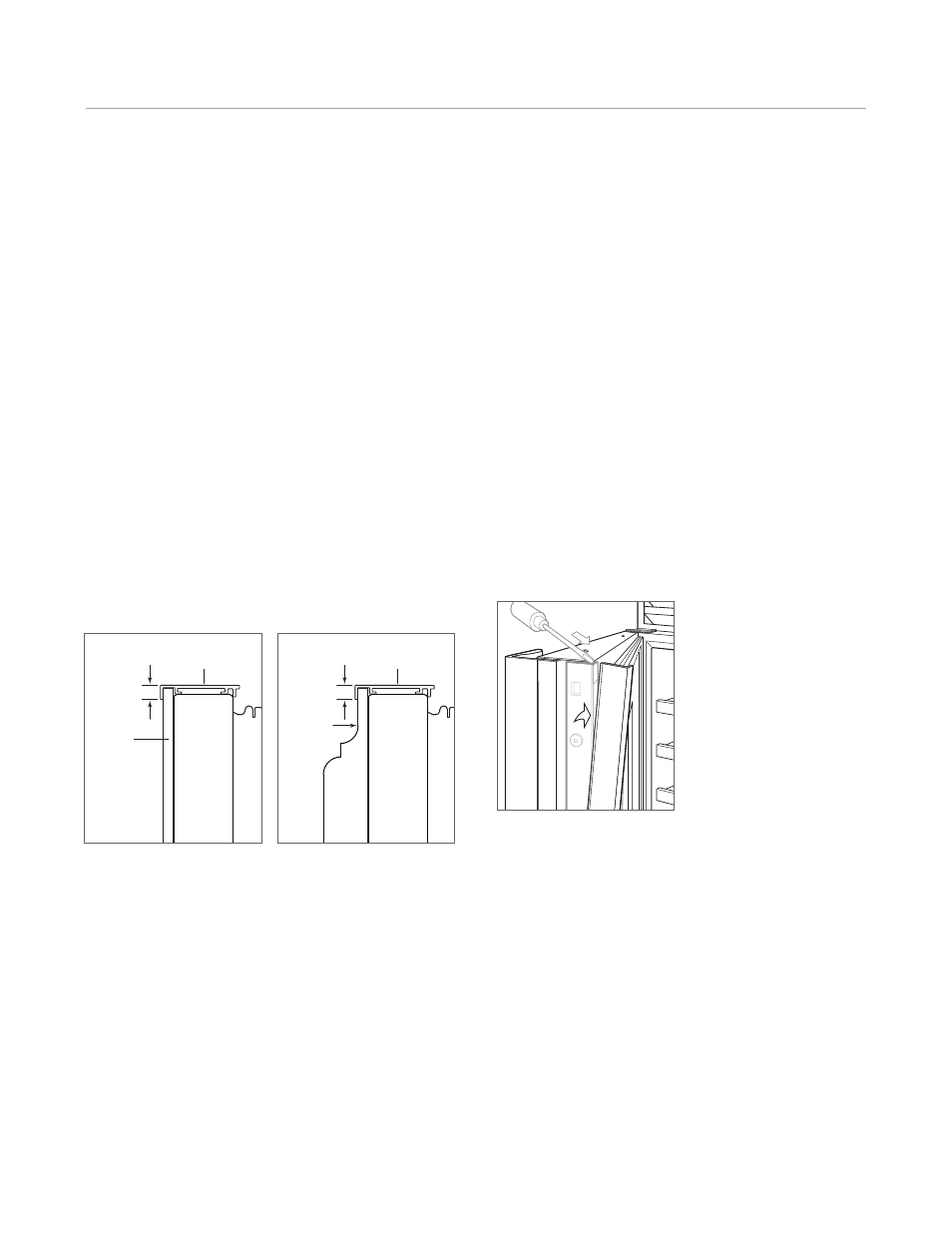

To install the framed panel, the door handle must be
removed. To install framed panels, first remove the door
trim molding. Insert a screwdriver tip into the top corner
slot on the handle side and pop out the trim molding.
Refer to the illustration below.
With a Phillips screwdriver, remove the handle. Slide the
panel into the frame on the door. With the panel in
position, replace the handle. Be sure the panel is inserted
completely into the channel for proper fit and alignment.
To reinstall the trim molding, insert the top of the trim
molding into the grooves at the top of the door and work
downward, snapping the trim molding into the clips on the
handle.
Model WS-30 Installation 44
Door trim.
Framed Panel
If your customer has chosen a framed design application,
make sure that the panel you are about to install matches
dimensions listed in the framed panel specifications on the
following page. Additional panel design information can be
found in the Sub-Zero design guide and on our website,
subzero.com.
If the thickness of the custom panel is less than a 1 / 4 " (6),
back it up with a sheet of shim material to build the total
thickness to a 1 / 4 " (6). If the panel is thicker than a 1 / 4 " (6),
rout an edge around the panel to achieve a proper fit.
Refer to the illustrations.
IMPORTANT NOTE: The weight of the framed panel must
not exceed 75 lbs (34 kg).
IMPORTANT NOTE: For model WS-30, routing, recessing
or optional extended handles may be required on raised
panels for finger clearance under the handle.
1 / 4 " (6)
PANEL
TRIM
REVEAL
1 / 4 " (6) min
DOOR
MAIN FRAME
Panels 1 / 4 " (6) thick or less. Panels thicker than 1 / 4 " (6).
TRIM
REVEAL
1 / 4 " (6) min
ROUT TO
1 / 4 " (6) DOOR
MAIN FRAME
