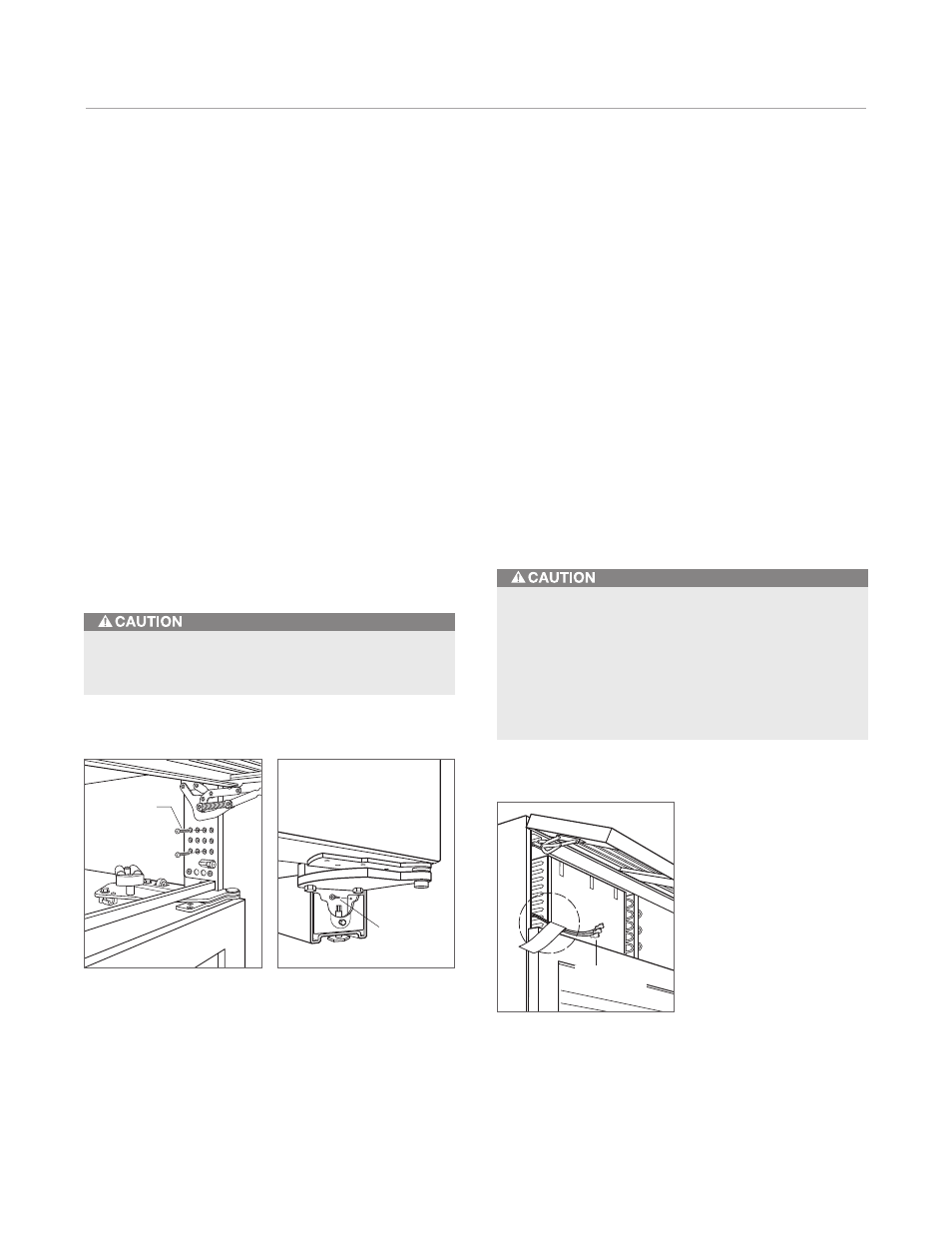

Home Alarm Connections

If a home alarm system is to be installed on the wine

storage unit, the connections should be made using the

logic supplied with the alarm specifications. Refer to the

illustration for the appliance lead locations, and refer to

the following for color codes:

Normally open contacts – white with red stripe wire

Normally closed contacts – white with blue stripe wire

Common – gray with white stripe wire

Use the

1

/

4

" (6) spade terminals or wire nuts provided to

make the proper wiring connections.

IMPORTANT NOTE:

If you are not responsible for alarm

system connection, this information should be supplied to

the home security system contractor.

Model WS-30 Installation

42

ANCHORING

SCREWS

Top anchoring.

Bottom anchoring.

ANCHORING

SCREW

Anchoring

After door and side panels have been installed, the unit

has been leveled and door adjustment completed, anchor

the wine storage unit to the opening. This will assure a

proper fit and a secure installation.

IMPORTANT NOTE:

Be sure to level and square the unit

before anchoring it.

To anchor the unit to cabinetry, open the grille, and install

the screws provided through the grille frame into the cabi-

netry. There are several hole locations provided. Check for

proper door clearance by fully opening the door. Refer to

the illustration below.

Next, drill a screw through the side hole inside the roller

base assembly. There is one on each side. The screw will

need to go in at an angle in order to attach properly.

In a flush inset application, additional material may be

needed behind the cleat to ensure sufficient anchoring.

If the screws provided are not suitable for your

application, you must provide adequate screws.

The alarm circuit in the unit is intended as a low-

voltage, low-current device only. It should not be used

to switch line power.

Any unused terminals should be completely insulated

and all wires should be secured away from conductive

or moving components.

HOME ALARM

CONNECTIONS

Home alarm connections.
