Model WS-30 Installation 37
subzero.com

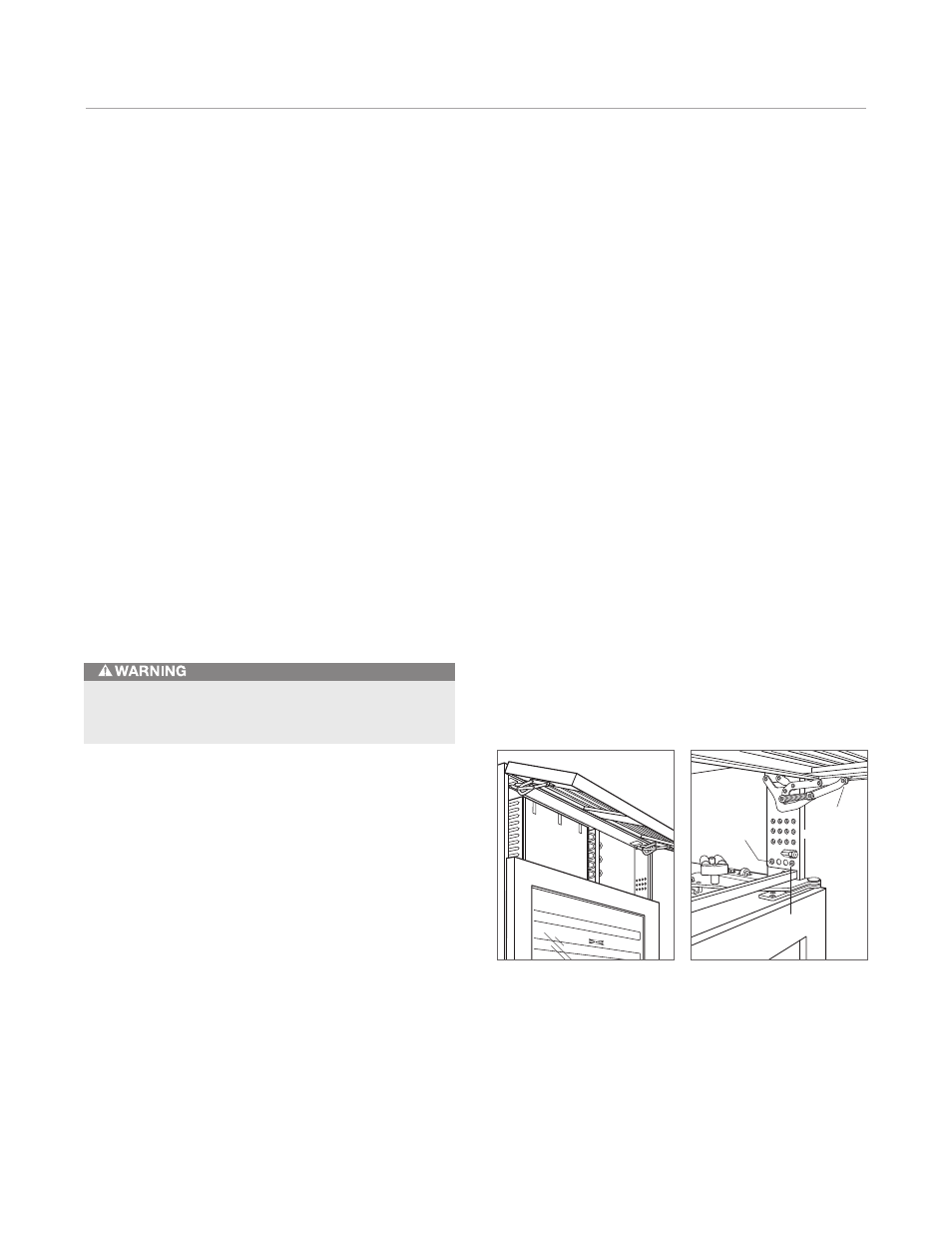

Grille removal. Grille mounting screws.
FRONT
GRILLE SCREW
BACK GRILLE
SCREW
LOCATION
OF GRILLE
ADJUSTMENT
SCREWS
Unpack the Unit
Uncrate the unit and inspect for any damages. Remove
the wood base and discard the shipping bolts and
brackets that hold the wood base to the bottom of the
unit. Remove and discard all packing materials.
IMPORTANT NOTE: Do not discard the kickplate, anti-tip
brackets and hardware. These items will be needed for
installation.
Retract the front leveling legs all the way up to allow the
unit to be moved into position more easily. You will extend
the leveling legs when the unit is in its final position to
reduce the possibility of the unit tipping forward.
IMPORTANT NOTE: The rear levelers must be in their
lowest position in order to push the unit back into the
rough opening. Therefore, leveling cannot be completed
until the unit is in position.
Remove the drain pan from the base of the unit to avoid
damage to the drain pan, and allow for proper placement
of the appliance dolly.
Be sure to secure the door closed before moving the
unit.
Grille Removal
In order to prevent damage to the grille and to access the
power cord, the top grille assembly should be removed
prior to moving the unit.
To remove the grille assembly, pull out on the bottom edge
of the grille and tilt upward. Loosen the back two grille
mounting screws and remove the front two grille mounting
screws. Refer to the illustrations below. With the grille held
firmly, pull forward to remove.
To reinstall the grille, insert the grille into position and be
sure that the grille catch tabs are engaged. Reinstall the
front two grille screws, then retighten the back two grille
screws. Check for proper fit.
GRILLE HEIGHT ADJUSTMENT
The grille was designed to rest on the upper door hinge
in an attempt to minimize the reveal between the top of
the door and bottom of the grille. To eliminate potential
interference of the grille and hinge, the grille height can be
adjusted. Loosen the four grille adjustment screws (two on
each side) and adjust the grille height as needed. For
screw location, refer to the illustration below.
