Model WS-30 Installation
50
5
/
8
"
(16)
5
5
/
16
"
(8)
1
/
2
"
(13)
FLUSH INSET PANEL
SPACER
BACKER
DOOR / DRAWER / GRILLE
TOP VIEW
S
CABINETRY
Illus. A
Illus. B
1
/
2
"
(13)
5
/
16
"
(8)
1
/
8
"
(3)
CABINETRY
GRILLE
SIDE VIEW
1
/
2
"
(13)
3
/
32
"
(2)
5
/
16
"
(8)
5
/
16
"
(8)
5
/
32
"
(4)
GRILLE
DOOR
SIDE VIEW
Illus. C
Illus. D
5
/
16
"
(8)
3
/
32
"
(2)
DOOR /
DRAWER
SIDE VIEW
Panel Offsets
Illus.
MODEL WS-30
Door / Grille Sides
A
Grille Top
B
Grille Bottom / Door Top
C
Door Bottom
D
Flush Inset Panel

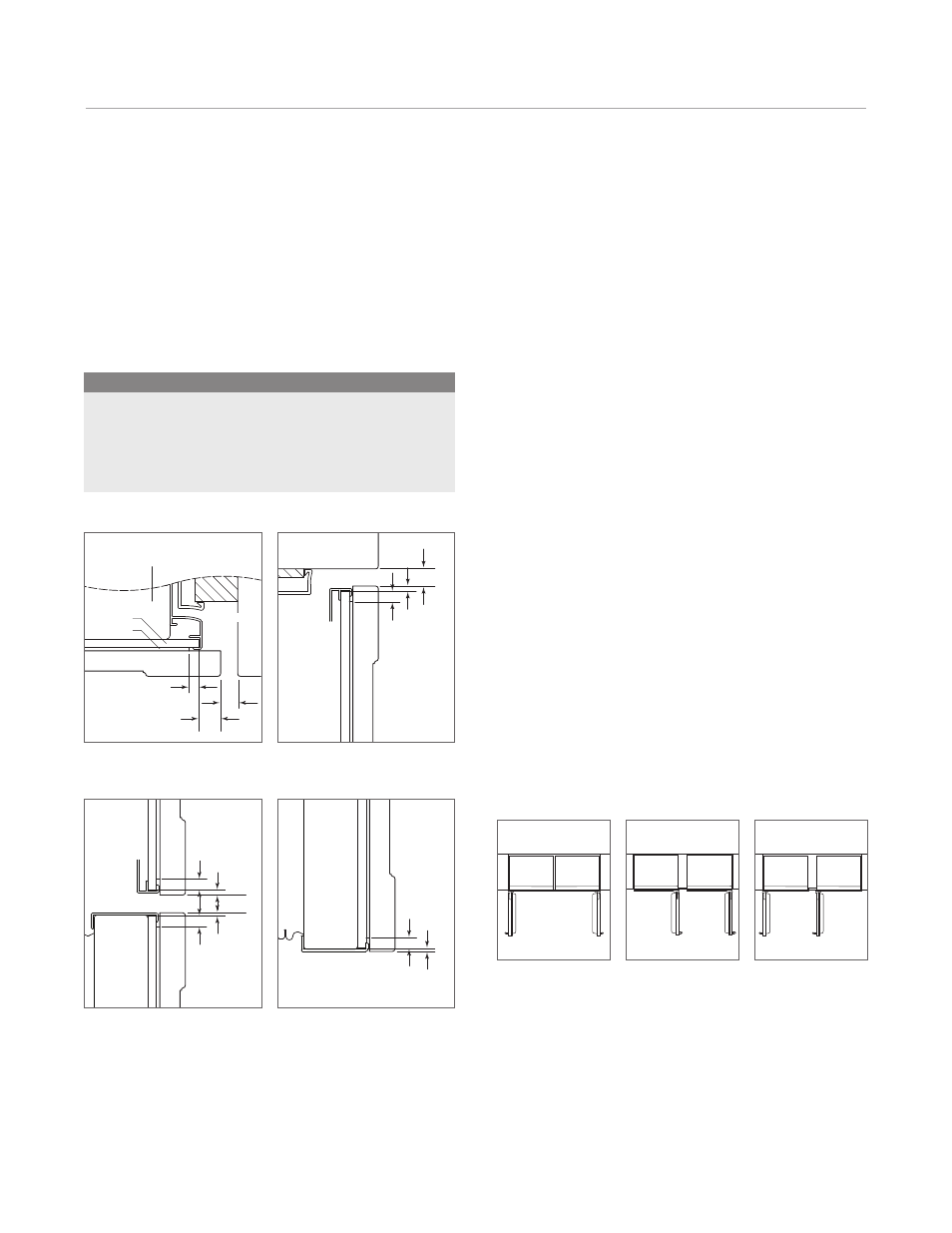

Illustrations A–D provide panel offsets and reveals for
model WS-30 in a flush inset application. Refer to the
chart below for reference to the illustrations.
For additional information on panel reveals, visit the speci-
fication library section of our website, subzerotrade.com.
Dual Installations
When two models WS-30 or a model WS-30 and built-in
unit are installed side by side, a dual installation kit may
be required. Contact your authorized Sub-Zero dealer for
the proper components and installation instructions. For
questions relative to the installation, call Sub-Zero at
800-222-7820. To obtain local dealer information, visit the
showroom locator section of our website, subzero.com.
DUAL STANDARD INSTALLATIONS
Two framed, overlay or stainless steel units may be placed
side by side in a dual installation. Some dual standard
installations will require a dual installation kit, available
through your authorized Sub-Zero dealer.
A custom filler strip can be used in between two units in a
framed, overlay or stainless steel design application. It is
recommended that the filler strip be at least 2" (51) wide,
to prevent condensation between the units. Be sure to add
the filler strip width to your rough opening width.
Dual installations without a filler strip can only be accom-
plished using two units with opposite hinges as shown in
illustration A below. The dual installations shown in illus-
trations B and C require a filler strip.
IMPORTANT NOTE:
For the application shown in illustra-
tion A, a dual installation accessory kit is required.
Illus. A
WITHOUT FILLER STRIP
W
FILLER STRIP REQUIRED
FILLER STRIP REQUIRED
Illus. B
Illus. C
